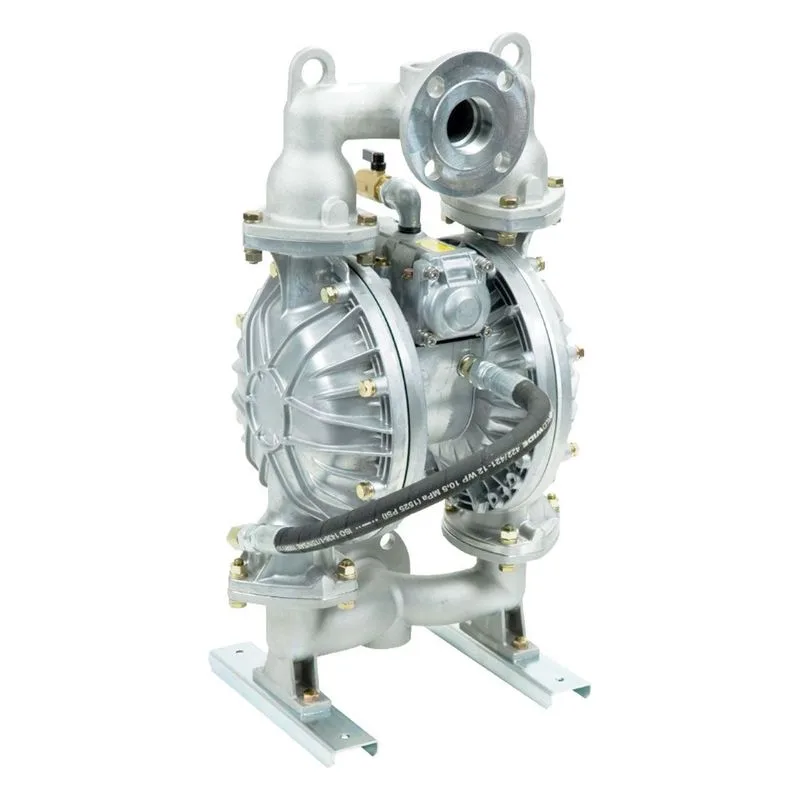

Image shown may not be actual product
NDP-50BFS-HP
Yamada America NDP-50BFS-HP NDP-50 Series 2:1 High Pressure Air Operated Double Diaphragm Pump, Model Number 852843-HP. Cast Iron Body, Santoprene Diaphragm & Balls, EPDM O-Rings, Aluminum Air Motor. 2" FNPT Inlet & Outlet, 82 GPM Flow Rate, 180 PSI, Passes up to 5/16" (8mm) Solids.
$3,955.00
- Best Price Guarantee!
- 791PumpPoints
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Series Info
- Reviews
- Literature/Manuals
- Repair Parts
NDP-50BFS-HP
Yamada America NDP-50BFS-HP NDP-50 Series 2:1 High Pressure Air Operated Double Diaphragm Pump, Model Number 852843-HP. Cast Iron Body, Santoprene Diaphragm & Balls, EPDM O-Rings, Aluminum Air Motor. 2" FNPT Inlet & Outlet, 82 GPM Flow Rate, 180 PSI, Passes up to 5/16" (8mm) Solids.
| Air Exhaust | 1" Female NPT (includes silencer) |
| Air Inlet | 3/4" Female NPT (includes ball valve) |
| Air Supply Pressure | 180 PSI |
| Connection Type | FNPT |
| Diaphragm | Santoprene (TPO) |
| Discharge NPT (Inches) | 2" |
| Discharge Volume Per Cycle | 1.12 Gallons |
| Fluid Port | 2" |
| Liquid Temperature | 180°F (82°C) |
| Material | Cast Iron |
| Max Cycles Per Minute | 146 |
| Maximum Flow (GPM) | 82 |
| Max Suction Lift | 19' |
| Model Number | 852843-HP |
| Model Series | NDP-50 |
| Motor | Aluminum |
| Product Notes | 2:1 High Pressure |
| Solids (Inches) | 5/16" (8mm) |
| Suction NPT (Inches) | 2" |
| Valve Balls | Santoprene (TPO) |
| Valve / Seat / O-Ring | EPDM O-Rings |
| Valve Type | Ball |
NDP-50 / NDP-500 Series Information
| Features & Benefits |
|---|
| Port Dimensions Intake & discharge connection: Polypropylene (PPG) 2" ANSI B16.5 #150 Kynar® (PVDF) 2" ANSI B16.5 #150 Aluminum (ADC-12) 2" ANSI B16.5 #150 (with tapped 2" Female NPT) Stainless Steel (316) 2" ANSI B16.5 #150 or 2" Female NPT Cast Iron 2" Female NPT Air inlet (incl. ball valve): 3/4" Female NPT Air exhaust (incl. silencer): 1" Female NPT Maximum Liquid Temperature* Diaphragm Material Temperature Buna N 180°F (82°C) Neoprene 180°F (82°C) Santoprene® (TPO) 180°F (82°C) EPDM 212°F (100°C) PTFE 212°F (100°C) Hytrel® (TPEE) 248°F (120°C) Viton® fluoroelastomer 248°F (120°C) * The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material. |
Categories
Aerospace
641 productsAutomotive
641 productsChemical Delivery / Transfer
641 productsGas & Petroleum
641 productsMining
641 productsPaints & Dyes
666 productsPrinting & Ink
666 productsStone / Clay / Glass
641 productsWashing / Cleaning Systems
662 productsWater Treatment
641 products
Repair Parts for NDP-50BFS-HP
| Product | qty. | shipping | price | ||
|---|---|---|---|---|---|
 | 713157 | Ships in 1-2 Weeks | $569.00 | ||
| 713157-HP | Call for Shipping | ||||
 | 713169 | Ships in 1-2 Weeks | $470.00 | ||
 | 713166 | Ships in 1-2 Weeks | $470.00 | ||
 | 803112-HP | Ships in | $935.00 | ||
 | 711934 | Ships in 1-2 Weeks | $201.00 | ||
| 711936-HP | Ships in 1-2 Weeks | $388.00 | ||
 | 772689 | Ships in 1-2 Weeks | $39.00 | ||
 | 711937 | Ships in 1-2 Weeks | $10.00 | ||
 | 771740 | Ships in 1-2 Weeks | $10.00 | ||
 | 832162 | Ships in 1-2 Weeks | $27.00 | ||
 | 640020 | Ships in 1-2 Weeks | $7.00 | ||
 | 685444 | Ships in 1-2 Weeks | $12.00 | ||
 | 640029 | Ships in 1-2 Weeks | $7.00 | ||
 | 771742 | Ships in 1-2 Weeks | $33.00 | ||
 | 683812 | Ships in 1-2 Weeks | $7.00 | ||
 | 802971 | Ships in 1-2 Weeks | $511.00 | ||
 | 711931 | Ships in 1-2 Weeks | $326.00 | ||
 | 580999 | Ships in 1-2 Weeks | $33.00 | ||
 | 581000 | Ships in 1-2 Weeks | $33.00 | ||
 | 771735 | Ships in 1-2 Weeks | $11.00 | ||
 | 712976 | Ships in 1-2 Weeks | $25.00 | ||
 | 771738 | Ships in 1-2 Weeks | $11.00 | ||
| 685036 | Ships in 1-2 Weeks | $10.00 | ||
 | 805084 | Ships in 1-2 Weeks | $156.00 | ||
 | 803675 | Ships in 1-2 Weeks | $70.00 | ||
 | 640005 | Ships in 1-2 Weeks | $7.00 | ||
 | 684128 | Ships in 1-2 Weeks | $7.00 | ||
 | 771712 | Ships in 1-2 Weeks | $25.00 | ||
 | 684240 | Ships in 1-2 Weeks | $10.00 | ||
 | 684987 | Ships in 1-2 Weeks | $7.00 | ||
 | 711900 | Ships in 1-2 Weeks | $113.00 | ||
 | 711904 | Ships in 1-2 Weeks | $133.00 | ||
 | 713370 | Ships in 1-2 Weeks | $151.00 | ||
 | 771976 | Ships in 1-2 Weeks | $110.00 | ||
 | 772004 | Ships in 1-2 Weeks | $14.00 | ||
 | 711909-HP | Ships in 1-2 Weeks | $197.00 | ||
 | 770633 | Ships in 1-2 Weeks | $29.00 | ||
 | 686974 | Ships in | $53.00 | ||
| 682523 | Ships in 1-2 Weeks | $10.00 | ||
| 711928 | Ships in 1-2 Weeks | $68.00 | ||
 | 771402 | Ships in 1-2 Weeks | $8.00 | ||
 | 683408 | Ships in 1-2 Weeks | $33.00 | ||
 | 682740 | Ships in 1-2 Weeks | $7.00 | ||
| 686160 | Ships in 1-2 Weeks | $7.00 | ||
| 631917 | Ships in 1-2 Weeks | $7.00 | ||
| 631014 | Ships in 1-2 Weeks | $7.00 | ||
| 631917 | Ships in 1-2 Weeks | $7.00 | ||
| 611202 | Ships in 1-2 Weeks | $7.00 | ||
| 631015 | Ships in 1-2 Weeks | $7.00 | ||
| 631918 | Ships in 1-2 Weeks | $7.00 | ||
| 627014 | Ships in 1-2 Weeks | $7.00 | ||
| 611175 | Ships in 1-2 Weeks | $7.00 | ||
| 627013 | Ships in 1-2 Weeks | $7.00 | ||
| 611149 | Ships in 1-2 Weeks | $7.00 | ||
| 682276 | Ships in 1-2 Weeks | $7.00 | ||
 | 684122 | Ships in 1-2 Weeks | $10.00 | ||
 | 770582 | Ships in 1-2 Weeks | $14.00 | ||
 | K45-AM | Ships in 1-2 Weeks | $423.00 | ||
