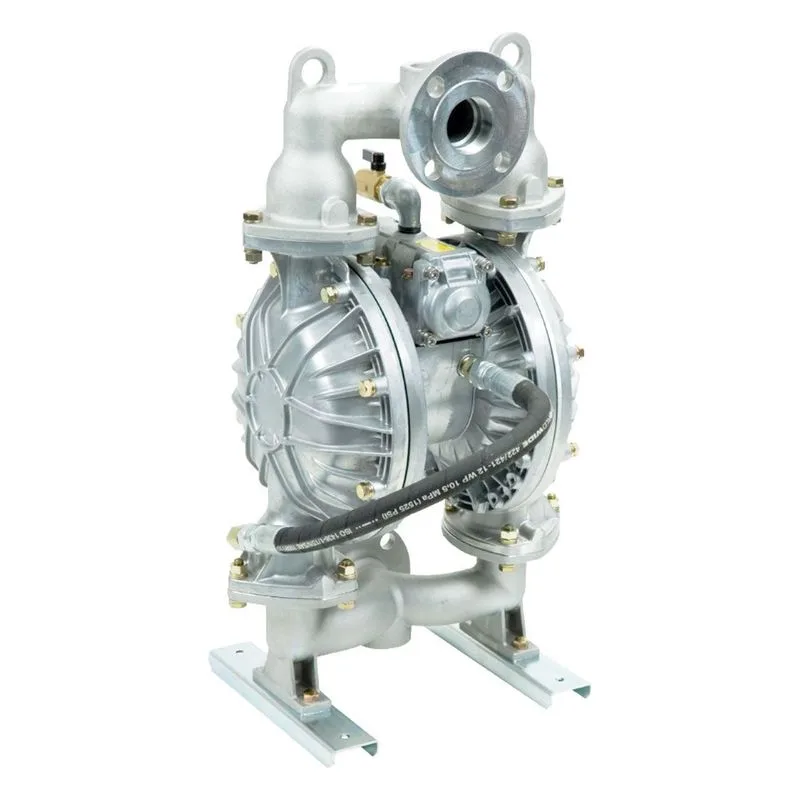

Yamada 852424-HP 2:1 High Pressure AODD Pump NDP-50BAE-HP

NDP-50 Series Information

Features & Benefits
Port Dimensions Intake & discharge connection: Polypropylene (PPG) 2" ANSI B16.5 #150 Kynar® (PVDF) 2" ANSI B16.5 #150 Aluminum (ADC-12) 2" ANSI B16.5 #150 (with tapped 2" Female NPT) Stainless Steel (316) 2" ANSI B16.5 #150 or 2" Female NPT Cast Iron 2" Female NPT Air inlet (incl. ball valve): 3/4" Female NPT Air exhaust (incl. silencer): 1" Female NPT Maximum Liquid Temperature* Diaphragm Material Temperature Buna N 180°F (82°C) Neoprene 180°F (82°C) Santoprene® (TPO) 180°F (82°C) EPDM 212°F (100°C) PTFE 212°F (100°C) Hytrel® (TPEE) 248°F (120°C) Viton® fluoroelastomer 248°F (120°C) * The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material.

Features & Benefits

Port Dimensions
Intake & discharge connection:
Polypropylene (PPG) 2" ANSI B16.5 #150
Kynar® (PVDF) 2" ANSI B16.5 #150
Aluminum (ADC-12) 2" ANSI B16.5 #150
(with tapped 2" Female NPT)
Stainless Steel (316) 2" ANSI B16.5 #150
or 2" Female NPT
Cast Iron 2" Female NPT
Air inlet (incl. ball valve): 3/4" Female NPT
Air exhaust (incl. silencer): 1" Female NPT

Maximum Liquid Temperature*
Diaphragm Material Temperature
Buna N 180°F (82°C)
Neoprene 180°F (82°C)
Santoprene® (TPO) 180°F (82°C)
EPDM 212°F (100°C)
PTFE 212°F (100°C)
Hytrel® (TPEE) 248°F (120°C)
Viton® fluoroelastomer 248°F (120°C)

* The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material.

Air Inlet	3/4" FNPT
Air Supply Pressure	20 - 100 PSI (1.4 - 7 kfg/cm)
Diaphragm	EPDM
Discharge NPT (Inches)	2" ANSI Flange with tapped FNPT
Discharge Volume Per Cycle	1.12 gallons (4.25 liters)
Fluid Port	2"
Material	Aluminum
Max Suction Lift	19'

Model Number	852424-HP
Motor	Aluminum
Solids (Inches)	5/16" (8mm)
Suction NPT (Inches)	2" ANSI Flanged with tapped FNPT
Type	Ball Valve
Valve Balls	EPDM
Valve / Seat / O-Ring	EPDM

Type	Title		Link
	Yamada Pumps NDP-50FAN Pump Brochure		View
	Yamada Pumps NDP-50 Pump Manual		View
	Yamada Pumps NDP-50 Pump Specifications		View
	NDP-50 Operation Manual		View
	NDP-50BAE-HP High Pressure 2:1 Diaphragm Series Repair Parts		View
