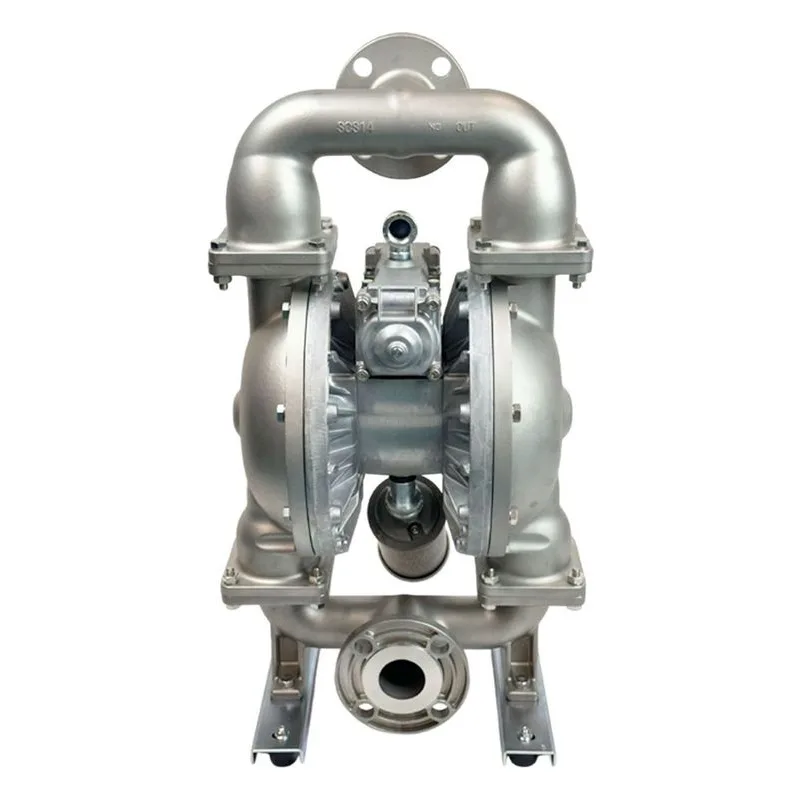

Image shown may not be actual product
NDP-500BST
Yamada NDP-500BST NDP500 Series Stainless Steel Air Operated Double Diaphragm Pump, Model 855393. 2" ANSI Flange Suction & Discharge Connections, PTFE Diaphragms & PTFE Valve Balls. 226 GPM Maximum Flow, 19.5 Feet Max Suction Lift, Passes up to 5/16" Solids. Repair Kit K50-MT Available.
$7,500.00
- Best Price Guarantee!
- 1500PumpPoints
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Series Info
- Reviews
- Literature/Manuals
- Repair Parts
NDP-500BST
Yamada NDP-500BST NDP500 Series Stainless Steel Air Operated Double Diaphragm Pump, Model 855393. 2" ANSI Flange Suction & Discharge Connections, PTFE Diaphragms & PTFE Valve Balls. 226 GPM Maximum Flow, 19.5 Feet Max Suction Lift, Passes up to 5/16" Solids. Repair Kit K50-MT Available.
| Air Supply Pressure | 20-125 PSI |
| Diaphragm | PTFE |
| Discharge NPT (Inches) | 2" ANSI Flange |
| Material | 316 Stainless Steel |
| Maximum Flow (GPM) | 226 GPM |
| Max Suction Lift | 19.5 Feet |
| Model Number | 855393 |
| Motor | Aluminum |
| Solids (Inches) | 5/16" |
| Suction NPT (Inches) | 2" ANSI Flange |
| Valve Balls | PTFE |
NDP-50 / NDP-500 Series Information
| Features & Benefits |
|---|
| Port Dimensions Intake & discharge connection: Polypropylene (PPG) 2" ANSI B16.5 #150 Kynar® (PVDF) 2" ANSI B16.5 #150 Aluminum (ADC-12) 2" ANSI B16.5 #150 (with tapped 2" Female NPT) Stainless Steel (316) 2" ANSI B16.5 #150 or 2" Female NPT Cast Iron 2" Female NPT Air inlet (incl. ball valve): 3/4" Female NPT Air exhaust (incl. silencer): 1" Female NPT Maximum Liquid Temperature* Diaphragm Material Temperature Buna N 180°F (82°C) Neoprene 180°F (82°C) Santoprene® (TPO) 180°F (82°C) EPDM 212°F (100°C) PTFE 212°F (100°C) Hytrel® (TPEE) 248°F (120°C) Viton® fluoroelastomer 248°F (120°C) * The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material. |
Categories
Aerospace
641 productsAutomotive
641 productsChemical Delivery / Transfer
641 productsGas & Petroleum
641 productsMining
641 productsPaints & Dyes
666 productsPrinting & Ink
666 productsStone / Clay / Glass
641 productsWashing / Cleaning Systems
662 productsWater Treatment
641 products
Repair Parts for NDP-500BST
| Product | qty. | shipping | price | ||
|---|---|---|---|---|---|
 | K50-MT | Ships in 1-2 Weeks | $1,141.00 | ||
| 714449 | Call for Shipping | ||||
 | 717450 | Ships in | $1,618.00 | ||
| 717452 | Ships in | $1,653.00 | ||
 | 803112 | Ships in 1-2 Weeks | $845.00 | ||
 | 711934 | Ships in 1-2 Weeks | $201.00 | ||
 | 711936 | Ships in 1-2 Weeks | $301.00 | ||
 | 780325 | Ships in | $53.00 | ||
 | 711937 | Ships in 1-2 Weeks | $10.00 | ||
 | 771740 | Ships in 1-2 Weeks | $10.00 | ||
 | 832162 | Ships in 1-2 Weeks | $27.00 | ||
 | 640020 | Ships in 1-2 Weeks | $7.00 | ||
 | 685444 | Ships in 1-2 Weeks | $12.00 | ||
 | 640029 | Ships in 1-2 Weeks | $7.00 | ||
 | 771742 | Ships in 1-2 Weeks | $33.00 | ||
 | 683812 | Ships in 1-2 Weeks | $7.00 | ||
 | 802971 | Ships in 1-2 Weeks | $511.00 | ||
 | 711931 | Ships in 1-2 Weeks | $326.00 | ||
 | 580999 | Ships in 1-2 Weeks | $33.00 | ||
 | 581000 | Ships in 1-2 Weeks | $33.00 | ||
 | 771735 | Ships in 1-2 Weeks | $11.00 | ||
 | 712976 | Ships in 1-2 Weeks | $25.00 | ||
 | 771738 | Ships in 1-2 Weeks | $11.00 | ||
 | 685036 | Ships in 1-2 Weeks | $10.00 | ||
 | 805084 | Ships in 1-2 Weeks | $156.00 | ||
 | 640005 | Ships in 1-2 Weeks | $7.00 | ||
 | 684128 | Ships in 1-2 Weeks | $7.00 | ||
 | 771712 | Ships in 1-2 Weeks | $25.00 | ||
 | 684240 | Ships in 1-2 Weeks | $10.00 | ||
 | 684987 | Ships in 1-2 Weeks | $7.00 | ||
 | 711939 | Ships in 1-2 Weeks | $113.00 | ||
| 707822 | Ships in 1-2 Weeks | $96.00 | ||
| 707823 | Ships in 1-2 Weeks | $192.00 | ||
 | 770815 | Ships in 1-2 Weeks | $292.00 | ||
 | 711909 | Ships in 1-2 Weeks | $113.00 | ||
 | 770693 | Ships in 1-2 Weeks | $102.00 | ||
 | 686974 | Ships in | $53.00 | ||
| 682523 | Ships in 1-2 Weeks | $10.00 | ||
| 711928 | Ships in 1-2 Weeks | $68.00 | ||
 | 771402 | Ships in 1-2 Weeks | $8.00 | ||
 | 706128 | Ships in 1-2 Weeks | $53.00 | ||
 | 682740 | Ships in 1-2 Weeks | $7.00 | ||
 | 621180 | Ships in 1-2 Weeks | $10.00 | ||
| 631174 | Ships in 1-2 Weeks | $7.00 | ||
| 631937 | Ships in 1-2 Weeks | $6.00 | ||
| 621175 | Ships in 1-2 Weeks | $7.00 | ||
| 687295 | Ships in | $8.00 | ||
| 611149 | Ships in 1-2 Weeks | $7.00 | ||
| 682276 | Ships in 1-2 Weeks | $7.00 | ||
 | 643069 | Ships in 1-2 Weeks | $22.00 | ||
 | 643015 | Ships in 1-2 Weeks | $8.00 | ||
| 685716 | Call for Shipping | ||||
| 685700 | Call for Shipping | ||||
 | 643139 | Ships in 1-2 Weeks | $26.00 | ||
| K500-MT | Call for Shipping | ||||
 | K45-AM | Ships in 1-2 Weeks | $423.00 | ||
