NDP-500BSE

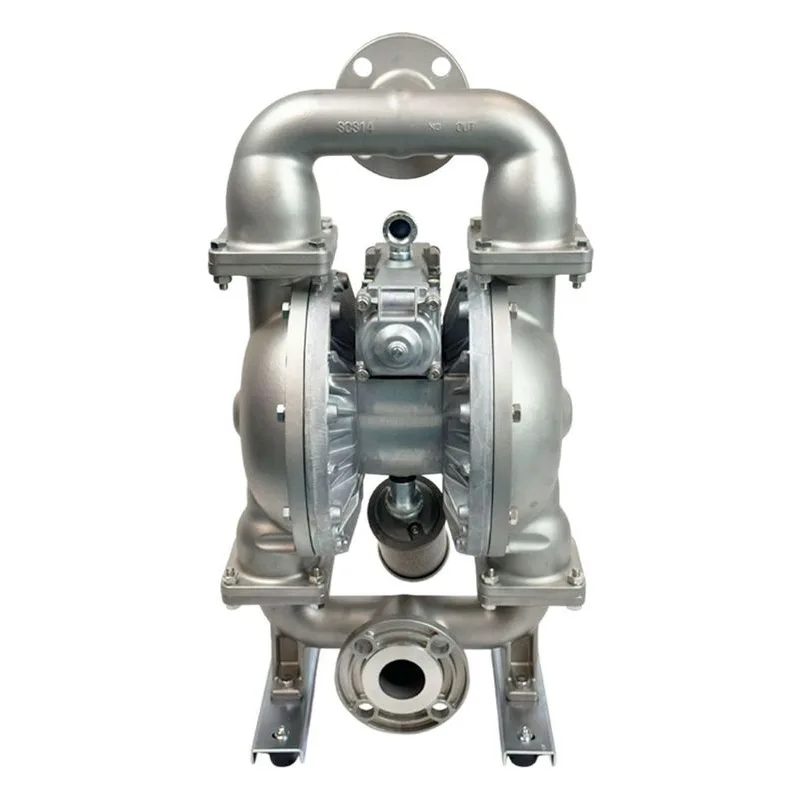

Image shown may not be actual product

NDP-500BSE

0 reviews

Yamada NDP-500BSE NDP500 Series Stainless Steel Air Operated Double Diaphragm Pump, Model 855391. 2" ANSI Flange Suction & Discharge Connections, Nordel Diaphragms & Nordel Valve Balls. 226 GPM Maximum Flow, 19.5 Feet Max Suction Lift, Passes up to 5/16" Solids. Repair Kit K50-ME Available.

$6,750.00

Best Price Guarantee!
1350PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: NDP-500BSE | Model #: 855391

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

NDP-500BSE

Air Supply Pressure	20-125 PSI
Diaphragm	Nordel
Discharge NPT (Inches)	2" ANSI Flange
Material	316 Stainless Steel
Maximum Flow (GPM)	226 GPM
Max Suction Lift	19.5 Feet

Model Number	855391
Motor	Aluminum
Solids (Inches)	5/16"
Suction NPT (Inches)	2" ANSI Flange
Valve Balls	Nordel

NDP-50 / NDP-500 Series Information

Features & Benefits
Port Dimensions Intake & discharge connection: Polypropylene (PPG) 2" ANSI B16.5 #150 Kynar® (PVDF) 2" ANSI B16.5 #150 Aluminum (ADC-12) 2" ANSI B16.5 #150 (with tapped 2" Female NPT) Stainless Steel (316) 2" ANSI B16.5 #150 or 2" Female NPT Cast Iron 2" Female NPT Air inlet (incl. ball valve): 3/4" Female NPT Air exhaust (incl. silencer): 1" Female NPT Maximum Liquid Temperature* Diaphragm Material Temperature Buna N 180°F (82°C) Neoprene 180°F (82°C) Santoprene® (TPO) 180°F (82°C) EPDM 212°F (100°C) PTFE 212°F (100°C) Hytrel® (TPEE) 248°F (120°C) Viton® fluoroelastomer 248°F (120°C) * The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material.

Features & Benefits

Port Dimensions
Intake & discharge connection:
Polypropylene (PPG) 2" ANSI B16.5 #150
Kynar® (PVDF) 2" ANSI B16.5 #150
Aluminum (ADC-12) 2" ANSI B16.5 #150
(with tapped 2" Female NPT)
Stainless Steel (316) 2" ANSI B16.5 #150
or 2" Female NPT
Cast Iron 2" Female NPT
Air inlet (incl. ball valve): 3/4" Female NPT
Air exhaust (incl. silencer): 1" Female NPT

Maximum Liquid Temperature*
Diaphragm Material Temperature
Buna N 180°F (82°C)
Neoprene 180°F (82°C)
Santoprene® (TPO) 180°F (82°C)
EPDM 212°F (100°C)
PTFE 212°F (100°C)
Hytrel® (TPEE) 248°F (120°C)
Viton® fluoroelastomer 248°F (120°C)

* The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material.

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	Yamada Pumps NDP-50FAN Pump Brochure		View
	NDP 500 Technical Bulitin & Comparisons		View
	NDP 500 Series Specifications & Pump Curves		View
	Yamada Pumps NDP-50 Pump Manual		View
	Yamada Pumps NDP-50 Pump Specifications		View
	NDP-50 Operation Manual		View
	NDP-500BSE / 855391 Pump Repair Parts		View

Repair Parts for NDP-500BSE

Product		shipping	price
	K50-ME	Ships in 1-2 Weeks	$403.00	Select item
714449			Call for Shipping
	717450	Ships in	$1,618.00	Select item
	717452	Ships in	$1,653.00	Select item
	803112	Ships in 1-2 Weeks	$845.00	Select item
	711934	Ships in 1-2 Weeks	$201.00	Select item
	711936	Ships in 1-2 Weeks	$301.00	Select item
	780325	Ships in	$53.00	Select item
	711937	Ships in 1-2 Weeks	$10.00	Select item
	771740	Ships in 1-2 Weeks	$10.00	Select item
	832162	Ships in 1-2 Weeks	$27.00	Select item
	640020	Ships in 1-2 Weeks	$7.00	Select item
	685444	Ships in 1-2 Weeks	$12.00	Select item
	640029	Ships in 1-2 Weeks	$7.00	Select item
	771742	Ships in 1-2 Weeks	$33.00	Select item
	683812	Ships in 1-2 Weeks	$7.00	Select item
	802971	Ships in 1-2 Weeks	$511.00	Select item
	711931	Ships in 1-2 Weeks	$326.00	Select item
	580999	Ships in 1-2 Weeks	$33.00	Select item
	581000	Ships in 1-2 Weeks	$33.00	Select item
	771735	Ships in 1-2 Weeks	$11.00	Select item
	712976	Ships in 1-2 Weeks	$25.00	Select item
	771738	Ships in 1-2 Weeks	$11.00	Select item
	685036	Ships in 1-2 Weeks	$10.00	Select item
	805084	Ships in 1-2 Weeks	$156.00	Select item
	640005	Ships in 1-2 Weeks	$7.00	Select item
	684128	Ships in 1-2 Weeks	$7.00	Select item
	771712	Ships in 1-2 Weeks	$25.00	Select item
	684240	Ships in 1-2 Weeks	$10.00	Select item
	684987	Ships in 1-2 Weeks	$7.00	Select item
	711900	Ships in 1-2 Weeks	$113.00	Select item
	711904	Ships in 1-2 Weeks	$133.00	Select item
	717438	Ships in	$270.00	Select item
	771856	Ships in 1-2 Weeks	$111.00	Select item
	771949	Ships in 1-2 Weeks	$14.00	Select item
	770633	Ships in 1-2 Weeks	$29.00	Select item
	686974	Ships in	$53.00	Select item
	682523	Ships in 1-2 Weeks	$10.00	Select item
	711928	Ships in 1-2 Weeks	$68.00	Select item
	771402	Ships in 1-2 Weeks	$8.00	Select item
	621180	Ships in 1-2 Weeks	$10.00	Select item
	631174	Ships in 1-2 Weeks	$7.00	Select item
	631937	Ships in 1-2 Weeks	$6.00	Select item
	621175	Ships in 1-2 Weeks	$7.00	Select item
	687295	Ships in	$8.00	Select item
	611149	Ships in 1-2 Weeks	$7.00	Select item
	682276	Ships in 1-2 Weeks	$7.00	Select item
	684122	Ships in 1-2 Weeks	$10.00	Select item
685716			Call for Shipping
685700			Call for Shipping
	770582	Ships in 1-2 Weeks	$14.00	Select item
K500-ME			Call for Shipping
	K45-AM	Ships in 1-2 Weeks	$423.00	Select item
