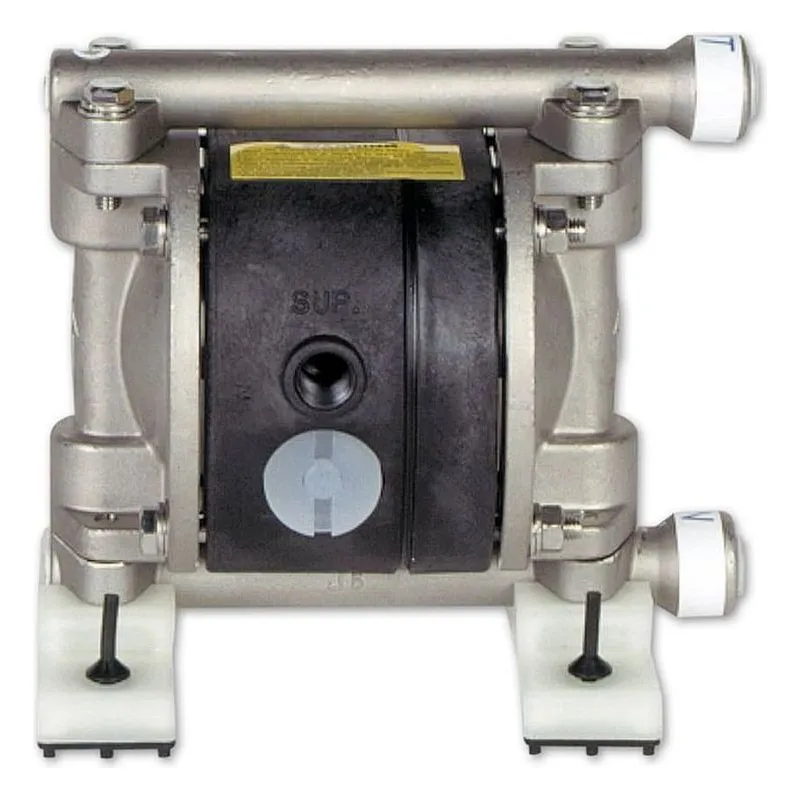

Image shown may not be actual product

NDP-5FST

0 reviews

Yamada Pumps NDP-5FST Type, Model 851565 NDP-5 Series, Air Operated Double Diaphragm Pump, PTFE Diaphragm, PTFE Flat Check Valve / O-Rings, Stainless Steel (316) Material, 3.4 GPM Max Flow, 1/4" NPT Fluid Port, 1/4" Female NPT (includes ball valve) Air Inlet, 3/8" Female NPT (includes silencer) Air Exhaust, Ryton® Air Motor, 5 Feet Max Suction Lift

$529.30

Best Price Guarantee!
105PumpPoints

Item: NDP-5FST | Model #: 851565

Overview
Series Info
Reviews
Literature/Manuals

NDP-5FST

Actual Weight	5
Air Exhaust	3/8" Female NPT (includes silencer)
Air Inlet	1/4" Female NPT (includes ball valve)
Air Supply Pressure	20 to 100 PSI (1.4 to 7 kgf/cm²)
Diaphragm	PTFE
Discharge Volume Per Cycle	0.0085 gallons (35 cc)
Fluid Port	1/4" NPT
Liquid Temperature	212°F (100°C) Max
Material	Stainless Steel (316)

Max Cycles Per Minute	400
Maximum Flow (GPM)	3.4 GPM
Max Suction Lift	5 Feet
Model Number	851565
Model Series	NDP-5 Series
Motor	Ryton® Air Motor
Valve / Seat / O-Ring	PTFE

NDP-5 Series Information

Features & Benefits
Port Dimensions Intake & discharge 1/4" Female NPT Air inlet (incl. ball valve): 1/4" Female NPT Air exhaust (internal silencer): 3/8" Female NPT Maximum Liquid Temperature Fitted with PTFE diaphragm Pump Material Temperature Groundable Acetal 180°F (82°C) Polypropylene (PPG) 180°F (82°C) Aluminum (ADC-12) 212°F (100°C) Kynar® (PVDF) 212°F (100°C) Stainless Steel (316) 212°F (100°C)
Notes
Hytrel®-fitted pumps include Hytrel® check balls & Buna N wetted o‑rings. Santoprene®-fitted pumps include Santoprene® check balls and EPDM wetted o‑rings. K5-PT-2 (replaces K5-PT) starting Serial Number is 228480. K5-PT is still available.

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	Yamada Pumps NDP-5 Pump Manual		View
	Yamada Pumps NDP-5 Pump Specifications		View
	Yamada Pumps NDP-5 Pump PPG CAD Drawing		View
	Yamada Pumps NDP-5 Pump SS CAD Drawing		View
	Yamada Pumps NDP-5 Pump Aluminum CAD Drawing		View
	Yamada Pumps NDP-5FST Repair Parts		View
