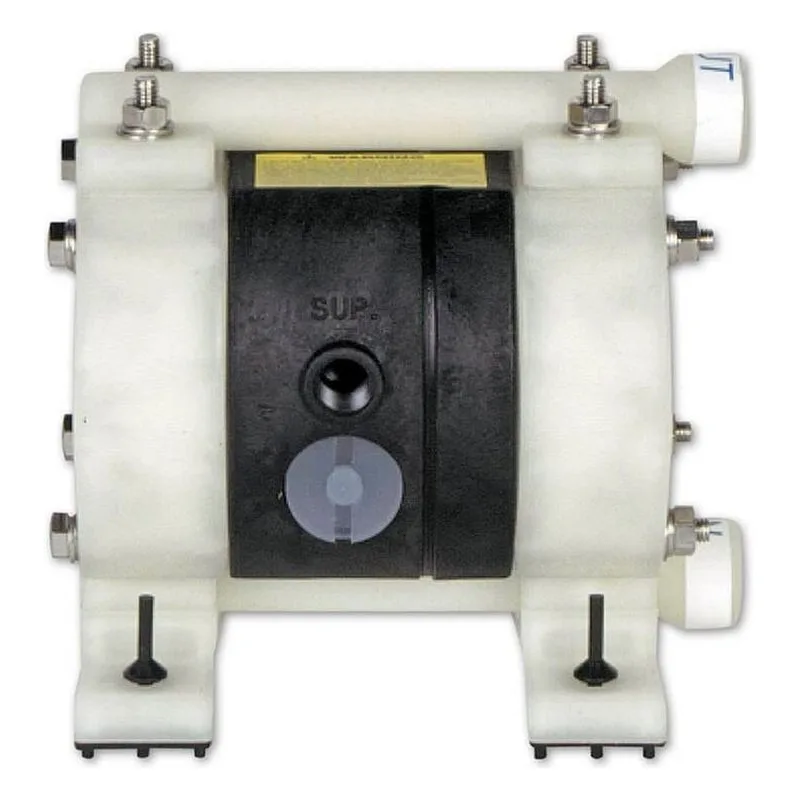

• Yamada Diaphragm Pump NDP-5FPT

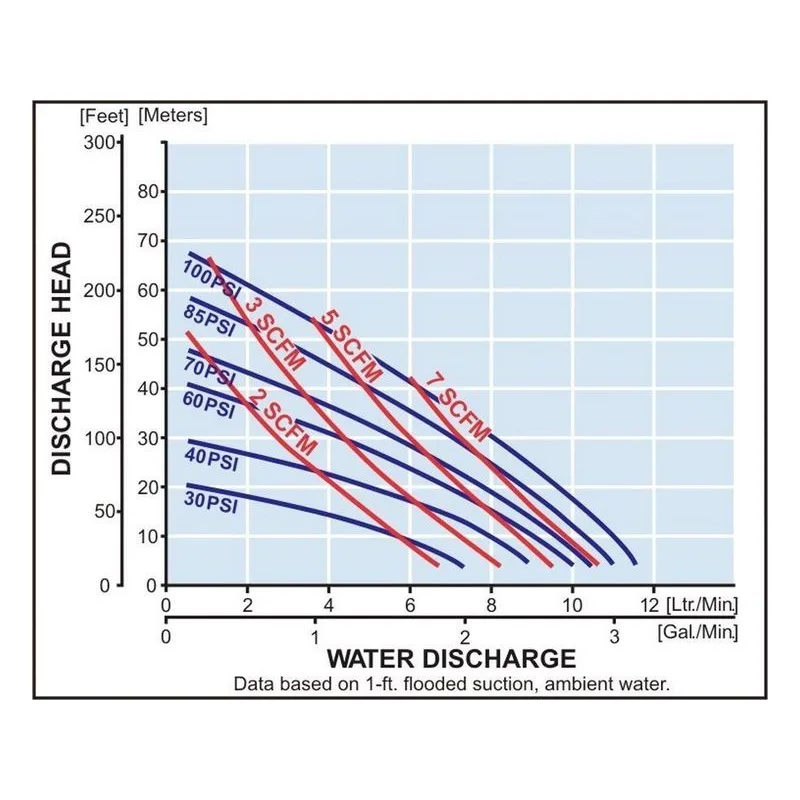

  • Yamada Pumps NDP-5 Series Performance Curves

Image shown may not be actual product

Yamada

NDP-5FPT

0 reviews

Yamada Pumps NDP-5FPT Type, Model 851562 NDP-5 Series, Air Operated Double Diaphragm Pump, PTFE Diaphragm, PTFE Flat Check Valve / O-Rings, Polypropylene (PPG) Material, 3.4 GPM Max Flow, 1/4" NPT Fluid Port, 1/4" Female NPT (includes ball valve) Air Inlet, 3/8" Female NPT (includes silencer) Air Exhaust, Ryton® Air Motor, 5 Feet Max Suction Lift

$225.00

Item: NDP-5FPT | Model #: 851562
  • Overview
  • Series Info
  • Reviews
  • Literature/Manuals
  • Repair Parts

NDP-5FPT

Yamada Pumps NDP-5FPT Type, Model 851562 NDP-5 Series, Air Operated Double Diaphragm Pump, PTFE Diaphragm, PTFE Flat Check Valve / O-Rings, Polypropylene (PPG) Material, 3.4 GPM Max Flow, 1/4" NPT Fluid Port, 1/4" Female NPT (includes ball valve) Air Inlet, 3/8" Female NPT (includes silencer) Air Exhaust, Ryton® Air Motor, 5 Feet Max Suction Lift

Actual Weight5
Air Exhaust3/8" Female NPT (includes silencer)
Air Inlet1/4" Female NPT (includes ball valve)
Air Supply Pressure20 to 100 PSI (1.4 to 7 kgf/cm²)
DiaphragmPTFE
Discharge Volume Per Cycle0.0085 gallons (35 cc)
Fluid Port1/4" NPT
Liquid Temperature180°F (82°C) Max
MaterialPolypropylene (PPG)
Max Cycles Per Minute400
Maximum Flow (GPM)3.4 GPM
Max Suction Lift5 Feet
Model Number851562
Model SeriesNDP-5 Series
MotorRyton® Air Motor
Valve / Seat / O-RingPTFE

NDP-5 Series Information

Features & Benefits
Port Dimensions
Intake & discharge 1/4" Female NPT
Air inlet (incl. ball valve): 1/4" Female NPT
Air exhaust (internal silencer): 3/8" Female NPT

Maximum Liquid Temperature
Fitted with PTFE diaphragm
Pump Material Temperature
Groundable Acetal 180°F (82°C)
Polypropylene (PPG) 180°F (82°C)
Aluminum (ADC-12) 212°F (100°C)
Kynar® (PVDF) 212°F (100°C)
Stainless Steel (316) 212°F (100°C)
Notes
Hytrel®-fitted pumps include Hytrel® check balls & Buna N wetted o‑rings. Santoprene®-fitted pumps include Santoprene® check balls and EPDM wetted o‑rings.

K5-PT-2 (replaces K5-PT) starting Serial Number is 228480. K5-PT is still available.

Categories

0 Reviews

Add a Review

You need to sign in to add a review.

SeriesTypeLink

NDP-5 Series

Yamada Pumps NDP-5 Pump Manual

View

NDP-5 Series

Yamada Pumps NDP-5 Pump Specifications

View

NDP-5 Series

Yamada Pumps NDP-5 Pump PPG CAD Drawing

View

NDP-5 Series

Yamada Pumps NDP-5 Pump SS CAD Drawing

View

NDP-5 Series

Yamada Pumps NDP-5 Pump Aluminum CAD Drawing

View

NDP-5 Series

Yamada Pumps NDP-5FPT Repair Parts

View

Repair Parts for NDP-5FPT

Productqty.shippingprice
K5-PT-2

K5-PT-2

Ships in 1 - 2 Weeks $61.20
FR-1

FR-1

Ships in 1 - 2 Weeks $66.30
FR-1A

FR-1A

Ships in 1 - 2 Weeks $75.65
K5-AM

K5-AM

Ships in 1 - 2 Weeks $63.11
