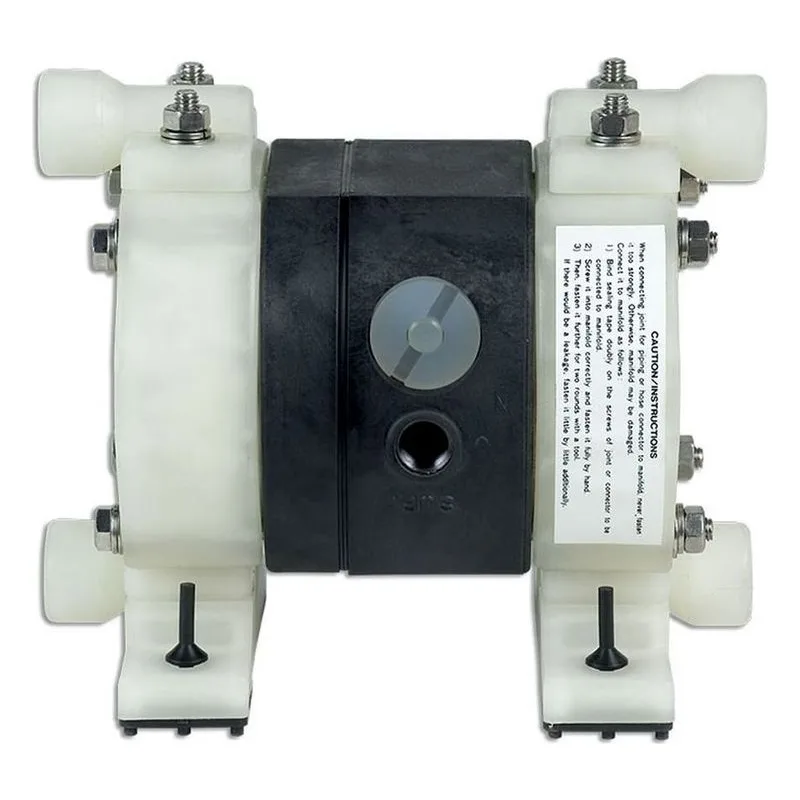

Image shown may not be actual product
Yamada Pumps NDP-5FPT-Z Type, Model 851562-Z NDP-5 Series, Air Operated Double Diaphragm Pump, PTFE Diaphragm, PTFE Flat Check Valve / O-Rings, Polypropylene (PPG) Material, 3.4 GPM Max Flow, 1/4" NPT Fluid Port, 1/4" Female NPT (includes ball valve) Air Inlet, 3/8" Female NPT (includes silencer) Air Exhaust, Ryton® Air Motor, 5 Feet Max Suction Lift
Yamada Pumps NDP-5FPT-Z Type, Model 851562-Z NDP-5 Series, Air Operated Double Diaphragm Pump, PTFE Diaphragm, PTFE Flat Check Valve / O-Rings, Polypropylene (PPG) Material, 3.4 GPM Max Flow, 1/4" NPT Fluid Port, 1/4" Female NPT (includes ball valve) Air Inlet, 3/8" Female NPT (includes silencer) Air Exhaust, Ryton® Air Motor, 5 Feet Max Suction Lift
Actual Weight | 5 |
Air Exhaust | 3/8" Female NPT (includes silencer) |
Air Inlet | 1/4" Female NPT (includes ball valve) |
Air Supply Pressure | 20 to 100 PSI (1.4 to 7 kgf/cm²) |
Diaphragm | PTFE |
Discharge Volume Per Cycle | 0.0085 gallons (35 cc) |
Fluid Port | 1/4" NPT |
Liquid Temperature | 180°F (82°C) Max |
Material | Polypropylene (PPG) |
Max Cycles Per Minute | 400 |
Maximum Flow (GPM) | 3.4 GPM |
Max Suction Lift | 5 Feet |
Model Number | 851562-Z |
Model Series | NDP-5 Series |
Motor | Ryton Air Motor |
Valve / Seat / O-Ring | PTFE |
Features & Benefits |
---|
Port Dimensions Intake & discharge 1/4" Female NPT Air inlet (incl. ball valve): 1/4" Female NPT Air exhaust (internal silencer): 3/8" Female NPT Maximum Liquid Temperature Fitted with PTFE diaphragm Pump Material Temperature Groundable Acetal 180°F (82°C) Polypropylene (PPG) 180°F (82°C) Aluminum (ADC-12) 212°F (100°C) Kynar® (PVDF) 212°F (100°C) Stainless Steel (316) 212°F (100°C) |
Notes |
Hytrel®-fitted pumps include Hytrel® check balls & Buna N wetted o‑rings. Santoprene®-fitted pumps include Santoprene® check balls and EPDM wetted o‑rings. K5-PT-2 (replaces K5-PT) starting Serial Number is 228480. K5-PT is still available. |
Aerospace
623 productsAutomotive
623 productsChemical Delivery / Transfer
623 productsGas & Petroleum
623 productsMining
623 productsPaints & Dyes
644 productsPrinting & Ink
644 productsStone / Clay / Glass
623 productsWashing / Cleaning Systems
644 productsWater Treatment
623 productsProduct | qty. | shipping | price | ||
---|---|---|---|---|---|
K5-PT-2 | Ships in 1-2 Weeks | $126.00 | |||
FR-1 | Ships in 1-2 Weeks | $115.00 | |||
FR-1A | Ships in 1-2 Weeks | $125.00 | |||
K5-AM | Ships in 1-2 Weeks | $175.00 |
