Image shown may not be actual product
NDP-5FPT-MP

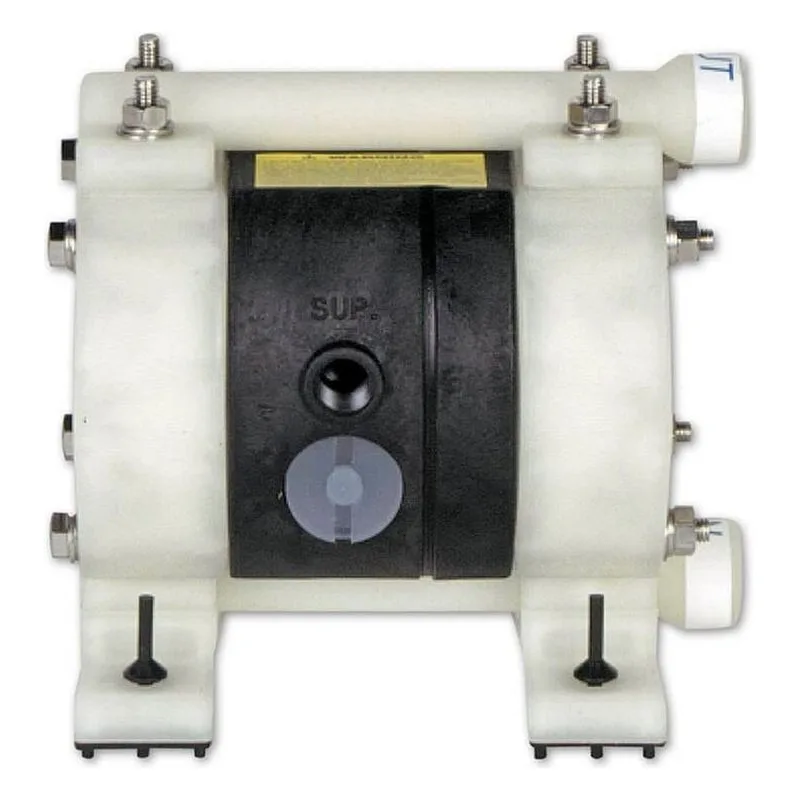

Yamada America NDP-5FPT-MP NDP-5 Series Air Operated Double Diaphragm Pump, Model Number 853668. Polypropylene Body, PTFE Diaphragm, Flat Valve & O-Rings, Ryton Air Motor. 1/4" FNPT Inlet & Outlet, 3.4 GPM Flow Rate.
- Overview
- Series Info
- Reviews
- Literature/Manuals
- Repair Parts
NDP-5FPT-MP
Yamada America NDP-5FPT-MP NDP-5 Series Air Operated Double Diaphragm Pump, Model Number 853668. Polypropylene Body, PTFE Diaphragm, Flat Valve & O-Rings, Ryton Air Motor. 1/4" FNPT Inlet & Outlet, 3.4 GPM Flow Rate.
| Air Exhaust | 3/8" Female NPT (includes silencer) |
| Air Inlet | 1/4" Female NPT (includes ball valve) |
| Air Supply Pressure | 20-100 PSI |
| Connection Type | FNPT |
| Diaphragm | PTFE |
| Discharge NPT (Inches) | 1/4" |
| Discharge Volume Per Cycle | 0.0078 Gallons |
| Fluid Port | 1/4" |
| Liquid Temperature | 180°F (82°C) |
| Material | Polypropylene |
| Max Cycles Per Minute | 400 |
| Maximum Flow (GPM) | 3.4 |
| Max Suction Lift | 5' |
| Model Number | 853668 |
| Model Series | NDP-5 |
| Motor | Ryton |
| Product Notes | Multiport Manifold |
| Suction NPT (Inches) | 1/4" |
| Valve Balls | PTFE (Flat Valve) |
| Valve / Seat / O-Ring | PTFE O-Rings |
| Valve Type | Flat |
NDP-5 Series Information
| Features & Benefits |
|---|
| Port Dimensions Intake & discharge 1/4" Female NPT Air inlet (incl. ball valve): 1/4" Female NPT Air exhaust (internal silencer): 3/8" Female NPT Maximum Liquid Temperature Fitted with PTFE diaphragm Pump Material Temperature Groundable Acetal 180°F (82°C) Polypropylene (PPG) 180°F (82°C) Aluminum (ADC-12) 212°F (100°C) Kynar® (PVDF) 212°F (100°C) Stainless Steel (316) 212°F (100°C) |
| Notes |
| Hytrel®-fitted pumps include Hytrel® check balls & Buna N wetted o‑rings. Santoprene®-fitted pumps include Santoprene® check balls and EPDM wetted o‑rings. K5-PT-2 (replaces K5-PT) starting Serial Number is 228480. K5-PT is still available. |
Categories
Aerospace
641 productsAutomotive
641 productsChemical Delivery / Transfer
641 productsGas & Petroleum
641 productsMining
641 productsPaints & Dyes
666 productsPrinting & Ink
666 productsStone / Clay / Glass
641 productsWashing / Cleaning Systems
662 productsWater Treatment
641 products
Repair Parts for NDP-5FPT-MP
| Product | qty. | shipping | price | ||
|---|---|---|---|---|---|
 | K5-PT-2 | Ships in 1-2 Weeks | $135.00 | ||
 | FR-1 | Ships in 1-2 Weeks | $125.00 | ||
 | FR-1A | Ships in 1-2 Weeks | $135.00 | ||
 | K5-AM | Ships in 1-2 Weeks | $193.00 | ||
