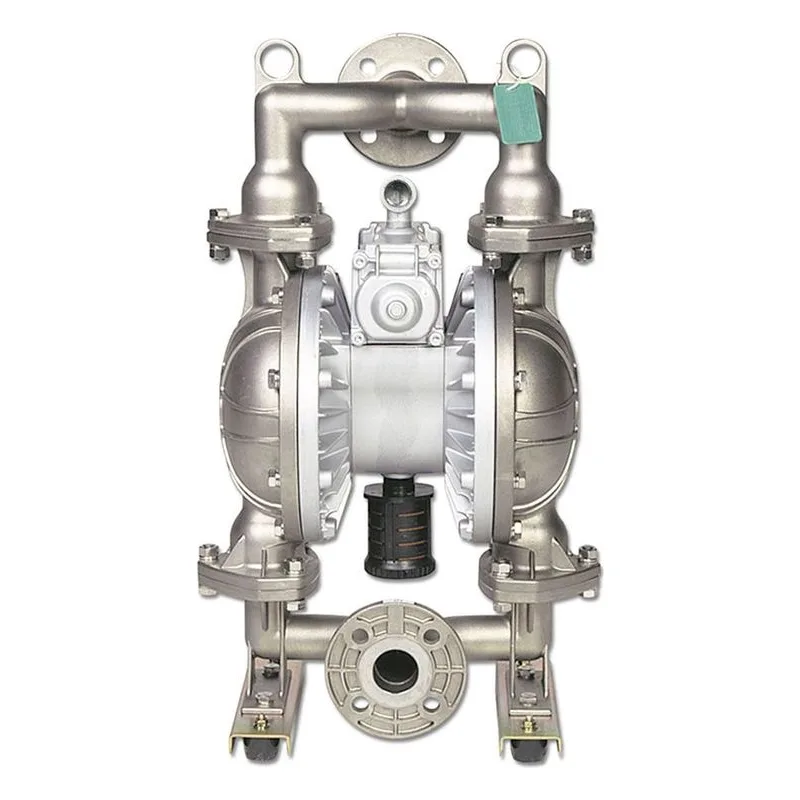

Yamada 852225-U NDP-40 Series AODD Diaphragm Pump, NDP-40BSU

NDP-40 Series Information

Features & Benefits
Port Dimensions Intake & discharge connection: Polypropylene (PPG) 1-1/2" ANSI B16.5 #150 Kynar® (PVDF) 1-1/2" ANSI B16.5 #150 Aluminum (ADC-12) 1-1/2" ANSI B16.5 #150 (with tapped 1-1/2" Female NPT) Stainless Steel (316) 1-1/2" ANSI B16.5 #150 or 1-1/2" Female NPT Cast Iron 1-1/2" Female NPT Air inlet (incl. ball valve): 1/2" Female NPT Air exhaust (incl. silencer): 1" Female NPT Maximum Liquid Temperature* Diaphragm Material Temperature Buna N 180°F (82°C) Neoprene 180°F (82°C) Santoprene® (TPO) 180°F (82°C) EPDM 212°F (100°C) PTFE 212°F (100°C) Hytrel® (TPEE) 248°F (120°C) Viton® fluoroelastomer 248°F (120°C) *The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material.
Notes
Kynar Pumps with serial number prior to 493125 will require a kit without a "-1".

Air Inlet	1/2" FNPT
Air Supply Pressure	20 - 100 PSI (1.4 - 7 kfg/cm)
Diaphragm	Ultimate PTFE/EPDM
Discharge NPT (Inches)	1-1/2" ANSI Flange
Discharge Volume Per Cycle	0.37 gallons (1.40 liters)
Fluid Port	1-1/2"
Material	Stainless Steel
Maximum Flow (GPM)	107
Max Suction Lift	18'

Model Number	852225-U
Motor	Aluminum
Solids (Inches)	9/32" (7mm)
Suction NPT (Inches)	1-1/2" ANSI Flanged
Type	Ball Valve
Valve Balls	Ultimate PTFE/EPDM
Valve / Seat / O-Ring	PTFE

Type	Title		Link
	Yamada Pumps NDP-40 Pump Manual		View
	Yamada Pumps NDP-40 Pump Specifications		View
	NDP-40 Operation Manual		View
	NDP-40BSU Ultimate Diaphragm Series Repair Parts		View
