• NDP-40BSU-NPT Yamada NDP-40 Series AODD Diaphragm Pump 852639-U

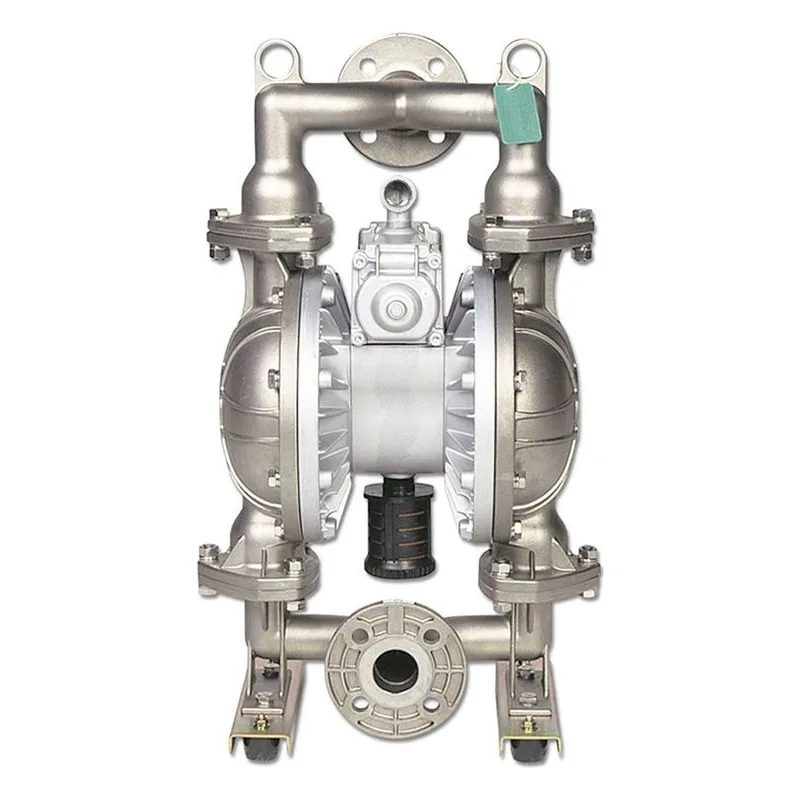

Image shown may not be actual product

Yamada

NDP-40BSU-NPT

0 reviews

Yamada NDP-40BSU-NPT NDP-40 Series Air Operated Double Diaphragm Pump, Model 852639-U. Stainless Steel Body with Ball Valve, Ultimate PTFE/EPDM Diaphragm & Ball Materials, PTFE O-Rings. 1-1/2" FNPT Inlet & Outlet, Repair Kit K40-MU Available.

$5,645.00

Item: NDP-40BSU-NPT | Model #: 852639-U

NDP-40BSU-NPT

Yamada NDP-40BSU-NPT NDP-40 Series Air Operated Double Diaphragm Pump, Model 852639-U. Stainless Steel Body with Ball Valve, Ultimate PTFE/EPDM Diaphragm & Ball Materials, PTFE O-Rings. 1-1/2" FNPT Inlet & Outlet, Repair Kit K40-MU Available.

Air Inlet1/2" FNPT
Air Supply Pressure20 - 100 PSI (1.4 - 7 kfg/cm)
DiaphragmUltimate PTFE/EPDM
Discharge NPT (Inches)1-1/2" FNPT
Discharge Volume Per Cycle0.37 gallons (1.40 liters)
Fluid Port1-1/2"
MaterialStainless Steel
Maximum Flow (GPM)107
Max Suction Lift18'
Model Number852639-U
MotorAluminum
Solids (Inches)9/32" (7mm)
Suction NPT (Inches)1-1/2" FNPT
TypeBall Valve
Valve BallsUltimate PTFE/EPDM
Valve / Seat / O-RingPTFE

NDP-40 Series Information

Features & Benefits
Port Dimensions
Intake & discharge connection:
Polypropylene (PPG) 1-1/2" ANSI B16.5 #150
Kynar® (PVDF) 1-1/2" ANSI B16.5 #150
Aluminum (ADC-12) 1-1/2" ANSI B16.5 #150
(with tapped 1-1/2" Female NPT)
Stainless Steel (316) 1-1/2" ANSI B16.5 #150
or 1-1/2" Female NPT
Cast Iron 1-1/2" Female NPT
Air inlet (incl. ball valve): 1/2" Female NPT
Air exhaust (incl. silencer): 1" Female NPT

Maximum Liquid Temperature*
Diaphragm Material Temperature
Buna N 180°F (82°C)
Neoprene 180°F (82°C)
Santoprene® (TPO) 180°F (82°C)
EPDM 212°F (100°C)
PTFE 212°F (100°C)
Hytrel® (TPEE) 248°F (120°C)
Viton® fluoroelastomer 248°F (120°C)

*The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material.
Notes
Kynar Pumps with serial number prior to 493125 will require a kit without a "-1".

Categories

0 Reviews

Add a Review

You need to sign in to add a review.

TypeTitleLink

Yamada Pumps NDP-40 Pump Manual

View

Yamada Pumps NDP-40 Pump Specifications

View

NDP-40 Operation Manual

View

NDP-40BSU-NPT Ultimate Diaphragm Series Repair Parts

View

Repair Parts for NDP-40BSU-NPT

Productqty.shippingprice
712931

712931

Ships in 1-2 Weeks $845.00
712601

712601

Ships in 1-2 Weeks $935.00
712600

712600

Ships in 1-2 Weeks $935.00
803111

803111

Ships in 1-2 Weeks $724.00
711933

711933

Ships in 1-2 Weeks $156.00
711936

711936

Ships in 1-2 Weeks $267.00
772689

772689

Ships in 1-2 Weeks $46.00
711937

711937

Ships in 1-2 Weeks $8.00
771740

771740

Ships in 1-2 Weeks $8.00
832162

832162

Ships in 1-2 Weeks $23.00
640020

640020

Ships in 1-2 Weeks $5.00
685444

685444

Ships in 1-2 Weeks $10.00
640029

640029

Ships in 1-2 Weeks $5.00
771742

771742

Ships in 1-2 Weeks $28.00
683812

683812

Ships in 1-2 Weeks $5.00
802971

802971

Ships in 1-2 Weeks $454.00
711931

711931

Ships in 1-2 Weeks $289.00
580999

580999

Ships in 1-2 Weeks $28.00
581000

581000

Ships in 1-2 Weeks $28.00
771735

771735

Ships in 1-2 Weeks $9.00
712976

712976

Ships in 1-2 Weeks $21.00
771738

771738

Ships in 1-2 Weeks $9.00
685036

685036

Ships in 1-2 Weeks $8.00
805084

805084

Ships in 1-2 Weeks $194.00
803675

803675

Ships in 1-2 Weeks $61.00
640036

640036

Ships in 1-2 Weeks $5.00
805085

805085

Ships in 1-2 Weeks $60.00
771735

771735

Ships in 1-2 Weeks $9.00
711932

711932

Ships in 1-2 Weeks $12.00
771734

771734

Ships in 1-2 Weeks $6.00
640005

640005

Ships in 1-2 Weeks $5.00
684128

684128

Ships in 1-2 Weeks $5.00
771712

771712

Ships in 1-2 Weeks $21.00
684240

684240

Ships in 1-2 Weeks $8.00
684987

684987

Ships in 1-2 Weeks $5.00
717130

717130

Ships in $104.00
717132

717132

Ships in $100.00
833223

833223

Ships in $602.00
711908

711908

Ships in 1-2 Weeks $83.00
770692

770692

Ships in 1-2 Weeks $56.00
686972

686972

Ships in $42.00
682523

682523

Ships in 1-2 Weeks $8.00
684339

684339

Ships in 1-2 Weeks $18.00
711911

711911

Ships in 1-2 Weeks $55.00
771402

771402

Ships in 1-2 Weeks $6.00
706128

706128

Ships in 1-2 Weeks $46.00
682740

682740

Ships in 1-2 Weeks $5.00
621180

621180

Ships in 1-2 Weeks $8.00
631174

631174

Ships in 1-2 Weeks $5.00
631937

631937

Ships in 1-2 Weeks $4.00
621202

621202

Ships in 1-2 Weeks $5.00
631175

631175

Ships in 1-2 Weeks $5.00
631938

631938

Ships in 1-2 Weeks $4.00
628014

628014

Ships in 1-2 Weeks $8.00
621175

621175

Ships in 1-2 Weeks $5.00
628013

628013

Ships in 1-2 Weeks $5.00
611149

611149

Ships in 1-2 Weeks $5.00
682276

682276

Ships in 1-2 Weeks $5.00
643065

643065

Ships in 1-2 Weeks $19.00
804764

804764

Ships in 1-2 Weeks $95.00
643136

643136

Ships in 1-2 Weeks $20.00
K40-MU

K40-MU

Ships in $1,584.00
K45-AM

K45-AM

Ships in 1-2 Weeks $449.00
0 items selected.Add items to cart
