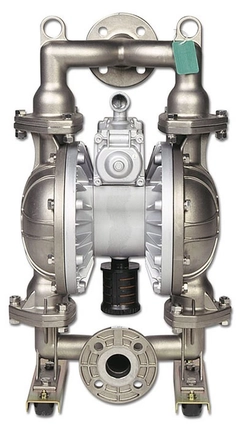

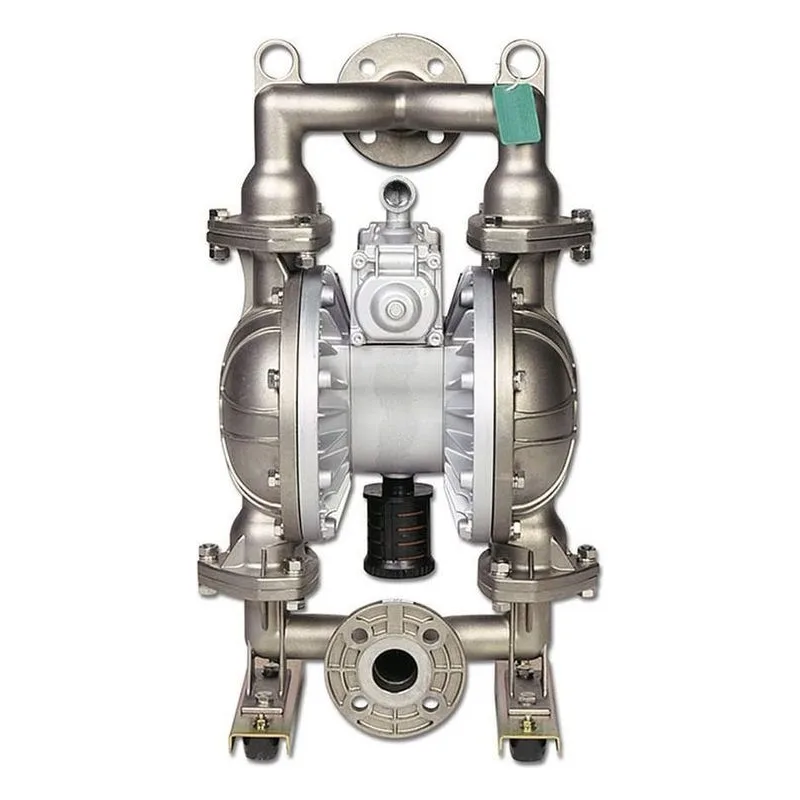

Image shown may not be actual product
Yamada Pumps NDP-40BSC Type, Model 852419 NDP-40 Series, Air Operated Double Diaphragm Pump, Neoprene Diaphragm, Neoprene Flat Check Valve / O-Rings, Stainless Steel (316) - Flange Material, 107 GPM Max Flow, 1-1/2" Fluid Port, 1/2" Female NPT (includes ball valve) Air Inlet, 3/4" Female NPT (includes silencer) Air Exhaust, Aluminum Air Motor
Yamada Pumps NDP-40BSC Type, Model 852419 NDP-40 Series, Air Operated Double Diaphragm Pump, Neoprene Diaphragm, Neoprene Flat Check Valve / O-Rings, Stainless Steel (316) - Flange Material, 107 GPM Max Flow, 1-1/2" Fluid Port, 1/2" Female NPT (includes ball valve) Air Inlet, 3/4" Female NPT (includes silencer) Air Exhaust, Aluminum Air Motor
Actual Weight | 107 |
Air Exhaust | 3/4" Female NPT (includes silencer) |
Air Inlet | 1/2" Female NPT (includes ball valve) |
Air Supply Pressure | 20 to 100 PSI (1.4 to 7 kgf/cm²) |
Diaphragm | Neoprene |
Discharge Volume Per Cycle | 0.79 gallons (3.0 liters) |
Fluid Port | 1-1/2" |
Liquid Temperature | 180°F (82°C) Max |
Material | Stainless Steel (316) - Flange |
Max Cycles Per Minute | 148 |
Maximum Flow (GPM) | 107 |
Max Suction Lift | 18 Feet |
Model Number | 852419 |
Model Series | NDP-40 Models |
Motor | Aluminum Air Motor |
Outside Dimension | 16.18" W x 27.75" H |
Solids (Inches) | 9/32" (7 mm) |
Type | 852419 |
Valve / Seat / O-Ring | Neoprene |
Features & Benefits |
---|
Port Dimensions Intake & discharge connection: Polypropylene (PPG) 1-1/2" ANSI B16.5 #150 Kynar® (PVDF) 1-1/2" ANSI B16.5 #150 Aluminum (ADC-12) 1-1/2" ANSI B16.5 #150 (with tapped 1-1/2" Female NPT) Stainless Steel (316) 1-1/2" ANSI B16.5 #150 or 1-1/2" Female NPT Cast Iron 1-1/2" Female NPT Air inlet (incl. ball valve): 1/2" Female NPT Air exhaust (incl. silencer): 1" Female NPT Maximum Liquid Temperature* Diaphragm Material Temperature Buna N 180°F (82°C) Neoprene 180°F (82°C) Santoprene® (TPO) 180°F (82°C) EPDM 212°F (100°C) PTFE 212°F (100°C) Hytrel® (TPEE) 248°F (120°C) Viton® fluoroelastomer 248°F (120°C) *The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material. |
Notes |
Kynar Pumps with serial number prior to 493125 will require a kit without a "-1". |
