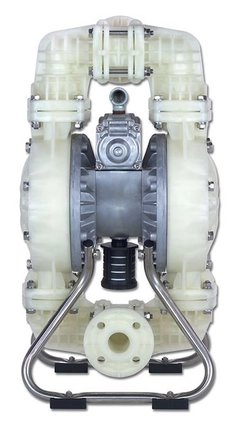

NDP-40BPC

Image shown may not be actual product

NDP-40BPC

0 reviews

Yamada America NDP-40BPC NDP-40 Series Air Operated Double Diaphragm Pump, Model Number 852421. Polypropylene Body, Neoprene Diaphragm, Balls & O-Rings, Aluminum Air Motor. 1-1/2" ANSI Flange Inlet & Outlet, 107 GPM Flow Rate, Passes up to 9/32" (7mm) Solids.

$2,995.00

Best Price Guarantee!
599PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: NDP-40BPC | Model #: 852421

Repair Parts Exploded View Diagram

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

NDP-40BPC

Air Exhaust	1" Female NPT (includes silencer)
Air Inlet	1/2" Female NPT (includes ball valve)
Air Supply Pressure	20-100 PSI
Connection Type	ANSI Flange
Diaphragm	Neoprene (CR)
Discharge NPT (Inches)	1-1/2"
Discharge Volume Per Cycle	0.73 Gallons
Fluid Port	1-1/2"
Liquid Temperature	180°F (82°C)
Material	Polypropylene
Max Cycles Per Minute	148

Maximum Flow (GPM)	107
Max Suction Lift	18'
Model Number	852421
Model Series	NDP-40
Motor	Aluminum
Solids (Inches)	9/32" (7mm)
Suction NPT (Inches)	1-1/2"
Valve Balls	Neoprene (CR)
Valve / Seat / O-Ring	Neoprene (CR) O-Rings
Valve Type	Ball

NDP-40 Series Information

Features & Benefits
Port Dimensions Intake & discharge connection: Polypropylene (PPG) 1-1/2" ANSI B16.5 #150 Kynar® (PVDF) 1-1/2" ANSI B16.5 #150 Aluminum (ADC-12) 1-1/2" ANSI B16.5 #150 (with tapped 1-1/2" Female NPT) Stainless Steel (316) 1-1/2" ANSI B16.5 #150 or 1-1/2" Female NPT Cast Iron 1-1/2" Female NPT Air inlet (incl. ball valve): 1/2" Female NPT Air exhaust (incl. silencer): 1" Female NPT Maximum Liquid Temperature* Diaphragm Material Temperature Buna N 180°F (82°C) Neoprene 180°F (82°C) Santoprene® (TPO) 180°F (82°C) EPDM 212°F (100°C) PTFE 212°F (100°C) Hytrel® (TPEE) 248°F (120°C) Viton® fluoroelastomer 248°F (120°C) *The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material.
Notes
Kynar Pumps with serial number prior to 493125 will require a kit without a "-1".
