NDP-40BFU

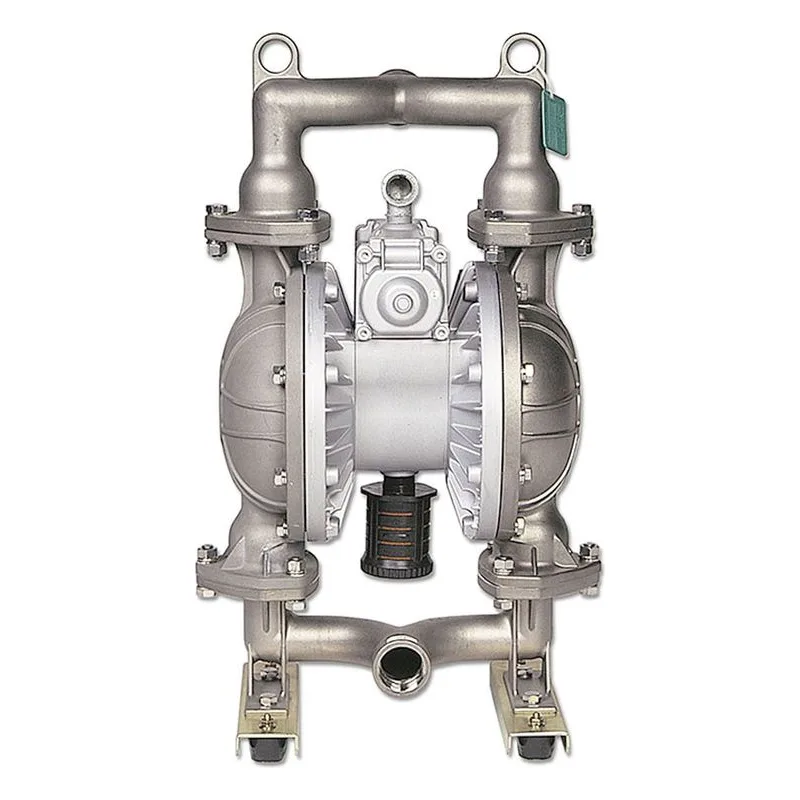

Image shown may not be actual product

NDP-40BFU

0 reviews

Yamada America NDP-40BFU NDP-40 Series Air Operated Double Diaphragm Pump, Model Number 852871-U. Cast Iron Body, Ultimate Diaphragm, PTFE Balls & O-Rings, Aluminum Air Motor. 1-1/2" FNPT Inlet & Outlet, 107 GPM Flow Rate, Passes up to 9/32" (7mm) Solids.

Call for Pricing

Best Price Guarantee!

Item: NDP-40BFU | Model #: 852871-U

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

NDP-40BFU

Air Exhaust	1" Female NPT (includes silencer)
Air Inlet	1/2" Female NPT (includes ball valve)
Air Supply Pressure	20-100 PSI
Connection Type	FNPT
Diaphragm	Ultimate (PTFE/EPDM)
Discharge NPT (Inches)	1-1/2"
Discharge Volume Per Cycle	0.37 Gallons
Fluid Port	1-1/2"
Liquid Temperature	212°F (100°C)
Material	Cast Iron
Max Cycles Per Minute	270

Maximum Flow (GPM)	107
Max Suction Lift	18'
Model Number	852871-U
Model Series	NDP-40
Motor	Aluminum
Solids (Inches)	9/32" (7mm)
Suction NPT (Inches)	1-1/2"
Valve Balls	PTFE
Valve / Seat / O-Ring	PTFE O-Rings
Valve Type	Ball

NDP-40 Series Information

Features & Benefits
Port Dimensions Intake & discharge connection: Polypropylene (PPG) 1-1/2" ANSI B16.5 #150 Kynar® (PVDF) 1-1/2" ANSI B16.5 #150 Aluminum (ADC-12) 1-1/2" ANSI B16.5 #150 (with tapped 1-1/2" Female NPT) Stainless Steel (316) 1-1/2" ANSI B16.5 #150 or 1-1/2" Female NPT Cast Iron 1-1/2" Female NPT Air inlet (incl. ball valve): 1/2" Female NPT Air exhaust (incl. silencer): 1" Female NPT Maximum Liquid Temperature* Diaphragm Material Temperature Buna N 180°F (82°C) Neoprene 180°F (82°C) Santoprene® (TPO) 180°F (82°C) EPDM 212°F (100°C) PTFE 212°F (100°C) Hytrel® (TPEE) 248°F (120°C) Viton® fluoroelastomer 248°F (120°C) *The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material.
Notes
Kynar Pumps with serial number prior to 493125 will require a kit without a "-1".

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	Yamada Pumps NDP-40 Pump Manual		View
	Yamada Pumps NDP-40 Pump Specifications		View
	NDP-40 Operation Manual		View
	NDP-40BFU Ultimate Diaphragm Series Repair Parts		View

Repair Parts for NDP-40BFU

	shipping	price
713156	Ships in 1-2 Weeks	$471.00	Select item
713168	Ships in 1-2 Weeks	$365.00	Select item
713165	Ships in 1-2 Weeks	$365.00	Select item
803111	Ships in 1-2 Weeks	$815.00	Select item
711933	Ships in 1-2 Weeks	$176.00	Select item
711936	Ships in 1-2 Weeks	$301.00	Select item
780325	Ships in	$53.00	Select item
711937	Ships in 1-2 Weeks	$10.00	Select item
771740	Ships in 1-2 Weeks	$10.00	Select item
832162	Ships in 1-2 Weeks	$27.00	Select item
640020	Ships in 1-2 Weeks	$7.00	Select item
685444	Ships in 1-2 Weeks	$12.00	Select item
640029	Ships in 1-2 Weeks	$7.00	Select item
771742	Ships in 1-2 Weeks	$33.00	Select item
683812	Ships in 1-2 Weeks	$7.00	Select item
802971	Ships in 1-2 Weeks	$511.00	Select item
711931	Ships in 1-2 Weeks	$326.00	Select item
580999	Ships in 1-2 Weeks	$33.00	Select item
581000	Ships in 1-2 Weeks	$33.00	Select item
771735	Ships in 1-2 Weeks	$11.00	Select item
712976	Ships in 1-2 Weeks	$25.00	Select item
771738	Ships in 1-2 Weeks	$11.00	Select item
685036	Ships in 1-2 Weeks	$10.00	Select item
805084	Ships in 1-2 Weeks	$156.00	Select item
803675	Ships in 1-2 Weeks	$70.00	Select item
640036	Ships in 1-2 Weeks	$7.00	Select item
805085	Ships in 1-2 Weeks	$68.00	Select item
771735	Ships in 1-2 Weeks	$11.00	Select item
711932	Ships in 1-2 Weeks	$14.00	Select item
771734	Ships in 1-2 Weeks	$8.00	Select item
640005	Ships in 1-2 Weeks	$7.00	Select item
684128	Ships in 1-2 Weeks	$7.00	Select item
771712	Ships in 1-2 Weeks	$25.00	Select item
684240	Ships in 1-2 Weeks	$10.00	Select item
684987	Ships in 1-2 Weeks	$7.00	Select item
717130	Ships in	$118.00	Select item
717132	Ships in	$113.00	Select item
713389	Ships in 1-2 Weeks	$124.00	Select item
833223	Ships in	$678.00	Select item
711908	Ships in 1-2 Weeks	$95.00	Select item
770692	Ships in 1-2 Weeks	$64.00	Select item
686972	Ships in	$49.00	Select item
682523	Ships in 1-2 Weeks	$10.00	Select item
684339	Ships in 1-2 Weeks	$21.00	Select item
711911	Ships in 1-2 Weeks	$63.00	Select item
771402	Ships in 1-2 Weeks	$8.00	Select item
706128	Ships in 1-2 Weeks	$53.00	Select item
682740	Ships in 1-2 Weeks	$7.00	Select item
686160	Ships in 1-2 Weeks	$7.00	Select item
631014	Ships in 1-2 Weeks	$7.00	Select item
631917	Ships in 1-2 Weeks	$7.00	Select item
611202	Ships in 1-2 Weeks	$7.00	Select item
631015	Ships in 1-2 Weeks	$7.00	Select item
631918	Ships in 1-2 Weeks	$7.00	Select item
627014	Ships in 1-2 Weeks	$7.00	Select item
611175	Ships in 1-2 Weeks	$7.00	Select item
627013	Ships in 1-2 Weeks	$7.00	Select item
611149	Ships in 1-2 Weeks	$7.00	Select item
682276	Ships in 1-2 Weeks	$7.00	Select item
643065	Ships in 1-2 Weeks	$22.00	Select item
804764	Ships in 1-2 Weeks	$107.00	Select item
643136	Ships in 1-2 Weeks	$23.00	Select item
K40-MU	Ships in	Call for pricing
K45-AM	Ships in 1-2 Weeks	$423.00	Select item
