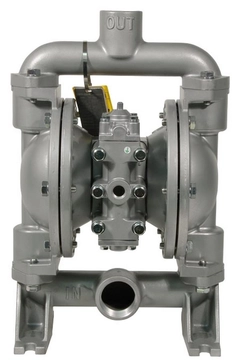

Image shown may not be actual product

NDP-32BAT

0 reviews

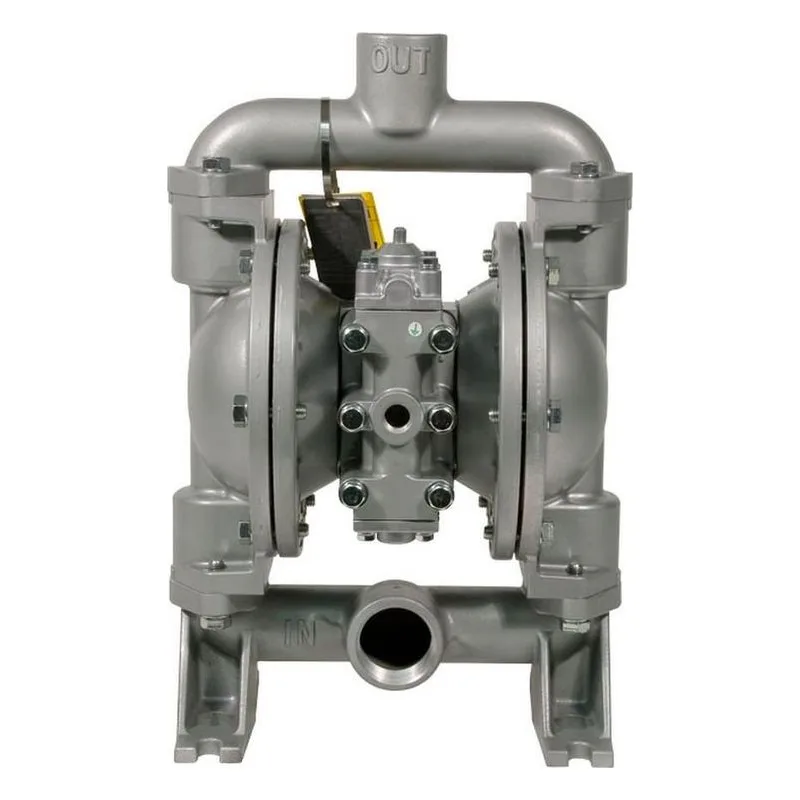

Yamada Pumps NDP-32BAT Type, Model 854576 NDP-32 Series, Air Operated Double Diaphragm Pump, Teflon Diaphragm, Teflon Flat Check Valve / O-Rings, Aluminum Material, 50.2 GPM Max Flow, Fluid Port, 3/8" NPT Air Inlet, 3/4" NPT Air Exhaust, Aluminum Air Motor

$1,565.00

Best Price Guarantee!
313PumpPoints

Item: NDP-32BAT | Model #: 854576

Repair Parts Exploded View Diagram

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

NDP-32BAT

Actual Weight	26.5
Air Exhaust	3/4" NPT
Air Inlet	3/8" NPT
Air Supply Pressure	30 to 100 PSI (0.2 to 0.7 MPa)
Diaphragm	Teflon
Discharge NPT (Inches)	1-1/4" Female NPT
Discharge Volume Per Cycle	0.18 gallons (681 cc)
Liquid Temperature	32–158°F
Material	Aluminum

Maximum Flow (GPM)	50.2 GPM
Model Number	854576
Model Series	NDP-32 Models
Motor	Aluminum Air Motor
Suction NPT (Inches)	1-1/2" Female NPT
Type	854276
Valve / Seat / O-Ring	Teflon

NDP-32 Series Information

Features & Benefits
Port Dimensions Intake connection: 1-1/2" Female NPT Discharge connection: 1-1/4" Female NPT Air inlet (incl. ball valve): 3/8" Female NPT Air exhaust (incl. silencer): 3/4" Female NPT Maximum Liquid Temperature* Diaphragm Material Temperature Buna N 180°F (82°C) Neoprene 180°F (82°C) Santoprene® (TPO) 180°F (82°C) EPDM 212°F (100°C) PTFE 212°F (100°C) Hytrel® (TPEE) 248°F (120°C) Viton® fluoroelastomer 248°F (120°C) *The maximum liquid temperature for metal pumps is determined by the elastomer (diaphragm material).
General Description
Have you ever wanted to switch out your old pump for a Yamada®, but faced repiping issues? With the NEW NDP-32 Pump from Yamada, your problems are solved. This new 1-1/2” inlet x 1-1/4” outlet matches up dimensionally with old competing brand’s designs. Now your conversion to Yamada is just a little bit easier. Available in Aluminum and any elastomer (Buna N, Hytrel®, Viton®, EPDM, Neoprene®, Santoprene® & PTFE) The same Non Lube design air motor used in all the Yamada NDP Series Pumps All the usual Yamada features: bolted design, outside accessible air motor, ease of maintenance, interchangeability of parts & Yamada quality

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	Yamada Pumps NDP-32 Pump Manual		View
	Yamada Pumps NDP-32 Pump Specifications		View
	NDP-32 Operation Manual		View
	NDP-32BAT Yamada Pump Repair Parts Exploded View		View
