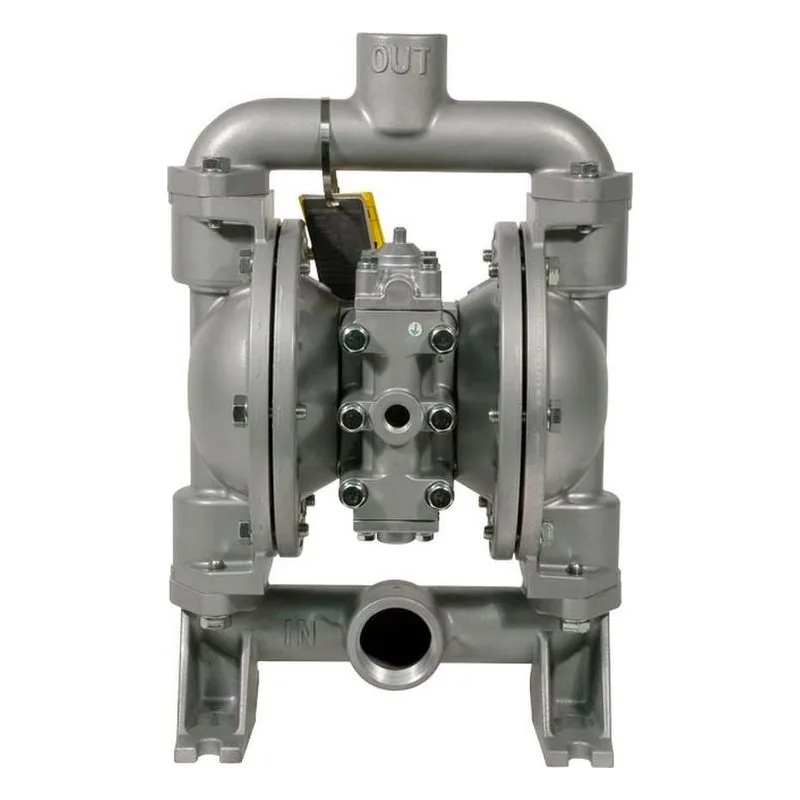

Image shown may not be actual product
Yamada NDP-32BAS 854575-TPO, Air Operated Double Diaphragm Pump with Santoprene Diaphragm. Santoprene / EPDM Valve & O-Rings, Aluminum Material, 50.2 GPM Max Flow, 3/4" Female NPT (includes silencer) Air Inlet, 3/4" NPT Air Exhaust, Aluminum Air Motor.
Yamada NDP-32BAS 854575-TPO, Air Operated Double Diaphragm Pump with Santoprene Diaphragm. Santoprene / EPDM Valve & O-Rings, Aluminum Material, 50.2 GPM Max Flow, 3/4" Female NPT (includes silencer) Air Inlet, 3/4" NPT Air Exhaust, Aluminum Air Motor.
Air Exhaust | 3/4" NPT |
Air Inlet | 3/4" Female NPT (includes silencer) |
Air Supply Pressure | 20 to 100 PSI (1.4 to 7 kgf/cm²) |
Diaphragm | Santoprene |
Discharge NPT (Inches) | 1-1/4" Female NPT |
Discharge Volume Per Cycle | 0.18 gallons (681 cc) |
Liquid Temperature | 180°F (82°C) Max |
Material | Aluminum |
Max Cycles Per Minute | 279 |
Maximum Flow (GPM) | 50.2 GPM |
Model Number | 854575-TPO |
Model Series | NDP-32 Models |
Motor | Aluminum Air Motor |
Solids (Inches) | 3mm |
Suction NPT (Inches) | 1-1/2" Female NPT |
Valve / Seat / O-Ring | Santoprene / EPDM |
Features & Benefits |
---|
Port Dimensions Intake connection: 1-1/2" Female NPT Discharge connection: 1-1/4" Female NPT Air inlet (incl. ball valve): 3/8" Female NPT Air exhaust (incl. silencer): 3/4" Female NPT Maximum Liquid Temperature* Diaphragm Material Temperature Buna N 180°F (82°C) Neoprene 180°F (82°C) Santoprene® (TPO) 180°F (82°C) EPDM 212°F (100°C) PTFE 212°F (100°C) Hytrel® (TPEE) 248°F (120°C) Viton® fluoroelastomer 248°F (120°C) *The maximum liquid temperature for metal pumps is determined by the elastomer (diaphragm material). |
General Description |
Have you ever wanted to switch out your old pump for a Yamada®, but faced repiping issues? With the NEW NDP-32 Pump from Yamada, your problems are solved. This new 1-1/2” inlet x 1-1/4” outlet matches up dimensionally with old competing brand’s designs. Now your conversion to Yamada is just a little bit easier. Available in Aluminum and any elastomer (Buna N, Hytrel®, Viton®, EPDM, Neoprene®, Santoprene® & PTFE) The same Non Lube design air motor used in all the Yamada NDP Series Pumps All the usual Yamada features: bolted design, outside accessible air motor, ease of maintenance, interchangeability of parts & Yamada quality |
Aerospace
623 productsAutomotive
623 productsChemical Delivery / Transfer
623 productsGas & Petroleum
623 productsMining
623 productsPaints & Dyes
644 productsPrinting & Ink
644 productsStone / Clay / Glass
623 productsWashing / Cleaning Systems
644 productsWater Treatment
623 productsProduct | qty. | shipping | price | ||
---|---|---|---|---|---|
683997 | Ships in 1-2 Weeks | $8.00 | |||
711702 | Ships in 1-2 Weeks | $21.00 | |||
773171 | Ships in | $14.00 | |||
590087 | Ships in 1-2 Weeks | $21.00 | |||
683996 | Ships in 1-2 Weeks | $8.00 | |||
771974 | Ships in 1-2 Weeks | $52.00 | |||
709151 | Ships in 1-2 Weeks | $14.00 | |||
709150 | Ships in 1-2 Weeks | $9.00 | |||
711687 | Ships in 1-2 Weeks | $99.00 | |||
682263 | Ships in 1-2 Weeks | $8.00 | |||
682730 | Ships in 1-2 Weeks | $5.00 | |||
611177 | Ships in 1-2 Weeks | $5.00 | |||
631917 | Ships in 1-2 Weeks | $5.00 | |||
804880 | Ships in 1-2 Weeks | $722.00 | |||
715939 | Ships in 1-2 Weeks | $27.00 | |||
802360 | Ships in 1-2 Weeks | $21.00 | |||
771057 | Ships in 1-2 Weeks | $8.00 | |||
640009 | Ships in 1-2 Weeks | $5.00 | |||
771945 | Ships in 1-2 Weeks | $45.00 | |||
708666 | Ships in 1-2 Weeks | $6.00 | |||
709812 | Ships in 1-2 Weeks | $113.00 | |||
685276 | Ships in 1-2 Weeks | $5.00 | |||
780324 | Ships in | $34.00 | |||
685414 | Ships in 1-2 Weeks | $9.00 | |||
682486 | Ships in 1-2 Weeks | $5.00 | |||
709162 | Ships in 1-2 Weeks | $50.00 | |||
771054 | Ships in 1-2 Weeks | $5.00 | |||
716373 | Ships in 1-2 Weeks | $135.00 | |||
802362 | Ships in 1-2 Weeks | $327.00 | |||
709161 | Ships in 1-2 Weeks | $8.00 | |||
640005 | Ships in 1-2 Weeks | $5.00 | |||
682704 | Ships in 1-2 Weeks | $5.00 | |||
771241 | Ships in 1-2 Weeks | $6.00 | |||
715961 | Ships in 1-2 Weeks | $9.00 | |||
802400 | Ships in 1-2 Weeks | $166.00 | |||
771053 | Ships in 1-2 Weeks | $9.00 | |||
710221 | Ships in 1-2 Weeks | $21.00 | |||
771240 | Ships in 1-2 Weeks | $8.00 | |||
711639 | Ships in 1-2 Weeks | $86.00 | |||
803931 | Ships in 1-2 Weeks | $191.00 | |||
771080 | Ships in 1-2 Weeks | $5.00 | |||
771914 | Ships in 1-2 Weeks | $9.00 | |||
709305 | Ships in 1-2 Weeks | $21.00 | |||
682262 | Ships in 1-2 Weeks | $5.00 | |||
682265 | Ships in 1-2 Weeks | $5.00 | |||
686970 | Ships in | $41.00 | |||
716374 | Ships in 1-2 Weeks | $246.00 | |||
771056 | Ships in 1-2 Weeks | $8.00 | |||
804697 | Ships in 1-2 Weeks | $91.00 | |||
716258 | Ships in 1-2 Weeks | $14.00 | |||
716259 | Ships in 1-2 Weeks | $9.00 | |||
K32-MS | Ships in | $208.00 | |||
K32-AM | Ships in 1-2 Weeks | $340.00 |
