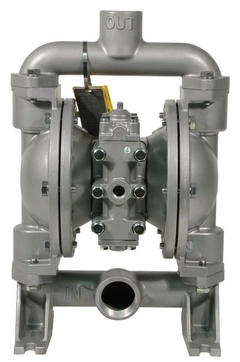

NDP-32BAN

Image shown may not be actual product

NDP-32BAN

0 reviews

Yamada America NDP-32BAN NDP-32 Series Air Operated Double Diaphragm Pump, Model Number 854575. Aluminum Body, Buna-N Diaphragm, Balls & O-Rings, Aluminum Air Motor. 1-1/2" NPT Inlet, 1-1/4" Outlet, 50.2 GPM Flow Rate, Passes up to 1/8" (3mm) Solids.

$1,305.00

Best Price Guarantee!
261PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: NDP-32BAN | Model #: 854575

Repair Parts Exploded View Diagram

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

NDP-32BAN

Air Exhaust	3/4" Female NPT (includes silencer)
Air Inlet	3/8" Female NPT (includes ball valve)
Air Supply Pressure	20-100 PSI
Connection Type	NPT
Diaphragm	Buna-N
Discharge NPT (Inches)	1-1/4"
Discharge Volume Per Cycle	0.176 Gallons
Fluid Port	1-1/2"
Liquid Temperature	180°F (82°C)
Material	Aluminum
Max Cycles Per Minute	285

Maximum Flow (GPM)	50.2
Model Number	854575
Model Series	NDP-32
Motor	Aluminum
Solids (Inches)	1/8" (3mm)
Suction NPT (Inches)	1-1/2"
Valve Balls	Buna-N
Valve / Seat / O-Ring	Buna-N O-Rings
Valve Type	Ball

NDP-32 Series Information

Features & Benefits
Port Dimensions Intake connection: 1-1/2" Female NPT Discharge connection: 1-1/4" Female NPT Air inlet (incl. ball valve): 3/8" Female NPT Air exhaust (incl. silencer): 3/4" Female NPT Maximum Liquid Temperature* Diaphragm Material Temperature Buna N 180°F (82°C) Neoprene 180°F (82°C) Santoprene® (TPO) 180°F (82°C) EPDM 212°F (100°C) PTFE 212°F (100°C) Hytrel® (TPEE) 248°F (120°C) Viton® fluoroelastomer 248°F (120°C) *The maximum liquid temperature for metal pumps is determined by the elastomer (diaphragm material).
General Description
Have you ever wanted to switch out your old pump for a Yamada®, but faced repiping issues? With the NEW NDP-32 Pump from Yamada, your problems are solved. This new 1-1/2” inlet x 1-1/4” outlet matches up dimensionally with old competing brand’s designs. Now your conversion to Yamada is just a little bit easier. Available in Aluminum and any elastomer (Buna N, Hytrel®, Viton®, EPDM, Neoprene®, Santoprene® & PTFE) The same Non Lube design air motor used in all the Yamada NDP Series Pumps All the usual Yamada features: bolted design, outside accessible air motor, ease of maintenance, interchangeability of parts & Yamada quality

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	Yamada Pumps NDP-32 Pump Manual		View
	Yamada Pumps NDP-32 Pump Specifications		View
	NDP-32 Operation Manual		View
	NDP-32BAN Yamada Pump Repair Parts Exploded View		View
