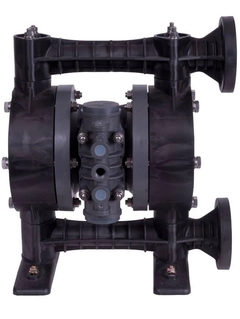

Image shown may not be actual product
Yamada Pumps NDP-25BVT-PP-FLG Type, Model 854206 NDP-25 Series, Air Operated Double Diaphragm Pump, PTFE Diaphragm, PTFE Flat Check Valve / O-Rings, Kynar (PVDF) Non-Metallic Center Body - Flange Material, 46.2 GPM Max Flow, 1" ANSI Flange Fluid Port, 3/8" Female NPT (includes ball valve) Air Inlet, 3/4" Female NPT (includes silencer) Air Exhaust, Aluminum Air Motor, 18 Feet Max Suction Lift
Yamada Pumps NDP-25BVT-PP-FLG Type, Model 854206 NDP-25 Series, Air Operated Double Diaphragm Pump, PTFE Diaphragm, PTFE Flat Check Valve / O-Rings, Kynar (PVDF) Non-Metallic Center Body - Flange Material, 46.2 GPM Max Flow, 1" ANSI Flange Fluid Port, 3/8" Female NPT (includes ball valve) Air Inlet, 3/4" Female NPT (includes silencer) Air Exhaust, Aluminum Air Motor, 18 Feet Max Suction Lift
Actual Weight | 34 |
Air Exhaust | 3/4" Female NPT (includes silencer) |
Air Inlet | 3/8" Female NPT (includes ball valve) |
Air Supply Pressure | 20 to 100 PSI (1.4 to 7 kgf/cm²) |
Diaphragm | PTFE |
Discharge Volume Per Cycle | 0.17 gallons (654 cc) |
Fluid Port | 1" ANSI Flange |
Liquid Temperature | 212°F (100°C) Max |
Material | Kynar (PVDF) Non-Metallic Center Body - Flange |
Max Cycles Per Minute | 210 |
Maximum Flow (GPM) | 46.2 GPM |
Max Suction Lift | 18 Feet |
Model Number | 854206 |
Model Series | NDP-25 Models |
Motor | Aluminum Air Motor |
Solids (Inches) | 3/16" (4.8 mm) |
Type | 854206 |
Valve / Seat / O-Ring | PTFE |
Features & Benefits |
---|
Port Dimensions Intake & discharge connection: Polypropylene (PPG) 1" Female NPT Kynar® (PVDF) 1" Female NPT Aluminum (ADC-12) 1" Female NPT Stainless Steel (316) 1" Female NPT Cast Iron 1" Female NPT Air inlet (incl. ball valve): 3/8" Female NPT Air exhaust (incl. silencer): 3/4" Female NPT ANSI Flange also available—consult Yamada. Maximum Liquid Temperature* Diaphragm Material Temperature Buna N 180°F (82°C) Neoprene 180°F (82°C) Santoprene® (TPO) 180°F (82°C) EPDM 212°F (100°C) PTFE 212°F (100°C) Hytrel® (TPEE) 248°F (120°C) Viton® fluoroelastomer 248°F (120°C) *The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material. |
Notes |
All Polypropylene, Aluminum, Cast Iron, and SS Hytrel® fitted pumps include Hytrel® check balls and Buna N wetted o‑rings. Santoprene® fitted pumps include Santoprene® check balls and EPDM wetted o‑rings. Kynar® (PVDF) pumps fitted with Santoprene®, Hytrel®, or PTFE include PTFE check balls and o‑rings. Kynar®/EPDM fitted pumps include EPDM check balls and o‑rings. Viton® fitted pumps include Viton® check balls and o‑rings. Aluminum, Stainless Steel and Cast Iron pumps with a serial number prior to 487505 will require a kit without a "-1". |
Aerospace
623 productsAutomotive
623 productsChemical Delivery / Transfer
623 productsGas & Petroleum
623 productsMining
623 productsPaints & Dyes
644 productsPrinting & Ink
644 productsStone / Clay / Glass
623 productsWashing / Cleaning Systems
644 productsWater Treatment
623 productsKey | Part No | Description | Qty | shipping | price |
---|
804604
BODY ASSY 25-PP
$373.00802400
C SPOOL ASSY 20/25
$166.00Stay tuned for releases of new product reviews and videos on our YouTube channel!
