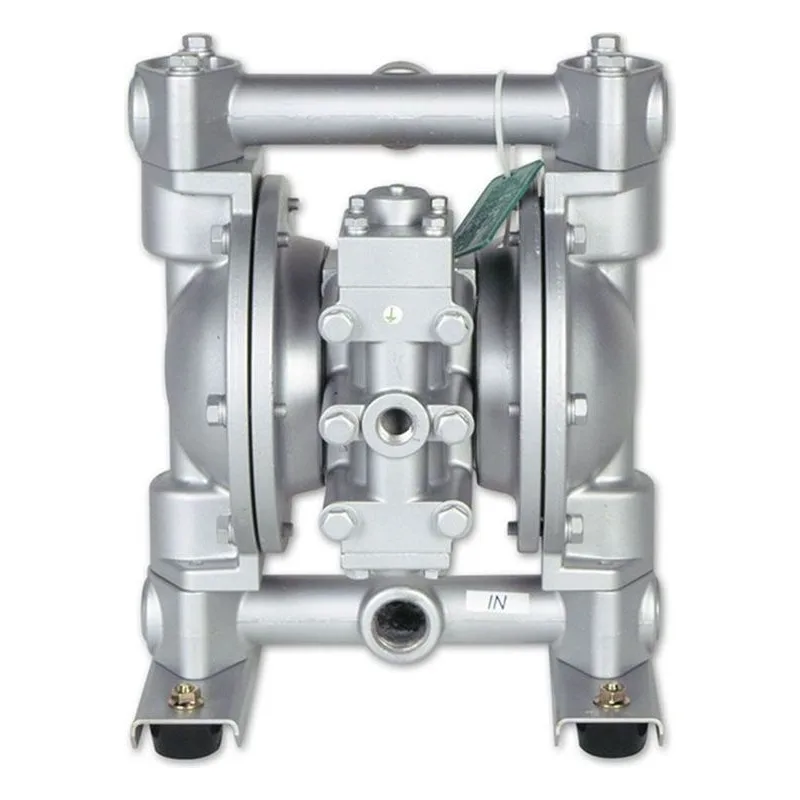

Image shown may not be actual product
Yamada Pumps NDP-25BSU, Model 855230, NDP-25 Series Air Operated Double Diaphragm Pump with High Performance PTFE/EPDM Backed Diaphragm. Stainless Steel Body, Aluminum Air Motor. 46.2 GPM Max Flow, 1" Female NPT Fluid Port.
Yamada Pumps NDP-25BSU, Model 855230, NDP-25 Series Air Operated Double Diaphragm Pump with High Performance PTFE/EPDM Backed Diaphragm. Stainless Steel Body, Aluminum Air Motor. 46.2 GPM Max Flow, 1" Female NPT Fluid Port.
Air Exhaust | 3/4" Female NPT (includes silencer) |
Air Inlet | 3/8" Female NPT (includes ball valve) |
Air Supply Pressure | 20 to 100 PSI (1.4 to 7 kgf/cm²) |
Diaphragm | High Performance PTFE/EPDM Backed |
Discharge Volume Per Cycle | 0.21 gallons (787 cc) |
Fluid Port | 1" Female NPT |
Liquid Temperature | 212°F (100°C) |
Material | Stainless Steel |
Max Cycles Per Minute | 210 |
Maximum Flow (GPM) | 46.2 GPM |
Max Suction Lift | 18 Feet |
Model Number | 855230 |
Model Series | NDP-25 |
Motor | Aluminum Air Motor |
Quick Specs | NDP-25BSU |
Solids (Inches) | 3/16" (4.8 mm) |
Features & Benefits |
---|
Port Dimensions Intake & discharge connection: Polypropylene (PPG) 1" Female NPT Kynar® (PVDF) 1" Female NPT Aluminum (ADC-12) 1" Female NPT Stainless Steel (316) 1" Female NPT Cast Iron 1" Female NPT Air inlet (incl. ball valve): 3/8" Female NPT Air exhaust (incl. silencer): 3/4" Female NPT ANSI Flange also available—consult Yamada. Maximum Liquid Temperature* Diaphragm Material Temperature Buna N 180°F (82°C) Neoprene 180°F (82°C) Santoprene® (TPO) 180°F (82°C) EPDM 212°F (100°C) PTFE 212°F (100°C) Hytrel® (TPEE) 248°F (120°C) Viton® fluoroelastomer 248°F (120°C) *The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material. |
Notes |
All Polypropylene, Aluminum, Cast Iron, and SS Hytrel® fitted pumps include Hytrel® check balls and Buna N wetted o‑rings. Santoprene® fitted pumps include Santoprene® check balls and EPDM wetted o‑rings. Kynar® (PVDF) pumps fitted with Santoprene®, Hytrel®, or PTFE include PTFE check balls and o‑rings. Kynar®/EPDM fitted pumps include EPDM check balls and o‑rings. Viton® fitted pumps include Viton® check balls and o‑rings. Aluminum, Stainless Steel and Cast Iron pumps with a serial number prior to 487505 will require a kit without a "-1". |
Aerospace
623 productsAutomotive
623 productsChemical Delivery / Transfer
623 productsGas & Petroleum
623 productsMining
623 productsPaints & Dyes
644 productsPrinting & Ink
644 productsStone / Clay / Glass
623 productsWashing / Cleaning Systems
644 productsWater Treatment
623 productsProduct | qty. | shipping | price | ||
---|---|---|---|---|---|
643044 | Ships in 1-2 Weeks | $11.00 | |||
711703 | Ships in 1-2 Weeks | $46.00 | |||
770691 | Ships in 1-2 Weeks | $20.00 | |||
711707 | Ships in 1-2 Weeks | $21.00 | |||
771130 | Ships in 1-2 Weeks | $8.00 | |||
832584 | Ships in | $407.00 | |||
772620 | Ships in | $27.00 | |||
711694 | Ships in 1-2 Weeks | $398.00 | |||
682263 | Ships in 1-2 Weeks | $8.00 | |||
682730 | Ships in 1-2 Weeks | $5.00 | |||
640154 | Ships in 1-2 Weeks | $8.00 | |||
621185 | Ships in 1-2 Weeks | $10.00 | |||
631937 | Ships in 1-2 Weeks | $4.00 | |||
621177 | Ships in 1-2 Weeks | $5.00 | |||
631937 | Ships in 1-2 Weeks | $4.00 | |||
804880 | Ships in 1-2 Weeks | $751.00 | |||
715939 | Ships in 1-2 Weeks | $28.00 | |||
802360 | Ships in 1-2 Weeks | $21.00 | |||
771057 | Ships in 1-2 Weeks | $8.00 | |||
640009 | Ships in 1-2 Weeks | $5.00 | |||
771945 | Ships in 1-2 Weeks | $46.00 | |||
708666 | Ships in 1-2 Weeks | $6.00 | |||
709812 | Ships in 1-2 Weeks | $118.00 | |||
685276 | Ships in 1-2 Weeks | $5.00 | |||
772703 | Ships in 1-2 Weeks | $35.00 | |||
685414 | Ships in 1-2 Weeks | $9.00 | |||
682486 | Ships in 1-2 Weeks | $5.00 | |||
714812 | Ships in | $65.00 | |||
771054 | Ships in 1-2 Weeks | $5.00 | |||
831271 | Ships in 1-2 Weeks | $418.00 | |||
802362 | Ships in 1-2 Weeks | $341.00 | |||
709161 | Ships in 1-2 Weeks | $8.00 | |||
640005 | Ships in 1-2 Weeks | $5.00 | |||
682704 | Ships in 1-2 Weeks | $5.00 | |||
771241 | Ships in 1-2 Weeks | $6.00 | |||
715961 | Ships in 1-2 Weeks | $9.00 | |||
802400 | Ships in 1-2 Weeks | $173.00 | |||
771053 | Ships in 1-2 Weeks | $9.00 | |||
710221 | Ships in 1-2 Weeks | $21.00 | |||
771240 | Ships in 1-2 Weeks | $8.00 | |||
711639 | Ships in 1-2 Weeks | $90.00 | |||
803931 | Ships in 1-2 Weeks | $199.00 | |||
771080 | Ships in 1-2 Weeks | $5.00 | |||
771914 | Ships in 1-2 Weeks | $9.00 | |||
709305 | Ships in 1-2 Weeks | $21.00 | |||
682262 | Ships in 1-2 Weeks | $5.00 | |||
682265 | Ships in 1-2 Weeks | $5.00 | |||
686970 | Ships in | $42.00 | |||
771056 | Ships in 1-2 Weeks | $8.00 | |||
804697 | Ships in 1-2 Weeks | $95.00 | |||
611148 | Ships in 1-2 Weeks | $5.00 | |||
682276 | Ships in 1-2 Weeks | $5.00 | |||
709156 | Ships in 1-2 Weeks | $8.00 | |||
770551 | Ships in 1-2 Weeks | $6.00 | |||
K25-MT-1 | Ships in 1-2 Weeks | $508.00 | |||
K225-AM | Ships in 1-2 Weeks | $350.00 |
