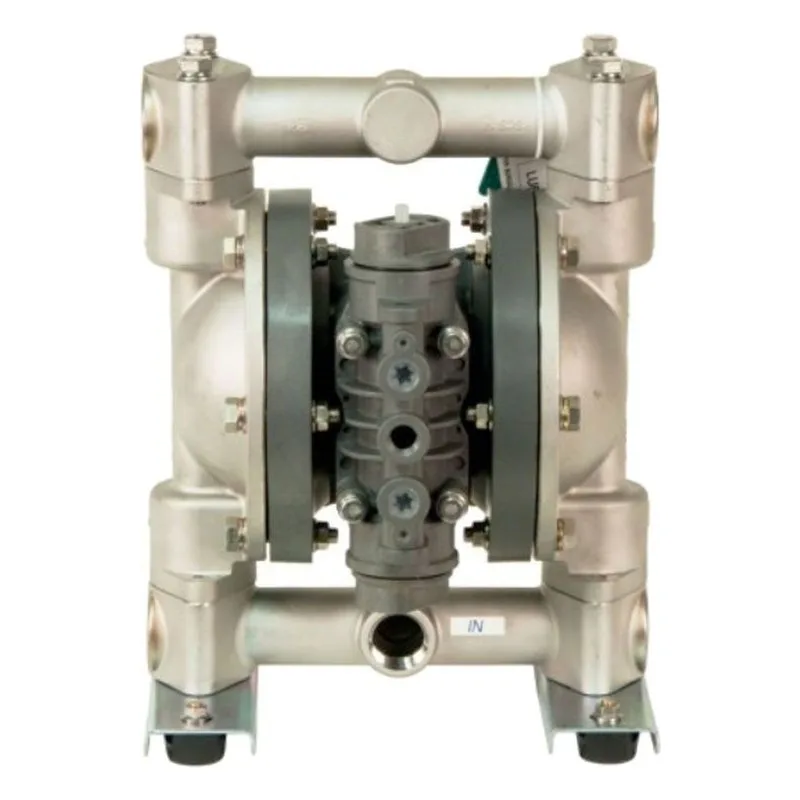

Image shown may not be actual product
NDP-25BSU-PP
Yamada America NDP-25BSU-PP NDP-25 Series Air Operated Double Diaphragm Pump, Model Number 854140-U. 316 Stainless Steel Body, Ultimate Diaphragm, PTFE Balls & O-Rings, Glass-Filled Polypropylene Air Motor. 1" FNPT Inlet & Outlet, 46.2 GPM Flow Rate, Passes up to 3/16" (4.8mm) Solids.
- Overview
- Series Info
- Reviews
- Literature/Manuals
- Repair Parts
NDP-25BSU-PP
Yamada America NDP-25BSU-PP NDP-25 Series Air Operated Double Diaphragm Pump, Model Number 854140-U. 316 Stainless Steel Body, Ultimate Diaphragm, PTFE Balls & O-Rings, Glass-Filled Polypropylene Air Motor. 1" FNPT Inlet & Outlet, 46.2 GPM Flow Rate, Passes up to 3/16" (4.8mm) Solids.
| Air Exhaust | 3/4" Female NPT (includes silencer) |
| Air Inlet | 3/8" Female NPT (includes ball valve) |
| Air Supply Pressure | 20-100 PSI |
| Connection Type | FNPT |
| Diaphragm | Ultimate (PTFE/EPDM) |
| Discharge NPT (Inches) | 1" |
| Discharge Volume Per Cycle | 0.21 Gallons |
| Fluid Port | 1" |
| Liquid Temperature | 212°F (100°C) |
| Material | 316 Stainless Steel |
| Max Cycles Per Minute | 210 |
| Maximum Flow (GPM) | 46.2 |
| Max Suction Lift | 18' |
| Model Number | 854140-U |
| Model Series | NDP-25 |
| Motor | Glass-Filled Polypropylene |
| Solids (Inches) | 3/16" (4.8mm) |
| Suction NPT (Inches) | 1" |
| Valve Balls | PTFE |
| Valve / Seat / O-Ring | PTFE O-Rings |
| Valve Type | Ball |
NDP-25 Series Information
| Features & Benefits |
|---|
| Port Dimensions Intake & discharge connection: Polypropylene (PPG) 1" Female NPT Kynar® (PVDF) 1" Female NPT Aluminum (ADC-12) 1" Female NPT Stainless Steel (316) 1" Female NPT Cast Iron 1" Female NPT Air inlet (incl. ball valve): 3/8" Female NPT Air exhaust (incl. silencer): 3/4" Female NPT ANSI Flange also available—consult Yamada. Maximum Liquid Temperature* Diaphragm Material Temperature Buna N 180°F (82°C) Neoprene 180°F (82°C) Santoprene® (TPO) 180°F (82°C) EPDM 212°F (100°C) PTFE 212°F (100°C) Hytrel® (TPEE) 248°F (120°C) Viton® fluoroelastomer 248°F (120°C) *The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material. |
| Notes |
| All Polypropylene, Aluminum, Cast Iron, and SS Hytrel® fitted pumps include Hytrel® check balls and Buna N wetted o‑rings. Santoprene® fitted pumps include Santoprene® check balls and EPDM wetted o‑rings. Kynar® (PVDF) pumps fitted with Santoprene®, Hytrel®, or PTFE include PTFE check balls and o‑rings. Kynar®/EPDM fitted pumps include EPDM check balls and o‑rings. Viton® fitted pumps include Viton® check balls and o‑rings. Aluminum, Stainless Steel and Cast Iron pumps with a serial number prior to 487505 will require a kit without a "-1". |
Categories
Aerospace
641 productsAutomotive
641 productsChemical Delivery / Transfer
641 productsGas & Petroleum
641 productsMining
641 productsPaints & Dyes
666 productsPrinting & Ink
666 productsStone / Clay / Glass
641 productsWashing / Cleaning Systems
662 productsWater Treatment
641 products
Repair Parts for NDP-25BSU-PP
| Product | qty. | shipping | price | ||
|---|---|---|---|---|---|
 | 643044 | Ships in 1-2 Weeks | $13.00 | ||
 | 711703 | Ships in 1-2 Weeks | $53.00 | ||
 | 770691 | Ships in 1-2 Weeks | $23.00 | ||
 | 711707 | Ships in 1-2 Weeks | $25.00 | ||
 | 771130 | Ships in 1-2 Weeks | $10.00 | ||
 | 832584 | Ships in | $458.00 | ||
| 772620 | Ships in | $32.00 | ||
 | 711694 | Ships in 1-2 Weeks | $448.00 | ||
 | 640154 | Ships in 1-2 Weeks | $10.00 | ||
| 686365 | Call for Shipping | ||||
| 686396 | Call for Shipping | ||||
 | 804604 | Ships in 1-2 Weeks | $437.00 | ||
| 804604 | Ships in 1-2 Weeks | $437.00 | ||
 | 772929 | Ships in 1-2 Weeks | $264.00 | ||
| 780326 | Ships in | $32.00 | ||
 | 685414 | Ships in 1-2 Weeks | $11.00 | ||
 | 685276 | Ships in 1-2 Weeks | $7.00 | ||
 | 772932 | Ships in 1-2 Weeks | $17.00 | ||
 | 640009 | Ships in 1-2 Weeks | $7.00 | ||
 | 802360 | Ships in 1-2 Weeks | $25.00 | ||
 | 708666 | Ships in 1-2 Weeks | $8.00 | ||
 | 772948 | Ships in 1-2 Weeks | $7.00 | ||
 | 686030 | Ships in 1-2 Weeks | $7.00 | ||
 | 640132 | Ships in 1-2 Weeks | $7.00 | ||
 | 772933 | Ships in 1-2 Weeks | $11.00 | ||
 | 714812 | Ships in | $74.00 | ||
 | 771054 | Ships in 1-2 Weeks | $7.00 | ||
 | 831271 | Ships in 1-2 Weeks | $470.00 | ||
 | 804608 | Ships in 1-2 Weeks | $385.00 | ||
 | 772991 | Ships in 1-2 Weeks | $11.00 | ||
 | 640002 | Ships in 1-2 Weeks | $7.00 | ||
 | 772946 | Ships in 1-2 Weeks | $13.00 | ||
 | 640043 | Ships in 1-2 Weeks | $7.00 | ||
 | 771241 | Ships in 1-2 Weeks | $8.00 | ||
 | 802400 | Ships in 1-2 Weeks | $195.00 | ||
 | 771053 | Ships in 1-2 Weeks | $11.00 | ||
 | 804609 | Ships in 1-2 Weeks | $195.00 | ||
 | 686029 | Ships in 1-2 Weeks | $7.00 | ||
 | 832903 | Ships in 1-2 Weeks | $102.00 | ||
 | 771914 | Ships in 1-2 Weeks | $11.00 | ||
 | 772947 | Ships in 1-2 Weeks | $14.00 | ||
| 686031 | Ships in 1-2 Weeks | $11.00 | ||
 | 686970 | Ships in | $49.00 | ||
| 772848 | Ships in 1-2 Weeks | $11.00 | ||
 | 804697 | Ships in 1-2 Weeks | $107.00 | ||
| 611148 | Ships in 1-2 Weeks | $7.00 | ||
| 682276 | Ships in 1-2 Weeks | $7.00 | ||
| 709156 | Ships in 1-2 Weeks | $10.00 | ||
 | 770551 | Ships in 1-2 Weeks | $8.00 | ||
 | 683635 | Ships in 1-2 Weeks | $7.00 | ||
 | 681300 | Ships in 1-2 Weeks | $7.00 | ||
 | 631329 | Ships in 1-2 Weeks | $7.00 | ||
| 686033 | Ships in 1-2 Weeks | $7.00 | ||
 | K25-MU-1 | Ships in | Call for pricing | ||
 | K225-AP | Ships in 1-2 Weeks | $311.00 | ||
