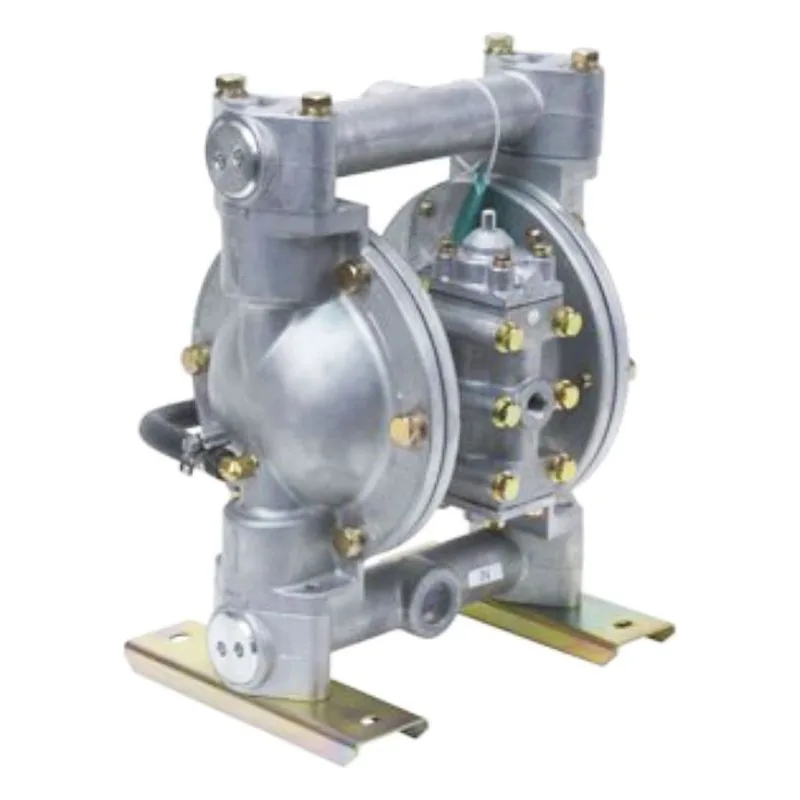

Yamada 851538-HP 2:1 High Pressure AODD Pump NDP-25BSN-HP

NDP-25 Series Information

Features & Benefits
Port Dimensions Intake & discharge connection: Polypropylene (PPG) 1" Female NPT Kynar® (PVDF) 1" Female NPT Aluminum (ADC-12) 1" Female NPT Stainless Steel (316) 1" Female NPT Cast Iron 1" Female NPT Air inlet (incl. ball valve): 3/8" Female NPT Air exhaust (incl. silencer): 3/4" Female NPT ANSI Flange also available—consult Yamada. Maximum Liquid Temperature* Diaphragm Material Temperature Buna N 180°F (82°C) Neoprene 180°F (82°C) Santoprene® (TPO) 180°F (82°C) EPDM 212°F (100°C) PTFE 212°F (100°C) Hytrel® (TPEE) 248°F (120°C) Viton® fluoroelastomer 248°F (120°C) *The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material.
Notes
All Polypropylene, Aluminum, Cast Iron, and SS Hytrel® fitted pumps include Hytrel® check balls and Buna N wetted o‑rings. Santoprene® fitted pumps include Santoprene® check balls and EPDM wetted o‑rings. Kynar® (PVDF) pumps fitted with Santoprene®, Hytrel®, or PTFE include PTFE check balls and o‑rings. Kynar®/EPDM fitted pumps include EPDM check balls and o‑rings. Viton® fitted pumps include Viton® check balls and o‑rings. Aluminum, Stainless Steel and Cast Iron pumps with a serial number prior to 487505 will require a kit without a "-1".

Air Inlet	3/8" FNPT
Air Supply Pressure	20 - 100 PSI (1.4 - 7 kfg/cm)
Diaphragm	Buna N
Discharge NPT (Inches)	1" FNPT
Discharge Volume Per Cycle	0.22 gallons (833 cc)
Fluid Port	1"
Material	Stainless Steel
Max Suction Lift	18'

Model Number	851538-HP
Motor	Aluminum
Solids (Inches)	3/16" (4.8mm)
Suction NPT (Inches)	1" FNPT
Type	Ball Valve
Valve Balls	Buna N
Valve / Seat / O-Ring	Buna N

Type	Title		Link
	Yamada Pumps NDP-25 Pump Manual		View
	Yamada Pumps NDP-25 PP Pump Manual		View
	Yamada Pumps NDP-25 Pump Specifications		View
	NDP-25 Operation Manual		View
	NDP-25BSE-HP High Pressure 2:1 Diaphragm Series Repair Parts		View

Product		shipping	price
	640044	Ships in 1-2 Weeks	$5.00	Select item
	711703	Ships in 1-2 Weeks	$46.00	Select item
	770581	Ships in 1-2 Weeks	$9.00	Select item
	711707	Ships in 1-2 Weeks	$21.00	Select item
	711707-HP	Ships in	$156.00	Select item
	640134	Ships in 1-2 Weeks	$5.00	Select item
	772962	Ships in 1-2 Weeks	$58.00	Select item
	716258	Ships in 1-2 Weeks	$14.00	Select item
	716259	Ships in 1-2 Weeks	$9.00	Select item
711964			Call for Shipping
711694-HP			Call for Shipping
	682263	Ships in 1-2 Weeks	$8.00	Select item
	682730	Ships in 1-2 Weeks	$5.00	Select item
-			Call for Shipping
	621185	Ships in 1-2 Weeks	$10.00	Select item
681937			Call for Shipping
	621177	Ships in 1-2 Weeks	$5.00	Select item
	631937	Ships in 1-2 Weeks	$4.00	Select item
803248-H			Call for Shipping
	715939	Ships in 1-2 Weeks	$28.00	Select item
	715939-HP	Ships in	$166.00	Select item
	802360	Ships in 1-2 Weeks	$21.00	Select item
	771057	Ships in 1-2 Weeks	$8.00	Select item
	640009	Ships in 1-2 Weeks	$5.00	Select item
	771945	Ships in 1-2 Weeks	$46.00	Select item
	708666	Ships in 1-2 Weeks	$6.00	Select item
	709812	Ships in 1-2 Weeks	$118.00	Select item
	685276	Ships in 1-2 Weeks	$5.00	Select item
	772703	Ships in 1-2 Weeks	$35.00	Select item
	685414	Ships in 1-2 Weeks	$9.00	Select item
	682486	Ships in 1-2 Weeks	$5.00	Select item
	709162	Ships in 1-2 Weeks	$50.00	Select item
	771054	Ships in 1-2 Weeks	$5.00	Select item
	831271	Ships in 1-2 Weeks	$418.00	Select item
	802362	Ships in 1-2 Weeks	$341.00	Select item
	709161	Ships in 1-2 Weeks	$8.00	Select item
	640005	Ships in 1-2 Weeks	$5.00	Select item
	682704	Ships in 1-2 Weeks	$5.00	Select item
	771241	Ships in 1-2 Weeks	$6.00	Select item
	715961	Ships in 1-2 Weeks	$9.00	Select item
	802400	Ships in 1-2 Weeks	$173.00	Select item
	771053	Ships in 1-2 Weeks	$9.00	Select item
	710221	Ships in 1-2 Weeks	$21.00	Select item
	771240	Ships in 1-2 Weeks	$8.00	Select item
	711639	Ships in 1-2 Weeks	$90.00	Select item
	803931	Ships in 1-2 Weeks	$199.00	Select item
	771080	Ships in 1-2 Weeks	$5.00	Select item
	771914	Ships in 1-2 Weeks	$9.00	Select item
	709305	Ships in 1-2 Weeks	$21.00	Select item
	682262	Ships in 1-2 Weeks	$5.00	Select item
	682265	Ships in 1-2 Weeks	$5.00	Select item
	686970	Ships in	$42.00	Select item
	771056	Ships in 1-2 Weeks	$8.00	Select item
	804697	Ships in 1-2 Weeks	$95.00	Select item
	611148	Ships in 1-2 Weeks	$5.00	Select item
	682276	Ships in 1-2 Weeks	$5.00	Select item
	709157	Ships in 1-2 Weeks	$8.00	Select item
	770551	Ships in 1-2 Weeks	$6.00	Select item
	K225-AM	Ships in 1-2 Weeks	$350.00	Select item

back to site

NDP-25BSN-HP

NDP-25BSN-HP

$3,185.00
