• NDP-25BFU Yamada NDP-25 Series AODD Diaphragm Pump 851536-U

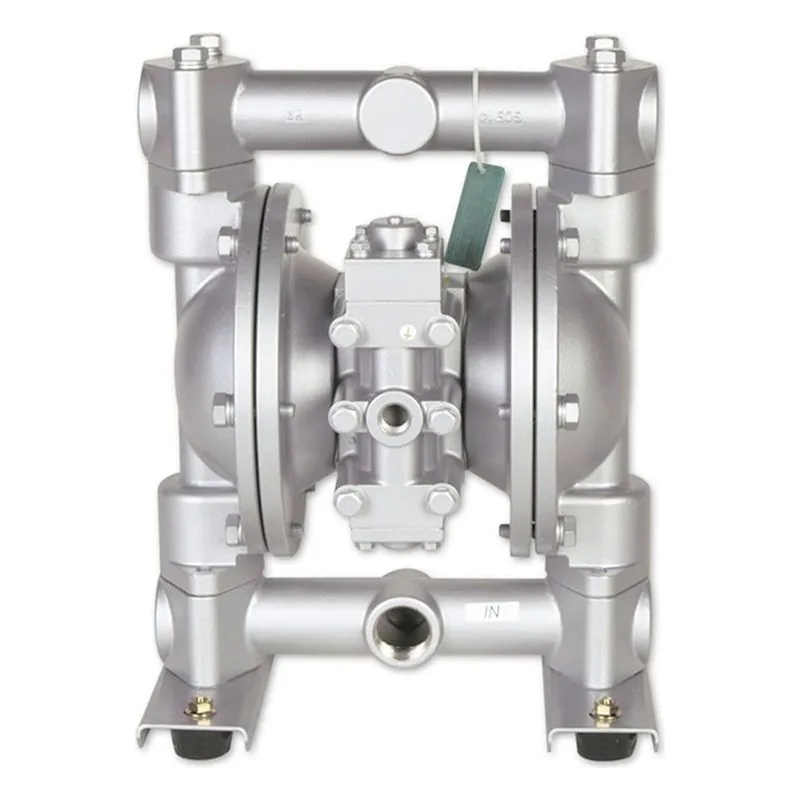

Image shown may not be actual product

Yamada

NDP-25BFU

0 reviews

Yamada NDP-25BFU NDP-25 Series Air Operated Double Diaphragm Pump, Model 851536-U. Cast Iron Body with Ball Valve, Ultimate PTFE/EPDM Diaphragm & Ball Materials, PTFE O-Rings. 1" NPT Inlet & Outlet, Repair Kit K25-MU-1 Available.

$2,875.00

Item: NDP-25BFU | Model #: 851536-U

NDP-25BFU

Yamada NDP-25BFU NDP-25 Series Air Operated Double Diaphragm Pump, Model 851536-U. Cast Iron Body with Ball Valve, Ultimate PTFE/EPDM Diaphragm & Ball Materials, PTFE O-Rings. 1" NPT Inlet & Outlet, Repair Kit K25-MU-1 Available.

Air Inlet3/8" FNPT
Air Supply Pressure20 - 100 PSI (1.4 - 7 kfg/cm)
DiaphragmUltimate PTFE/EPDM
Discharge NPT (Inches)1" NPT
Discharge Volume Per Cycle0.21 gallons (787 cc)
Fluid Port1"
MaterialCast Iron
Maximum Flow (GPM)46.2
Max Suction Lift18'
Model Number851536-U
MotorAluminum
Solids (Inches)3/16"
Suction NPT (Inches)1" NPT
TypeBall Valve
Valve BallsUltimate PTFE/EPDM
Valve / Seat / O-RingPTFE

NDP-25 Series Information

Features & Benefits
Port Dimensions
Intake & discharge connection:
Polypropylene (PPG) 1" Female NPT
Kynar® (PVDF) 1" Female NPT
Aluminum (ADC-12) 1" Female NPT
Stainless Steel (316) 1" Female NPT
Cast Iron 1" Female NPT
Air inlet (incl. ball valve): 3/8" Female NPT
Air exhaust (incl. silencer): 3/4" Female NPT
ANSI Flange also available—consult Yamada.

Maximum Liquid Temperature*
Diaphragm Material Temperature
Buna N 180°F (82°C)
Neoprene 180°F (82°C)
Santoprene® (TPO) 180°F (82°C)
EPDM 212°F (100°C)
PTFE 212°F (100°C)
Hytrel® (TPEE) 248°F (120°C)
Viton® fluoroelastomer 248°F (120°C)

*The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material.
Notes
All Polypropylene, Aluminum, Cast Iron, and SS Hytrel® fitted pumps include Hytrel® check balls and Buna N wetted o‑rings. Santoprene® fitted pumps include Santoprene® check balls and EPDM wetted o‑rings. Kynar® (PVDF) pumps fitted with Santoprene®, Hytrel®, or PTFE include PTFE check balls and o‑rings. Kynar®/EPDM fitted pumps include EPDM check balls and o‑rings. Viton® fitted pumps include Viton® check balls and o‑rings. Aluminum, Stainless Steel and Cast Iron pumps with a serial number prior to 487505 will require a kit without a "-1".

Categories

0 Reviews

Add a Review

You need to sign in to add a review.

TypeTitleLink

Yamada Pumps NDP-25 Pump Manual

View

Yamada Pumps NDP-25 PP Pump Manual

View

Yamada Pumps NDP-25 Pump Specifications

View

NDP-25 Operation Manual

View

NDP-25BFU Ultimate Diaphragm Series Repair Parts

View

Repair Parts for NDP-25BFU

Productqty.shippingprice
643044

643044

Ships in 1-2 Weeks $11.00
711703

711703

Ships in 1-2 Weeks $46.00
770691

770691

Ships in 1-2 Weeks $20.00
590087

590087

Ships in 1-2 Weeks $21.00
771130

771130

Ships in 1-2 Weeks $8.00
832584

832584

Ships in $407.00
772620

772620

Ships in $27.00
711695

711695

Ships in 1-2 Weeks $341.00
682263

682263

Ships in 1-2 Weeks $8.00
682730

682730

Ships in 1-2 Weeks $5.00
640154

640154

Ships in 1-2 Weeks $8.00
611185

611185

Ships in 1-2 Weeks $4.00
631917

631917

Ships in 1-2 Weeks $5.00
611177

611177

Ships in 1-2 Weeks $5.00
631917

631917

Ships in 1-2 Weeks $5.00
804880

804880

Ships in 1-2 Weeks $751.00
715939

715939

Ships in 1-2 Weeks $28.00
802360

802360

Ships in 1-2 Weeks $21.00
771057

771057

Ships in 1-2 Weeks $8.00
640009

640009

Ships in 1-2 Weeks $5.00
771945

771945

Ships in 1-2 Weeks $46.00
708666

708666

Ships in 1-2 Weeks $6.00
709812

709812

Ships in 1-2 Weeks $118.00
685276

685276

Ships in 1-2 Weeks $5.00
772703

772703

Ships in 1-2 Weeks $35.00
685414

685414

Ships in 1-2 Weeks $9.00
682486

682486

Ships in 1-2 Weeks $5.00
714812

714812

Ships in $65.00
771054

771054

Ships in 1-2 Weeks $5.00
831322

831322

Ships in 1-2 Weeks $379.00
802362

802362

Ships in 1-2 Weeks $341.00
709161

709161

Ships in 1-2 Weeks $8.00
640005

640005

Ships in 1-2 Weeks $5.00
682704

682704

Ships in 1-2 Weeks $5.00
771241

771241

Ships in 1-2 Weeks $6.00
715961

715961

Ships in 1-2 Weeks $9.00
802400

802400

Ships in 1-2 Weeks $173.00
771053

771053

Ships in 1-2 Weeks $9.00
710221

710221

Ships in 1-2 Weeks $21.00
771240

771240

Ships in 1-2 Weeks $8.00
711639

711639

Ships in 1-2 Weeks $90.00
803931

803931

Ships in 1-2 Weeks $199.00
771080

771080

Ships in 1-2 Weeks $5.00
771914

771914

Ships in 1-2 Weeks $9.00
709305

709305

Ships in 1-2 Weeks $21.00
682262

682262

Ships in 1-2 Weeks $5.00
682265

682265

Ships in 1-2 Weeks $5.00
686970

686970

Ships in $42.00
771056

771056

Ships in 1-2 Weeks $8.00
804697

804697

Ships in 1-2 Weeks $95.00
611148

611148

Ships in 1-2 Weeks $5.00
682276

682276

Ships in 1-2 Weeks $5.00
709156

709156

Ships in 1-2 Weeks $8.00
770551

770551

Ships in 1-2 Weeks $6.00
K25-MU-1

K25-MU-1

Ships in $970.00
K225-AM

K225-AM

Ships in 1-2 Weeks $350.00
0 items selected.Add items to cart
