NDP-25BAS-HP

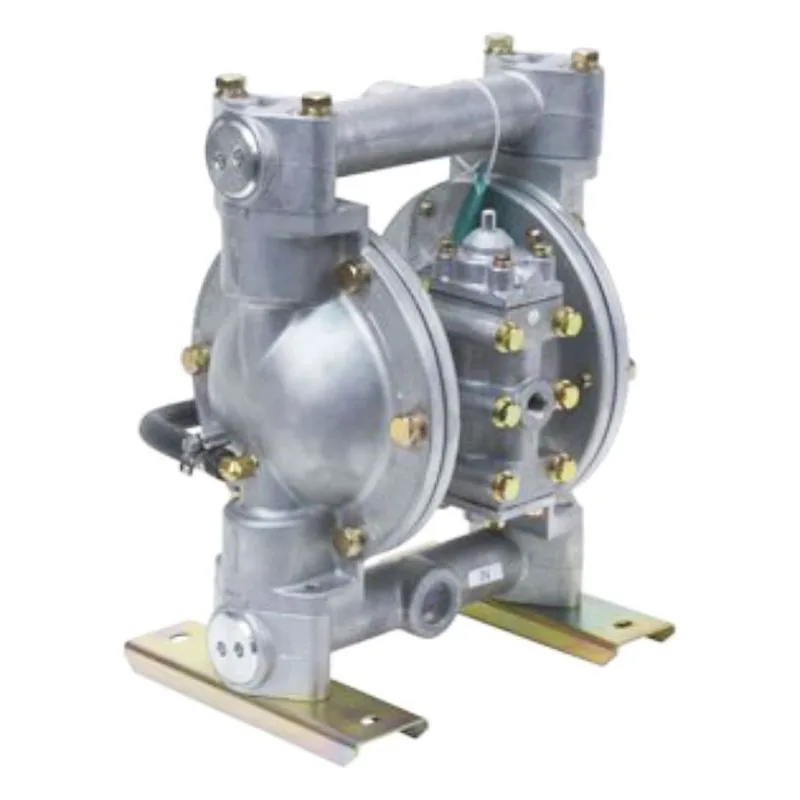

Image shown may not be actual product

NDP-25BAS-HP

0 reviews

Yamada America NDP-25BAS-HP NDP-25 Series 2:1 High Pressure Air Operated Double Diaphragm Pump, Model Number 852701-HP. Aluminum Body, Santoprene Diaphragm & Balls, EPDM O-Rings, Aluminum Air Motor. 1" FNPT Inlet & Outlet, 23.1 GPM Flow Rate, 180 PSI, Passes up to 3/16" (4.8mm) Solids.

$1,835.00

Best Price Guarantee!
367PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: NDP-25BAS-HP | Model #: 852701-HP

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

NDP-25BAS-HP

Air Exhaust	3/4" Female NPT (includes silencer)
Air Inlet	3/8" Female NPT (includes ball valve)
Air Supply Pressure	180 PSI
Connection Type	FNPT
Diaphragm	Santoprene (TPO)
Discharge NPT (Inches)	1"
Discharge Volume Per Cycle	0.22 Gallons
Fluid Port	1"
Liquid Temperature	180°F (82°C)
Material	Aluminum
Max Cycles Per Minute	210
Maximum Flow (GPM)	23.1

Max Suction Lift	18'
Model Number	852701-HP
Model Series	NDP-25
Motor	Aluminum
Product Notes	2:1 High Pressure
Solids (Inches)	3/16" (4.8mm)
Suction NPT (Inches)	1"
Valve Balls	Santoprene (TPO)
Valve / Seat / O-Ring	EPDM O-Rings
Valve Type	Ball

NDP-25 Series Information

Features & Benefits
Port Dimensions Intake & discharge connection: Polypropylene (PPG) 1" Female NPT Kynar® (PVDF) 1" Female NPT Aluminum (ADC-12) 1" Female NPT Stainless Steel (316) 1" Female NPT Cast Iron 1" Female NPT Air inlet (incl. ball valve): 3/8" Female NPT Air exhaust (incl. silencer): 3/4" Female NPT ANSI Flange also available—consult Yamada. Maximum Liquid Temperature* Diaphragm Material Temperature Buna N 180°F (82°C) Neoprene 180°F (82°C) Santoprene® (TPO) 180°F (82°C) EPDM 212°F (100°C) PTFE 212°F (100°C) Hytrel® (TPEE) 248°F (120°C) Viton® fluoroelastomer 248°F (120°C) *The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material.
Notes
All Polypropylene, Aluminum, Cast Iron, and SS Hytrel® fitted pumps include Hytrel® check balls and Buna N wetted o‑rings. Santoprene® fitted pumps include Santoprene® check balls and EPDM wetted o‑rings. Kynar® (PVDF) pumps fitted with Santoprene®, Hytrel®, or PTFE include PTFE check balls and o‑rings. Kynar®/EPDM fitted pumps include EPDM check balls and o‑rings. Viton® fitted pumps include Viton® check balls and o‑rings. Aluminum, Stainless Steel and Cast Iron pumps with a serial number prior to 487505 will require a kit without a "-1".

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	Yamada Pumps NDP-25 Pump Manual		View
	Yamada Pumps NDP-25 PP Pump Manual		View
	Yamada Pumps NDP-25 Pump Specifications		View
	NDP-25 Operation Manual		View

Repair Parts for NDP-25BAS-HP

Product		shipping	price
	683997	Ships in 1-2 Weeks	$10.00	Select item
	711702	Ships in 1-2 Weeks	$25.00	Select item
	770590	Ships in 1-2 Weeks	$11.00	Select item
	590087	Ships in 1-2 Weeks	$25.00	Select item
	711707-HP	Ships in	$176.00	Select item
	683996	Ships in 1-2 Weeks	$10.00	Select item
	771974	Ships in 1-2 Weeks	$61.00	Select item
	716258	Ships in 1-2 Weeks	$17.00	Select item
	716259	Ships in 1-2 Weeks	$11.00	Select item
	711687	Ships in 1-2 Weeks	$117.00	Select item
	711687-HP	Ships in	$94.00	Select item
	682263	Ships in 1-2 Weeks	$10.00	Select item
	682730	Ships in 1-2 Weeks	$7.00	Select item
	640154	Ships in 1-2 Weeks	$10.00	Select item
	611185	Ships in 1-2 Weeks	$6.00	Select item
	631917	Ships in 1-2 Weeks	$7.00	Select item
	611177	Ships in 1-2 Weeks	$7.00	Select item
	631917	Ships in 1-2 Weeks	$7.00	Select item
803248-HP			Call for Shipping
	715939	Ships in 1-2 Weeks	$33.00	Select item
	715939-HP	Ships in	$188.00	Select item
	802360	Ships in 1-2 Weeks	$25.00	Select item
	771057	Ships in 1-2 Weeks	$10.00	Select item
	640009	Ships in 1-2 Weeks	$7.00	Select item
	771945	Ships in 1-2 Weeks	$27.00	Select item
	708666	Ships in 1-2 Weeks	$8.00	Select item
	709812	Ships in 1-2 Weeks	$133.00	Select item
	685276	Ships in 1-2 Weeks	$7.00	Select item
	772703	Ships in 1-2 Weeks	$40.00	Select item
	685414	Ships in 1-2 Weeks	$11.00	Select item
	682486	Ships in 1-2 Weeks	$7.00	Select item
	709162	Ships in 1-2 Weeks	$57.00	Select item
	771054	Ships in 1-2 Weeks	$7.00	Select item
	831281	Ships in 1-2 Weeks	$113.00	Select item
	802362	Ships in 1-2 Weeks	$385.00	Select item
	709161	Ships in 1-2 Weeks	$10.00	Select item
	640005	Ships in 1-2 Weeks	$7.00	Select item
	682704	Ships in 1-2 Weeks	$7.00	Select item
	771241	Ships in 1-2 Weeks	$8.00	Select item
	715961	Ships in 1-2 Weeks	$11.00	Select item
	802400	Ships in 1-2 Weeks	$195.00	Select item
	771053	Ships in 1-2 Weeks	$11.00	Select item
	710221	Ships in 1-2 Weeks	$25.00	Select item
	771240	Ships in 1-2 Weeks	$10.00	Select item
	711639	Ships in 1-2 Weeks	$102.00	Select item
	803931	Ships in 1-2 Weeks	$224.00	Select item
	771080	Ships in 1-2 Weeks	$7.00	Select item
	771914	Ships in 1-2 Weeks	$11.00	Select item
	709305	Ships in 1-2 Weeks	$25.00	Select item
	682262	Ships in 1-2 Weeks	$7.00	Select item
	682265	Ships in 1-2 Weeks	$7.00	Select item
	686970	Ships in	$49.00	Select item
	771056	Ships in 1-2 Weeks	$10.00	Select item
	804697	Ships in 1-2 Weeks	$107.00	Select item
	611148	Ships in 1-2 Weeks	$7.00	Select item
	682276	Ships in 1-2 Weeks	$7.00	Select item
	709156	Ships in 1-2 Weeks	$10.00	Select item
	770551	Ships in 1-2 Weeks	$8.00	Select item
	K225-AM	Ships in 1-2 Weeks	$324.00	Select item
