NDP-25BAE-PP

Image shown may not be actual product

NDP-25BAE-PP

0 reviews

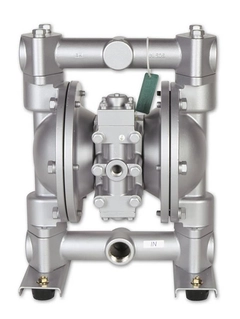

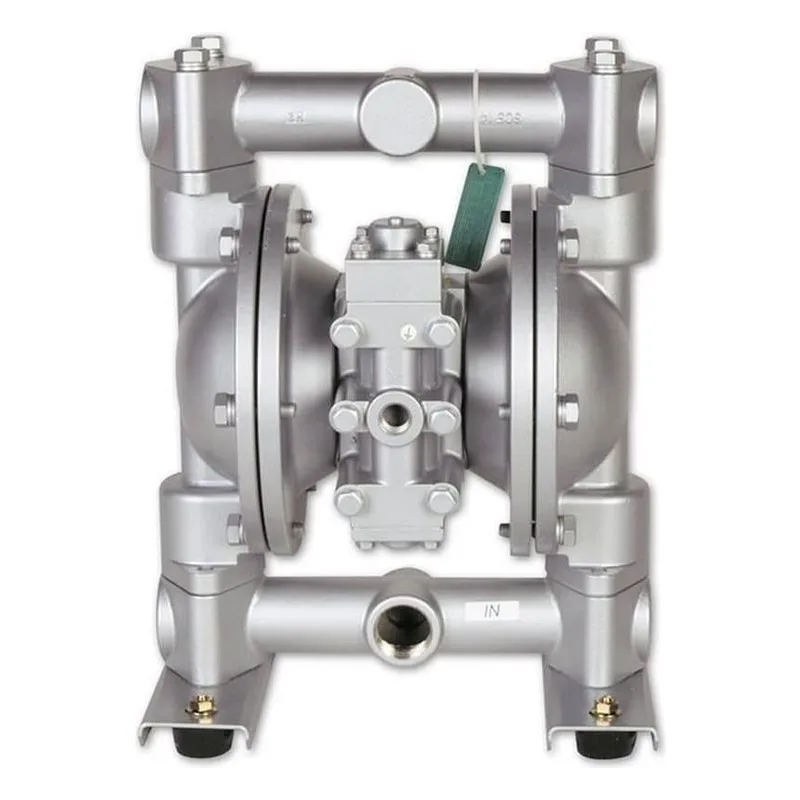

Yamada America NDP-25BAE-PP NDP-25 Series Air Operated Double Diaphragm Pump, Model Number 854124. Aluminum Body, Nordel Diaphragm, Balls & O-Rings, Glass-Filled Polypropylene Air Motor. 1" FNPT Inlet & Outlet, 46.2 GPM Flow Rate, Passes up to 3/16" (4.8mm) Solids.

$1,195.00

Best Price Guarantee!
239PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: NDP-25BAE-PP | Model #: 854124

Repair Parts Exploded View Diagram

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

NDP-25BAE-PP

Air Exhaust	3/4" Female NPT (includes silencer)
Air Inlet	3/8" Female NPT (includes ball valve)
Air Supply Pressure	20-100 PSI
Connection Type	FNPT
Diaphragm	Nordel (EPDM)
Discharge NPT (Inches)	1"
Discharge Volume Per Cycle	0.22 Gallons
Fluid Port	1"
Liquid Temperature	212°F (100°C)
Material	Aluminum
Max Cycles Per Minute	210

Maximum Flow (GPM)	46.2
Max Suction Lift	18'
Model Number	854124
Model Series	NDP-25
Motor	Glass-Filled Polypropylene
Solids (Inches)	3/16" (4.8mm)
Suction NPT (Inches)	1"
Valve Balls	Nordel (EPDM)
Valve / Seat / O-Ring	Nordel (EPDM) O-Rings
Valve Type	Ball

NDP-25 Series Information

Features & Benefits
Port Dimensions Intake & discharge connection: Polypropylene (PPG) 1" Female NPT Kynar® (PVDF) 1" Female NPT Aluminum (ADC-12) 1" Female NPT Stainless Steel (316) 1" Female NPT Cast Iron 1" Female NPT Air inlet (incl. ball valve): 3/8" Female NPT Air exhaust (incl. silencer): 3/4" Female NPT ANSI Flange also available—consult Yamada. Maximum Liquid Temperature* Diaphragm Material Temperature Buna N 180°F (82°C) Neoprene 180°F (82°C) Santoprene® (TPO) 180°F (82°C) EPDM 212°F (100°C) PTFE 212°F (100°C) Hytrel® (TPEE) 248°F (120°C) Viton® fluoroelastomer 248°F (120°C) *The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material.
Notes
All Polypropylene, Aluminum, Cast Iron, and SS Hytrel® fitted pumps include Hytrel® check balls and Buna N wetted o‑rings. Santoprene® fitted pumps include Santoprene® check balls and EPDM wetted o‑rings. Kynar® (PVDF) pumps fitted with Santoprene®, Hytrel®, or PTFE include PTFE check balls and o‑rings. Kynar®/EPDM fitted pumps include EPDM check balls and o‑rings. Viton® fitted pumps include Viton® check balls and o‑rings. Aluminum, Stainless Steel and Cast Iron pumps with a serial number prior to 487505 will require a kit without a "-1".
