• Yamada 854999 G25 Series G25AH11 Double Diaphragm Pump.

Image shown may not be actual product

Yamada

854999

0 reviews

Yamada G25AH11 AODD Pump, G25 Global Series Model 854999. Aluminum with 1" Female NPT Connections, Hytrel Diaphragms, Buna-N Ball Valve & O-Rings, Aluminum Air Motor. Liquid End Repair Kit KG25-AH & Air Motor Kit KG25-AM-M Available.

$544.00

Item: 854999 | Model #: G25AH11

854999

Yamada G25AH11 AODD Pump, G25 Global Series Model 854999. Aluminum with 1" Female NPT Connections, Hytrel Diaphragms, Buna-N Ball Valve & O-Rings, Aluminum Air Motor. Liquid End Repair Kit KG25-AH & Air Motor Kit KG25-AM-M Available.

Air Exhaust3/4" Female NPT
Air Inlet3/8" Female NPT
Air Supply Pressure20 to 100 PSI (1.4 to 7 kgf/cm²)
Connections / Discharge (Inches)1" Female NPT
DiaphragmHytrel
Liquid Temperature248°F (120°C)
MaterialAluminum
Maximum Flow (GPM)40.1 GPM
Model NumberG25AH11
Model SeriesG25AH
MotorAluminum Air Motor
Quick SpecsG25AH11 TPEE Fitted
Solids (Inches)1/8" dia. (3.3 mm)

NDP-25 Series Information

Features & Benefits
Port Dimensions
Intake & discharge connection:
Polypropylene (PPG) 1" Female NPT
Kynar® (PVDF) 1" Female NPT
Aluminum (ADC-12) 1" Female NPT
Stainless Steel (316) 1" Female NPT
Cast Iron 1" Female NPT
Air inlet (incl. ball valve): 3/8" Female NPT
Air exhaust (incl. silencer): 3/4" Female NPT
ANSI Flange also available—consult Yamada.

Maximum Liquid Temperature*
Diaphragm Material Temperature
Buna N 180°F (82°C)
Neoprene 180°F (82°C)
Santoprene® (TPO) 180°F (82°C)
EPDM 212°F (100°C)
PTFE 212°F (100°C)
Hytrel® (TPEE) 248°F (120°C)
Viton® fluoroelastomer 248°F (120°C)

*The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material.
Notes
All Polypropylene, Aluminum, Cast Iron, and SS Hytrel® fitted pumps include Hytrel® check balls and Buna N wetted o‑rings. Santoprene® fitted pumps include Santoprene® check balls and EPDM wetted o‑rings. Kynar® (PVDF) pumps fitted with Santoprene®, Hytrel®, or PTFE include PTFE check balls and o‑rings. Kynar®/EPDM fitted pumps include EPDM check balls and o‑rings. Viton® fitted pumps include Viton® check balls and o‑rings. Aluminum, Stainless Steel and Cast Iron pumps with a serial number prior to 487505 will require a kit without a "-1".

Categories

0 Reviews

Add a Review

You need to sign in to add a review.

TypeTitleLink

854999 Specifications & Pump Curve

View

Yamada Pumps NDP-25 Pump Manual

View

Yamada Pumps NDP-25 PP Pump Manual

View

Yamada Pumps NDP-25 Pump Specifications

View

NDP-25 Operation Manual

View

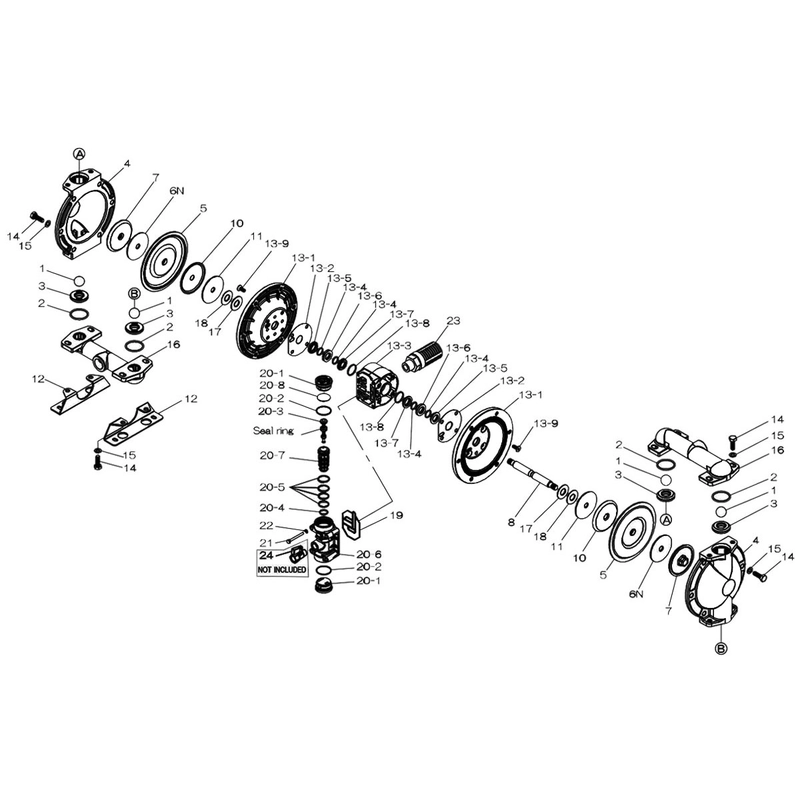

854999 / 854995 / 855001 Pump Repair Parts Breakdown

View

Repair Parts for 854999

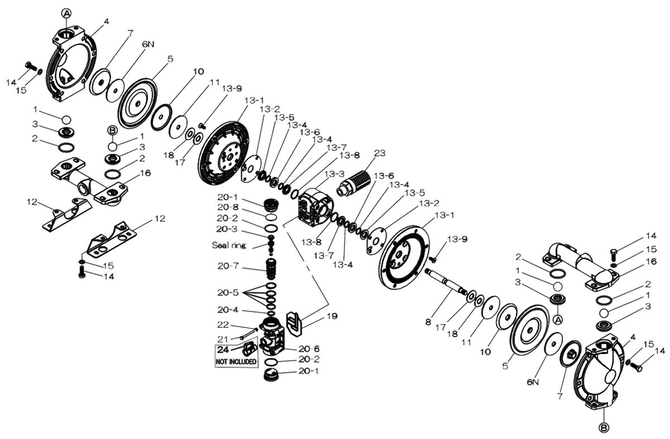

  • G25AH G25AN G25AS 854999 854995 855001 Repair Parts
Productqty.shippingprice
KG25-AH

KG25-AH

Ships in $180.00
KG25-AM-M

KG25-AM-M

Ships in $147.00
773126

773126

Ships in 1-2 Weeks $13.00
640041 Call for Shipping
581130

581130

Ships in $6.00
716959

716959

Ships in $83.00
771363

771363

Ships in 1-2 Weeks $58.00
716958

716958

Ships in $13.00
717224

717224

Ships in $67.00
716258

716258

Ships in 1-2 Weeks $14.00
716259

716259

Ships in 1-2 Weeks $9.00
717031

717031

Ships in $20.00
805262 Call for Shipping
717223

717223

Ships in $51.00
773441

773441

Ships in $12.00
717219

717219

Ships in $84.00
640016

640016

Ships in 1-2 Weeks $5.00
773452 Call for Shipping
773451 Call for Shipping
773450 Call for Shipping
683112

683112

Ships in $5.00
682486

682486

Ships in 1-2 Weeks $5.00
611175

611175

Ships in 1-2 Weeks $5.00
631917

631917

Ships in 1-2 Weeks $5.00
717218

717218

Ships in $87.00
771054

771054

Ships in 1-2 Weeks $5.00
773443

773443

Ships in $6.00
773440

773440

Ships in $6.00
805265 Call for Shipping
716917

716917

Ships in $17.00
686734

686734

Ships in $5.00
805208

805208

Ships in $49.00
685453

685453

Ships in $4.00
685276

685276

Ships in 1-2 Weeks $5.00
717222

717222

Ships in $83.00
773444

773444

Ships in $70.00
773280

773280

Ships in $6.00
611111 Call for Shipping
631915

631915

Ships in $5.00
804697

804697

Ships in 1-2 Weeks $95.00
771132

771132

Ships in 1-2 Weeks $6.00
713148

713148

Ships in 1-2 Weeks $54.00
0 items selected.Add items to cart
