854997

Image shown may not be actual product

854997

0 reviews

Yamada America 854997 G25 Global Series Air Operated Double Diaphragm Pump, Model Number G25AT11. Aluminum Body, PTFE Diaphragm, Balls & O-Rings, Aluminum Air Motor. 1" FNPT Inlet & Outlet, 40.1 GPM Flow Rate, Passes up to 1/8" (3mm) Solids.

$930.00

Best Price Guarantee!
186PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: 854997 | Model #: G25AT11

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

854997

Air Exhaust	3/4" Female NPT (includes silencer)
Air Inlet	3/8" Female NPT (includes ball valve)
Air Supply Pressure	20-100 PSI
Connection Type	FNPT
Diaphragm	PTFE
Discharge NPT (Inches)	1"
Discharge Volume Per Cycle	0.118 Gallons
Fluid Port	1"
Liquid Temperature	212°F (100°C)
Material	Aluminum
Max Cycles Per Minute	297

Maximum Flow (GPM)	40.1
Model Number	G25AT11
Model Series	G25
Motor	Aluminum
Solids (Inches)	1/8" (3mm)
Suction NPT (Inches)	1"
Valve Balls	PTFE
Valve / Seat / O-Ring	PTFE O-Rings
Valve Type	Ball

NDP-25 Series Information

Features & Benefits
Port Dimensions Intake & discharge connection: Polypropylene (PPG) 1" Female NPT Kynar® (PVDF) 1" Female NPT Aluminum (ADC-12) 1" Female NPT Stainless Steel (316) 1" Female NPT Cast Iron 1" Female NPT Air inlet (incl. ball valve): 3/8" Female NPT Air exhaust (incl. silencer): 3/4" Female NPT ANSI Flange also available—consult Yamada. Maximum Liquid Temperature* Diaphragm Material Temperature Buna N 180°F (82°C) Neoprene 180°F (82°C) Santoprene® (TPO) 180°F (82°C) EPDM 212°F (100°C) PTFE 212°F (100°C) Hytrel® (TPEE) 248°F (120°C) Viton® fluoroelastomer 248°F (120°C) *The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material.
Notes
All Polypropylene, Aluminum, Cast Iron, and SS Hytrel® fitted pumps include Hytrel® check balls and Buna N wetted o‑rings. Santoprene® fitted pumps include Santoprene® check balls and EPDM wetted o‑rings. Kynar® (PVDF) pumps fitted with Santoprene®, Hytrel®, or PTFE include PTFE check balls and o‑rings. Kynar®/EPDM fitted pumps include EPDM check balls and o‑rings. Viton® fitted pumps include Viton® check balls and o‑rings. Aluminum, Stainless Steel and Cast Iron pumps with a serial number prior to 487505 will require a kit without a "-1".

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	854997 Specifications & Pump Curve		View
	Yamada Pumps NDP-25 Pump Manual		View
	Yamada Pumps NDP-25 PP Pump Manual		View
	Yamada Pumps NDP-25 Pump Specifications		View
	NDP-25 Operation Manual		View

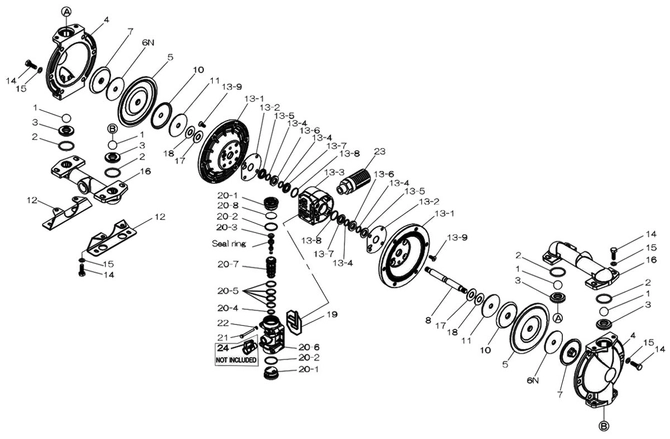

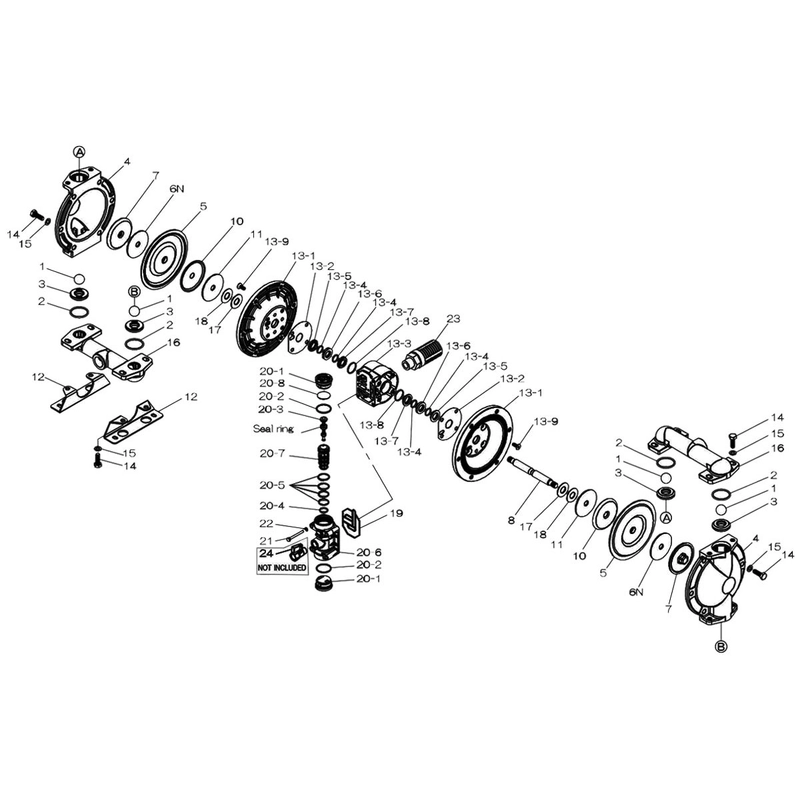

	G25AT11 854997 Pump Repair Parts Breakdown		View

Repair Parts for 854997

Product		shipping	price
	KG25-AT	Ships in	$484.00	Select item
	KG25-AM-M	Ships in	$145.00	Select item
	770736	Ships in 1-2 Weeks	$17.00	Select item
	643041	Ships in 1-2 Weeks	$13.00	Select item
	717246	Ships in	$44.00	Select item
	716959	Ships in	$95.00	Select item
	771110	Ships in 1-2 Weeks	$186.00	Select item
	717095	Ships in	$29.00	Select item
	717225	Ships in	$76.00	Select item
	643013	Ships in 1-2 Weeks	$8.00	Select item
	717226	Ships in	$63.00	Select item
	717031	Ships in	$23.00	Select item
805262			Call for Shipping
	717223	Ships in	$58.00	Select item
	773441	Ships in	$14.00	Select item
	717219	Ships in	$96.00	Select item
	640016	Ships in 1-2 Weeks	$7.00	Select item
773452			Call for Shipping
773451			Call for Shipping
773450			Call for Shipping
	683112	Ships in	$7.00	Select item
	682486	Ships in 1-2 Weeks	$7.00	Select item
	611175	Ships in 1-2 Weeks	$7.00	Select item
	631917	Ships in 1-2 Weeks	$7.00	Select item
	717218	Ships in	$99.00	Select item
	771054	Ships in 1-2 Weeks	$7.00	Select item
	773440	Ships in	$8.00	Select item
805265			Call for Shipping
	716917	Ships in	$20.00	Select item
	686734	Ships in	$7.00	Select item
	805208	Ships in	$28.00	Select item
	685453	Ships in	$6.00	Select item
	685276	Ships in 1-2 Weeks	$7.00	Select item
	717222	Ships in	$95.00	Select item
	773444	Ships in	$80.00	Select item
	773280	Ships in	$8.00	Select item
611111			Call for Shipping
	631915	Ships in	$7.00	Select item
	804697	Ships in 1-2 Weeks	$107.00	Select item
	771132	Ships in 1-2 Weeks	$8.00	Select item
	713148	Ships in 1-2 Weeks	$61.00	Select item
