854985

Image shown may not be actual product

854985

0 reviews

Yamada America 854985 G15 Global Series Air Operated Double Diaphragm Pump, Model Number G15VT11. Kynar Body, PTFE Diaphragm, Balls & O-Rings, Polypropylene Air Motor. 1/2" FNPT Inlet & Outlet, 16.6 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.

$1,045.00

Best Price Guarantee!
209PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: 854985 | Model #: G15VT11

Overview
Reviews
Literature/Manuals
Repair Parts

854985

Air Exhaust	3/8" Female NPT
Air Inlet	1/4" Female NPT
Air Supply Pressure	20-100 PSI
Connection Type	FNPT
Diaphragm	PTFE
Discharge NPT (Inches)	1/2"
Discharge Volume Per Cycle	0.040 - 0.050 Gallons
Fluid Port	1/2"
Liquid Temperature	212°F (100°C)
Material	Kynar (PVDF)
Max Cycles Per Minute	373

Maximum Flow (GPM)	16.6
Max Suction Lift	11'
Model Number	G15VT11
Model Series	G15
Motor	Polypropylene
Solids (Inches)	1/32" (1mm)
Suction NPT (Inches)	1/2"
Valve Balls	PTFE
Valve / Seat / O-Ring	PTFE O-Rings
Valve Type	Ball

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	Yamada G15 Global Series Brochure		View
	G15 Features & Benefits		View
	G15 Specifications		View

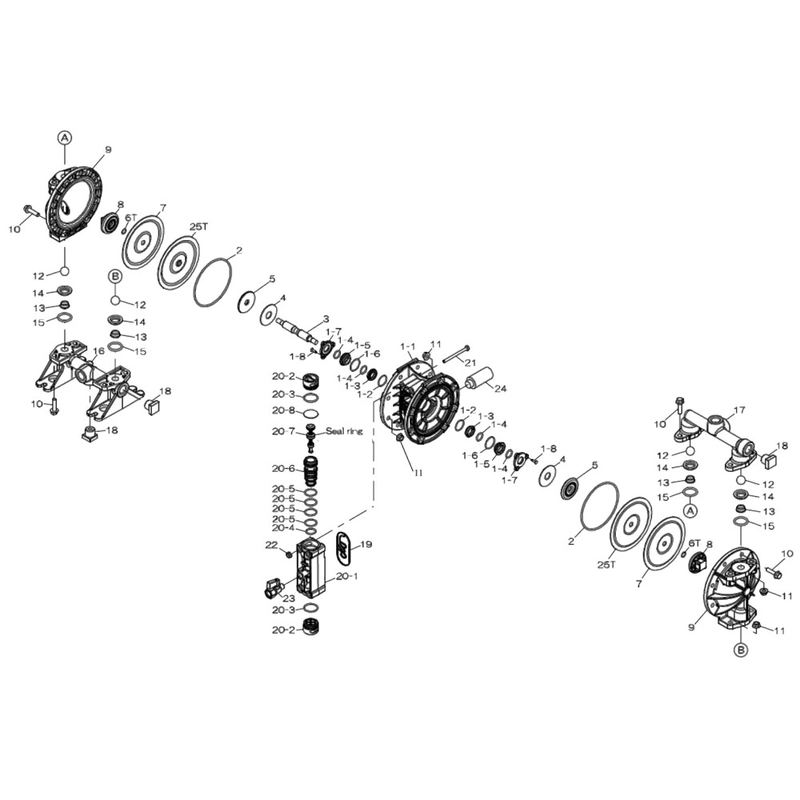

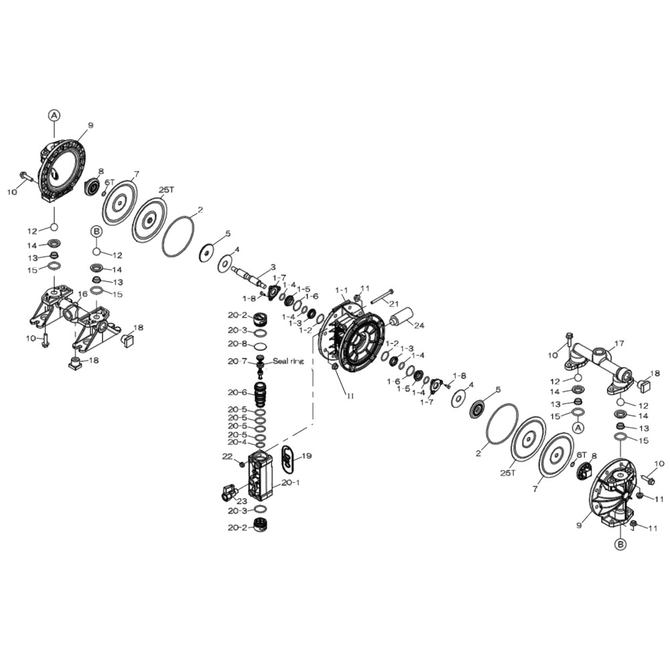

	854985 G15VT Repair Parts Breakdown		View

Repair Parts for 854985

Product		shipping	price
	KG15-VT	Ships in	$292.00	Select item
	KG15-AM-P	Ships in	$150.00	Select item
	805217	Ships in	$290.00	Select item
	773410	Ships in	$133.00	Select item
	686893	Ships in	$7.00	Select item
	773385	Ships in	$13.00	Select item
	640015	Ships in 1-2 Weeks	$7.00	Select item
	780301	Ships in	$20.00	Select item
	684900	Ships in 1-2 Weeks	$8.00	Select item
	773384	Ships in	$6.00	Select item
	686894	Ships in	$7.00	Select item
	640147	Ships in	$6.00	Select item
	717100	Ships in	$65.00	Select item
	773278	Ships in	$7.00	Select item
	716923	Ships in	$41.00	Select item
	643007	Ships in 1-2 Weeks	$8.00	Select item
	773276	Ships in	$61.00	Select item
773400			Call for Shipping
780304			Call for Shipping
	686892	Ships in	$7.00	Select item
	686032	Ships in 1-2 Weeks	$6.00	Select item
	773423	Ships in	$14.00	Select item
773432			Call for Shipping
773431			Call for Shipping
	643025	Ships in 1-2 Weeks	$8.00	Select item
780309			Call for Shipping
773404			Call for Shipping
773402			Call for Shipping
	773407	Ships in	$8.00	Select item
	805210	Ships in	$269.00	Select item
833226			Call for Shipping
	773383	Ships in	$12.00	Select item
	683112	Ships in	$7.00	Select item
	685453	Ships in	$6.00	Select item
	685276	Ships in 1-2 Weeks	$7.00	Select item
	780302	Ships in	$63.00	Select item
	805208	Ships in	$28.00	Select item
	773428	Ships in	$7.00	Select item
	621115	Ships in	$7.00	Select item
	684086	Ships in	$7.00	Select item
	686762	Ships in	$40.00	Select item
	773447	Ships in	$41.00	Select item
