854979

Image shown may not be actual product

854979

0 reviews

Yamada America 854979 G15 Global Series Air Operated Double Diaphragm Pump, Model Number G15PH11. Polypropylene Body, Hytrel Diaphragm, Buna-N Balls & O-Rings, Polypropylene Air Motor. 1/2" FNPT Inlet & Outlet, 16.6 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.

$525.00

Best Price Guarantee!
105PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: 854979 | Model #: G15PH11

Overview
Reviews
Literature/Manuals
Repair Parts

854979

Air Exhaust	3/8" Female NPT
Air Inlet	1/4" Female NPT
Air Supply Pressure	20-100 PSI
Connection Type	FNPT
Diaphragm	Hytrel (TPE)
Discharge NPT (Inches)	1/2"
Discharge Volume Per Cycle	0.040 - 0.050 Gallons
Fluid Port	1/2"
Liquid Temperature	180°F (82°C)
Material	Polypropylene
Max Cycles Per Minute	373

Maximum Flow (GPM)	16.6
Max Suction Lift	13.5'
Model Number	G15PH11
Model Series	G15
Motor	Polypropylene
Solids (Inches)	1/32" (1mm)
Suction NPT (Inches)	1/2"
Valve Balls	Buna-N
Valve / Seat / O-Ring	Buna-N O-Rings
Valve Type	Ball

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	Yamada G15 Global Series Brochure		View
	G15 Features & Benefits		View
	G15 Specifications		View

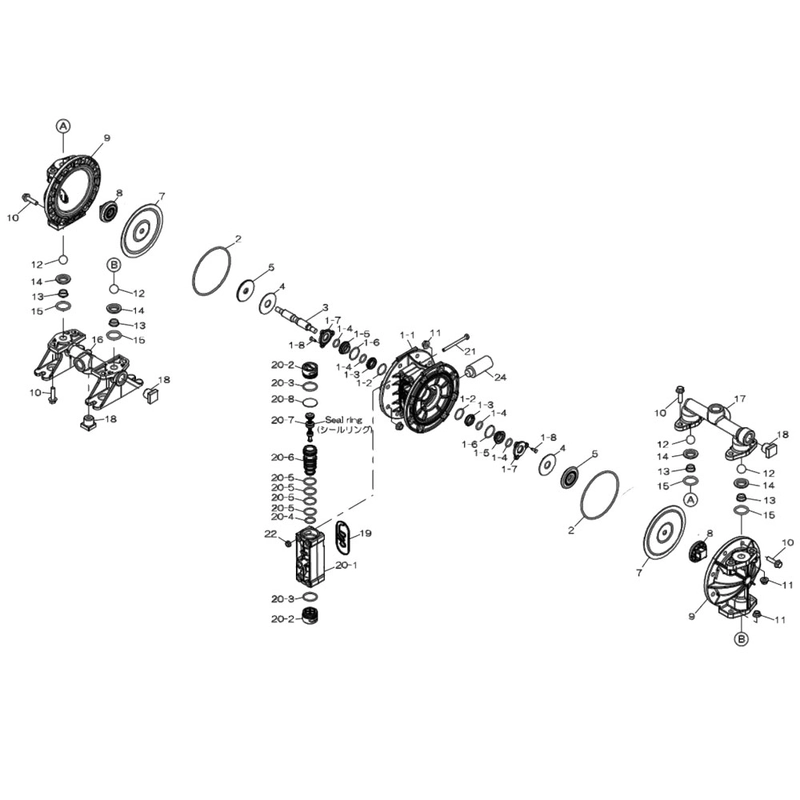

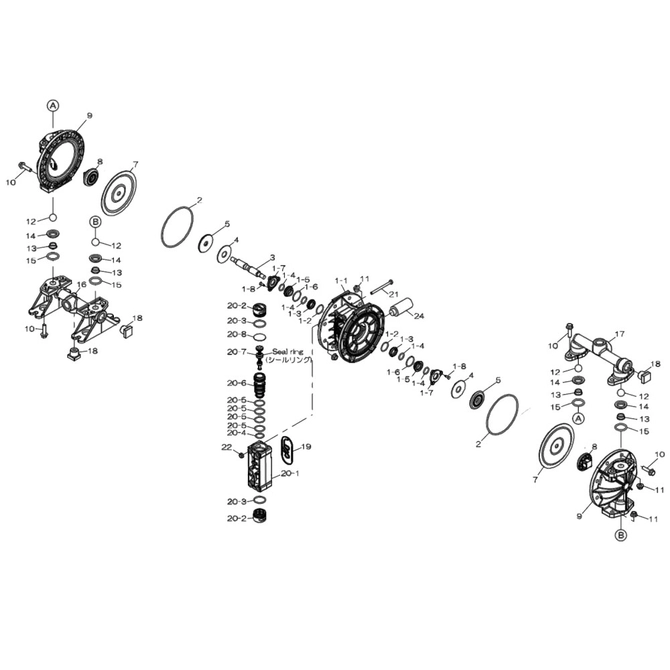

	G15P Repair Parts Exploded View Breakdown		View

Repair Parts for 854979

Product		shipping	price
	KG15-PH	Ships in	$172.00	Select item
	KG15-AM-P	Ships in	$150.00	Select item
	805217	Ships in	$290.00	Select item
	773410	Ships in	$133.00	Select item
	686893	Ships in	$7.00	Select item
	773385	Ships in	$13.00	Select item
	640015	Ships in 1-2 Weeks	$7.00	Select item
	780301	Ships in	$20.00	Select item
	684900	Ships in 1-2 Weeks	$8.00	Select item
	773384	Ships in	$6.00	Select item
	686894	Ships in	$7.00	Select item
	640147	Ships in	$6.00	Select item
	717100	Ships in	$65.00	Select item
	773278	Ships in	$7.00	Select item
	716923	Ships in	$41.00	Select item
	773316	Ships in	$51.00	Select item
	773391	Ships in	$63.00	Select item
	780303	Ships in	$120.00	Select item
	686892	Ships in	$7.00	Select item
	686032	Ships in 1-2 Weeks	$6.00	Select item
	773374	Ships in	$13.00	Select item
	773430	Ships in	$13.00	Select item
	773429	Ships in	$14.00	Select item
	640025	Ships in 1-2 Weeks	$7.00	Select item
	780307	Ships in	$135.00	Select item
	773395	Ships in	$78.00	Select item
	773393	Ships in	$7.00	Select item
	773407	Ships in	$8.00	Select item
	805210	Ships in	$269.00	Select item
833226			Call for Shipping
	773383	Ships in	$12.00	Select item
	683112	Ships in	$7.00	Select item
	685453	Ships in	$6.00	Select item
	685276	Ships in 1-2 Weeks	$7.00	Select item
	780302	Ships in	$63.00	Select item
	805208	Ships in	$28.00	Select item
	773428	Ships in	$7.00	Select item
	621115	Ships in	$7.00	Select item
	684086	Ships in	$7.00	Select item
	686762	Ships in	$40.00	Select item
	713148	Ships in 1-2 Weeks	$61.00	Select item
