854702

0 reviews

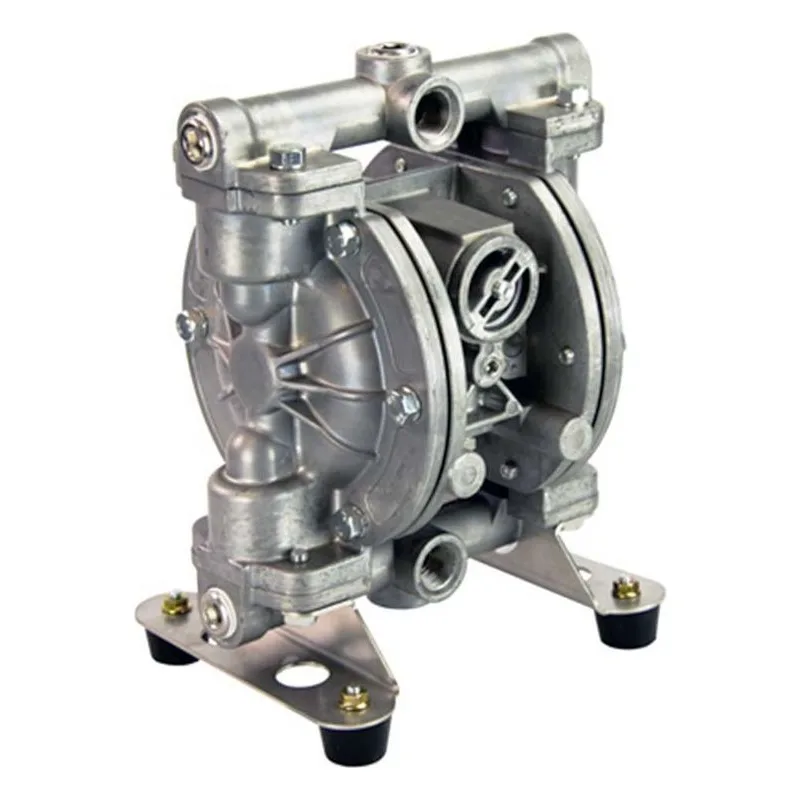

Yamada G15AH11 AODD Pump, G15 Global Series Model 854702. Aluminum with 1/2" Female NPT Connections, Hytrel Diaphragms, Buna-N Ball Valve & O-Rings. Liquid End Repair Kit KG15-MH & Air Motor Kit KG15-AM-M Available.

$516.00

Best Price Guarantee!
103PumpPoints

Item: 854702 | Model #: G15AH11

Overview
Reviews
Literature/Manuals
Repair Parts

854702

Air Exhaust	3/8" Female NPT
Air Inlet	1/4" Female NPT
Air Supply Pressure	20-100 PSI
Connections / Discharge (Inches)	1/2" Female NPT
Diaphragm	Hytrel
Discharge Volume Per Cycle	.040-.050 Gal
Material	Aluminum

Maximum Flow (GPM)	16.6 GPM
Maximum Operating Temperature	248°F (120°C)
Model Number	G15AH11
Solids (Inches)	1/32" (1mm)
Valve / Seat / O-Ring	Buna-N

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	Yamada G15 Global Series Brochure		View
	G15 Features & Benefits		View
	G15 Specifications		View

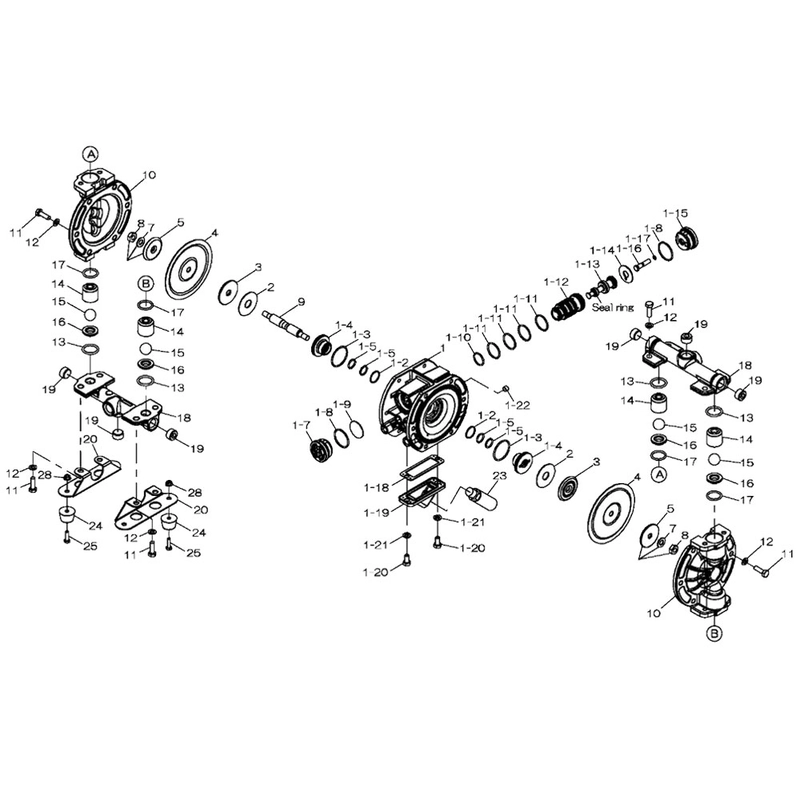

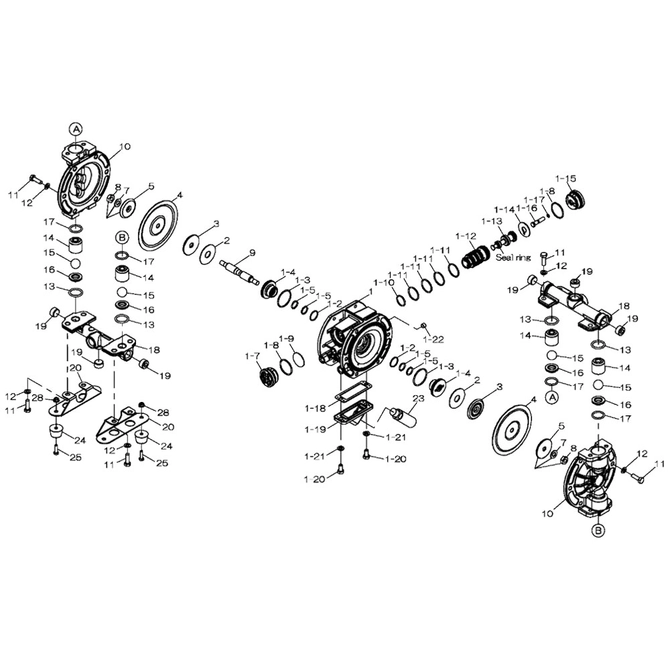

	G15AN/H/S Pump Repair Parts Exploded View Breakdown		View

Repair Parts for 854702

	shipping	price
KG15-MH	Ships in	$130.00	Select item
KG15-AM-M	Ships in	$167.00	Select item
805130	Ships in	$421.00	Select item
717082	Ships in	$144.00	Select item
684725	Ships in	$6.00	Select item
686733	Ships in	$5.00	Select item
773279	Ships in	$49.00	Select item
640015	Ships in 1-2 Weeks	$5.00	Select item
716917	Ships in	$17.00	Select item
686734	Ships in	$5.00	Select item
773280	Ships in	$6.00	Select item
685276	Ships in 1-2 Weeks	$5.00	Select item
686029	Ships in 1-2 Weeks	$5.00	Select item
716950	Ships in	$99.00	Select item
805131	Ships in	$67.00	Select item
773281	Ships in	$6.00	Select item
716918	Ships in	$17.00	Select item
717035	Ships in	$13.00	Select item
640002	Ships in 1-2 Weeks	$5.00	Select item
773283	Ships in	$6.00	Select item
717083	Ships in	$20.00	Select item
611145	Ships in	$5.00	Select item
631916	Ships in 1-2 Weeks	$5.00	Select item
634360	Ships in	$6.00	Select item
773278	Ships in	$5.00	Select item
716923	Ships in	$35.00	Select item
773316	Ships in	$43.00	Select item
716924	Ships in	$20.00	Select item
681303	Ships in 1-2 Weeks	$5.00	Select item
683636	Ships in 1-2 Weeks	$5.00	Select item
717100	Ships in	$57.00	Select item
716920	Ships in	$67.00	Select item
611149	Ships in 1-2 Weeks	$5.00	Select item
631916	Ships in 1-2 Weeks	$5.00	Select item
640025	Ships in 1-2 Weeks	$5.00	Select item
717098	Ships in	$18.00	Select item
773374	Ships in	$11.00	Select item
717099	Ships in	$19.00	Select item
640130	Ships in 1-2 Weeks	$5.00	Select item
717084	Ships in	$41.00	Select item
686789	Ships in	$11.00	Select item
717186	Ships in	$18.00	Select item
682520	Ships in 1-2 Weeks	$21.00	Select item
771123	Ships in 1-2 Weeks	$6.00	Select item
611101	Ships in	$5.00	Select item
682817	Ships in	$5.00	Select item
771132	Ships in 1-2 Weeks	$6.00	Select item
713148	Ships in 1-2 Weeks	$51.00	Select item
