DP-15BPS

0 reviews

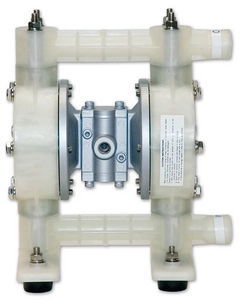

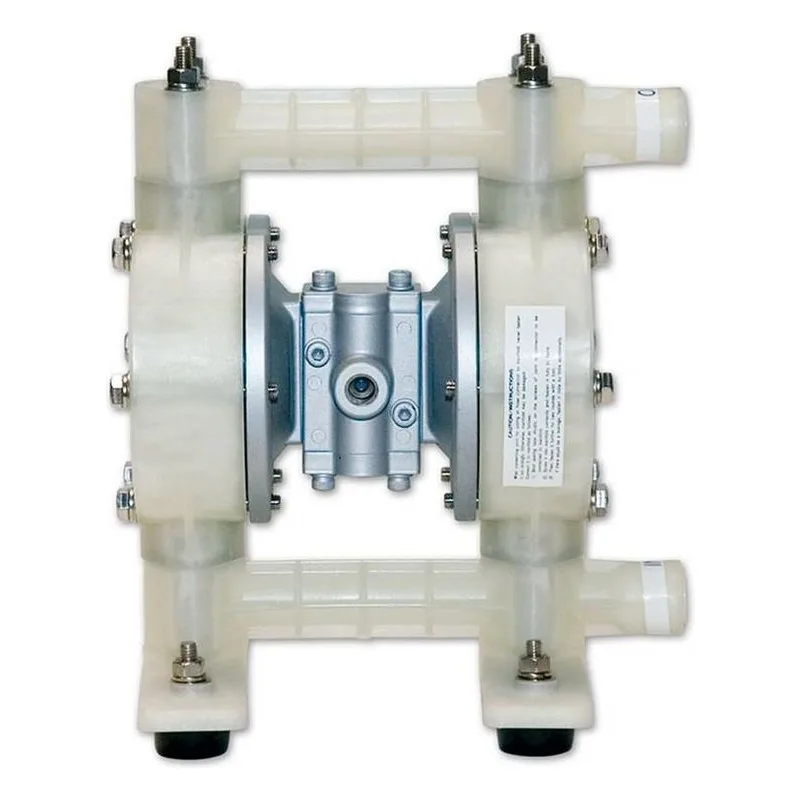

Yamada Pumps DP-15BPS Type, Model 853724 DP-15 Series, Air Operated Double Diaphragm Pump, Santoprene Diaphragm, Santoprene/EPDM Flat Check Valve / O-Rings, Polypropylene - Ball Valve (PPG) Material, 7.4 GPM Max Flow, 1/2" NPT Fluid Port, 1/4" Female NPT (includes ball valve) Air Inlet, 3/8" Female NPT (includes silencer) Air Exhaust, Aluminum Air Motor, 10 Feet Max Suction Lift

$456.00

Best Price Guarantee!
91PumpPoints

Item: DP-15BPS | Model #: 853724

Repair Parts Exploded View Diagram

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

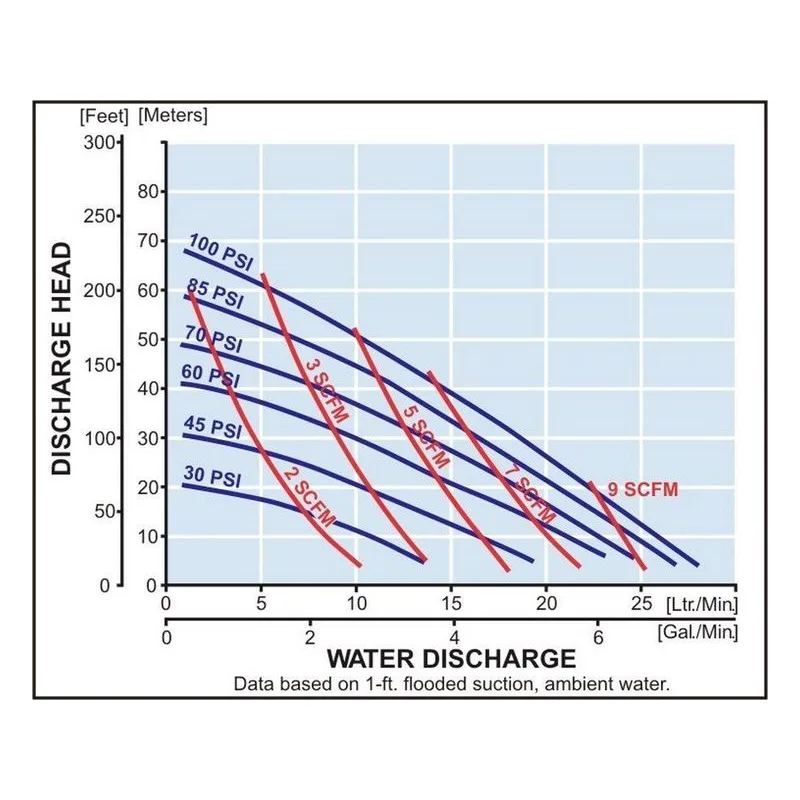

DP-15BPS

Actual Weight	13
Air Exhaust	3/8" Female NPT (includes silencer)
Air Inlet	1/4" Female NPT (includes ball valve)
Air Supply Pressure	20 to 100 PSI (1.4 to 7 kgf/cm²)
Diaphragm	Santoprene
Discharge Volume Per Cycle	0.025 gallons (93 cc)
Fluid Port	1/2" NPT
Liquid Temperature	180°F (82°C) Max
Material	Polypropylene - Ball Valve (PPG)
Max Cycles Per Minute	300

Maximum Flow (GPM)	7.4 GPM
Max Suction Lift	10 Feet
Model Number	853724
Model Series	DP-15 Series
Motor	Aluminum Air Motor
Solids (Inches)	1/32" (1 mm)
Type	853724
Valve / Seat / O-Ring	Santoprene / EPDM
