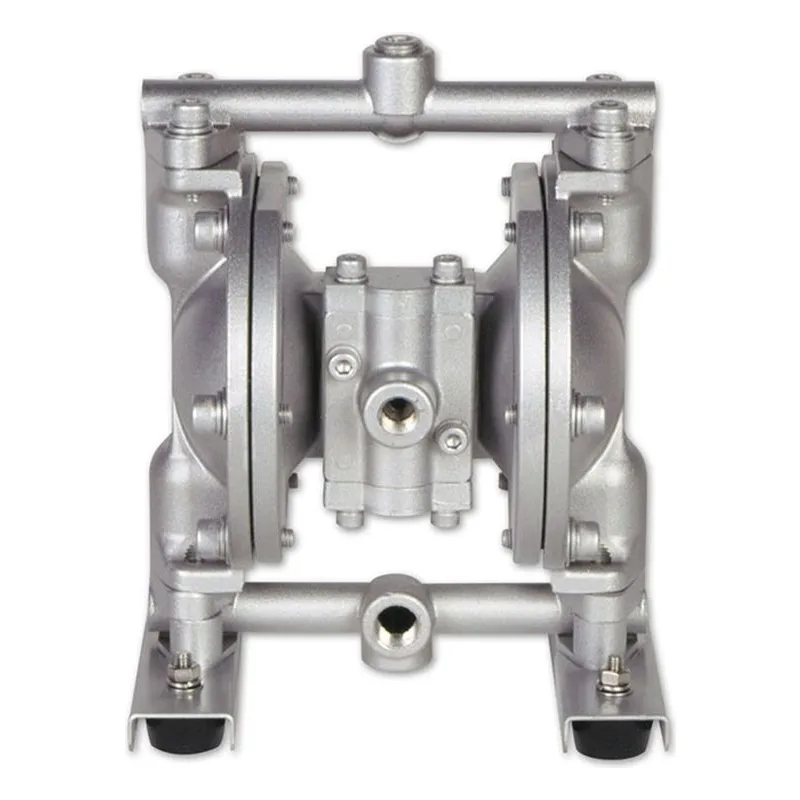

Yamada 851840-U DP-10 Series AODD Diaphragm Pump, DP-10BSU

DP-10 / DP-15 Series Information

Features & Benefits
DP-10 Port Dimensions Intake & discharge connection: Polypropylene (PPG) 3/8" Female NPT Aluminum (ADC-12) 3/8" Female NPT Stainless Steel (316) 3/8" Female NPT DP-15 Port Dimensions Intake & discharge connection: Polypropylene (PPG) 1/2" Female NPT Groundable Acetal 1/2" Female NPT Air Inlet /Exhaust Air inlet (incl. ball valve): 1/4" Female NPT Air exhaust (incl. silencer): 3/8" Female NPT Maximum Liquid Temperature* Diaphragm Material Temperature Buna N 180°F (82°C) Neoprene 180°F (82°C) Santoprene® (TPO) 180°F (82°C) PTFE 212°F (100°C) Hytrel® (TPEE) 248°F (120°C) Viton® fluoroelastomer 248°F (120°C) *The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene and Groundable Acetal pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material.

Features & Benefits

DP-10 Port Dimensions
Intake & discharge connection:
Polypropylene (PPG) 3/8" Female NPT
Aluminum (ADC-12) 3/8" Female NPT
Stainless Steel (316) 3/8" Female NPT

DP-15 Port Dimensions
Intake & discharge connection:
Polypropylene (PPG) 1/2" Female NPT
Groundable Acetal 1/2" Female NPT
Air Inlet /Exhaust
Air inlet (incl. ball valve): 1/4" Female NPT
Air exhaust (incl. silencer): 3/8" Female NPT

Maximum Liquid Temperature*
Diaphragm Material Temperature
Buna N 180°F (82°C)
Neoprene 180°F (82°C)
Santoprene® (TPO) 180°F (82°C)
PTFE 212°F (100°C)
Hytrel® (TPEE) 248°F (120°C)
Viton® fluoroelastomer 248°F (120°C)

*The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene and Groundable Acetal pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material.

Air Inlet	1/4" FNPT
Air Supply Pressure	20 - 100 PSI (1.4 - 7 kfg/cm)
Diaphragm	Ultimate PTFE/EPDM
Discharge NPT (Inches)	3/8" FNPT
Discharge Volume Per Cycle	0.020 gallons (76 cc)
Fluid Port	3/8"
Material	Stainless Steel
Maximum Flow (GPM)	6
Max Suction Lift	10'

Model Number	851840-U
Motor	Aluminum
Solids (Inches)	1/32" (1mm)
Suction NPT (Inches)	3/8" FNPT
Type	Ball Valve
Valve Balls	Ultimate PTFE/EPDM
Valve / Seat / O-Ring	PTFE

Type	Title		Link
	Yamada Pumps DP-10 Pump Manual		View
	Yamada Pumps DP-15 Pump Manual		View
	Yamada Pumps DP-10 / DP-15 Pump Specifications		View
	Yamada Pumps DP-10 Pump PPG CAD Drawing		View
	Yamada Pumps DP-10 Pump Acetal CAD Drawing		View
	Yamada Pumps DP-10 Pump Aluminum CAD Drawing		View
	Yamada Pumps DP-10 Pump SS CAD Drawing		View
	DP-10BSU Ultimate Diaphragm Series Repair Parts		View

Product		shipping	price
	682971	Ships in 1-2 Weeks	$5.00	Select item
	681300	Ships in 1-2 Weeks	$5.00	Select item
	631329	Ships in 1-2 Weeks	$5.00	Select item
	643018	Ships in 1-2 Weeks	$6.00	Select item
	710637	Ships in 1-2 Weeks	$60.00	Select item
	770931	Ships in 1-2 Weeks	$10.00	Select item
	708913	Ships in 1-2 Weeks	$60.00	Select item
	20109-YAM	Ships in	$8.00	Select item
	714678	Ships in 1-2 Weeks	$61.00	Select item
	684900	Ships in 1-2 Weeks	$6.00	Select item
	717184	Ships in	$24.00	Select item
	771123	Ships in 1-2 Weeks	$6.00	Select item
	710914	Ships in 1-2 Weeks	$9.00	Select item
	831559	Ships in 1-2 Weeks	$305.00	Select item
	715107	Ships in 1-2 Weeks	$194.00	Select item
	630807	Ships in 1-2 Weeks	$5.00	Select item
	684284	Ships in 1-2 Weeks	$8.00	Select item
	640131	Ships in 1-2 Weeks	$5.00	Select item
	772651	Ships in 1-2 Weeks	$6.00	Select item
02-1785			Call for Shipping
	772619	Ships in 1-2 Weeks	$35.00	Select item
	02-1160	Ships in	Call for pricing
	710660	Ships in 1-2 Weeks	$751.00	Select item
	681855	Ships in 1-2 Weeks	$5.00	Select item
	804505	Ships in 1-2 Weeks	$175.00	Select item
	706798	Ships in 1-2 Weeks	$21.00	Select item
	710587	Ships in 1-2 Weeks	$24.00	Select item
	771357	Ships in 1-2 Weeks	$21.00	Select item
	710853	Ships in 1-2 Weeks	$83.00	Select item
	801404	Ships in 1-2 Weeks	$18.00	Select item
	771356	Ships in 1-2 Weeks	$13.00	Select item
	710636	Ships in 1-2 Weeks	$24.00	Select item
	681855	Ships in 1-2 Weeks	$5.00	Select item
	682943	Ships in 1-2 Weeks	$5.00	Select item
	682918	Ships in 1-2 Weeks	$5.00	Select item
	686826	Ships in	$21.00	Select item
	621102	Ships in 1-2 Weeks	$5.00	Select item
	631328	Ships in 1-2 Weeks	$5.00	Select item
	628010	Ships in 1-2 Weeks	$5.00	Select item
	771358	Ships in 1-2 Weeks	$23.00	Select item
	682944	Ships in 1-2 Weeks	$8.00	Select item
	682520	Ships in 1-2 Weeks	$21.00	Select item
	681297	Ships in 1-2 Weeks	$5.00	Select item
	771380	Ships in 1-2 Weeks	$21.00	Select item
	K10-MU	Ships in	$380.00	Select item
	K115-AM	Ships in 1-2 Weeks	$111.00	Select item
