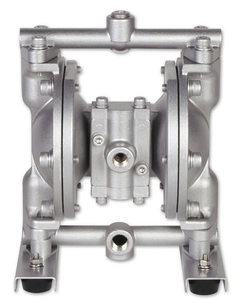

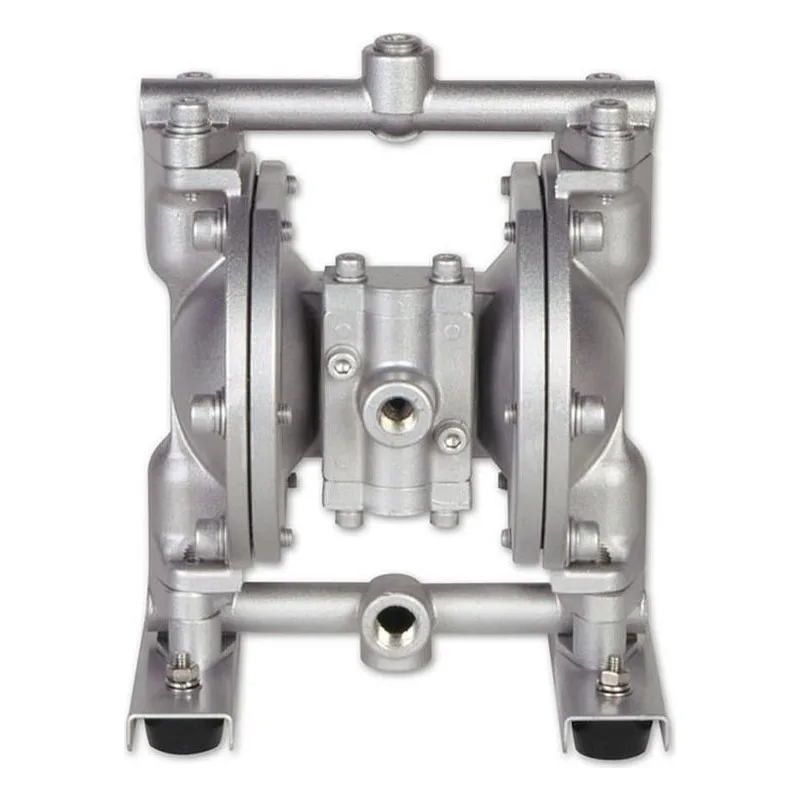

Yamada America DP-10BSN DP-10 Series Air Operated Double Diaphragm Pump, Model Number 851846. 316 Stainless Steel Body, Buna-N Diaphragm, Balls & O-Rings, Aluminum Air Motor. 3/8" FNPT Inlet & Outlet, 6 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.

$1,715.00

Best Price Guarantee!
343PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: DP-10BSN | Model #: 851846

Repair Parts Exploded View Diagram

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

DP-10BSN

Air Exhaust	3/8" Female NPT (includes silencer)
Air Inlet	1/4" Female NPT (includes ball valve)
Air Supply Pressure	20-100 PSI
Connection Type	FNPT
Diaphragm	Buna-N
Discharge NPT (Inches)	3/8"
Discharge Volume Per Cycle	0.020 Gallons
Fluid Port	3/8"
Liquid Temperature	180°F (82°C)
Material	316 Stainless Steel
Max Cycles Per Minute	300

Maximum Flow (GPM)	6
Max Suction Lift	10'
Model Number	851846
Model Series	DP-10
Motor	Aluminum
Solids (Inches)	1/32" (1mm)
Suction NPT (Inches)	3/8"
Valve Balls	Buna-N
Valve / Seat / O-Ring	Buna-N O-Rings
Valve Type	Ball

DP-10 / DP-15 Series Information

Features & Benefits
DP-10 Port Dimensions Intake & discharge connection: Polypropylene (PPG) 3/8" Female NPT Aluminum (ADC-12) 3/8" Female NPT Stainless Steel (316) 3/8" Female NPT DP-15 Port Dimensions Intake & discharge connection: Polypropylene (PPG) 1/2" Female NPT Groundable Acetal 1/2" Female NPT Air Inlet /Exhaust Air inlet (incl. ball valve): 1/4" Female NPT Air exhaust (incl. silencer): 3/8" Female NPT Maximum Liquid Temperature* Diaphragm Material Temperature Buna N 180°F (82°C) Neoprene 180°F (82°C) Santoprene® (TPO) 180°F (82°C) PTFE 212°F (100°C) Hytrel® (TPEE) 248°F (120°C) Viton® fluoroelastomer 248°F (120°C) *The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene and Groundable Acetal pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material.

Features & Benefits

DP-10 Port Dimensions
Intake & discharge connection:
Polypropylene (PPG) 3/8" Female NPT
Aluminum (ADC-12) 3/8" Female NPT
Stainless Steel (316) 3/8" Female NPT

DP-15 Port Dimensions
Intake & discharge connection:
Polypropylene (PPG) 1/2" Female NPT
Groundable Acetal 1/2" Female NPT
Air Inlet /Exhaust
Air inlet (incl. ball valve): 1/4" Female NPT
Air exhaust (incl. silencer): 3/8" Female NPT

Maximum Liquid Temperature*
Diaphragm Material Temperature
Buna N 180°F (82°C)
Neoprene 180°F (82°C)
Santoprene® (TPO) 180°F (82°C)
PTFE 212°F (100°C)
Hytrel® (TPEE) 248°F (120°C)
Viton® fluoroelastomer 248°F (120°C)

*The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene and Groundable Acetal pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material.

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	Yamada Pumps DP-10 Pump Manual		View
	Yamada Pumps DP-15 Pump Manual		View
	Yamada Pumps DP-10 / DP-15 Pump Specifications		View
	Yamada Pumps DP-10 Pump PPG CAD Drawing		View
	Yamada Pumps DP-10 Pump Acetal CAD Drawing		View
	Yamada Pumps DP-10 Pump Aluminum CAD Drawing		View
	Yamada Pumps DP-10 Pump SS CAD Drawing		View
	DP-10BSC Yamada Pump Repair Parts Exploded View		View
