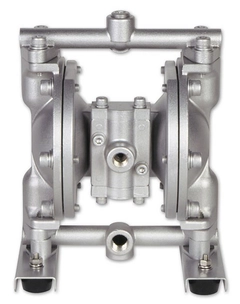

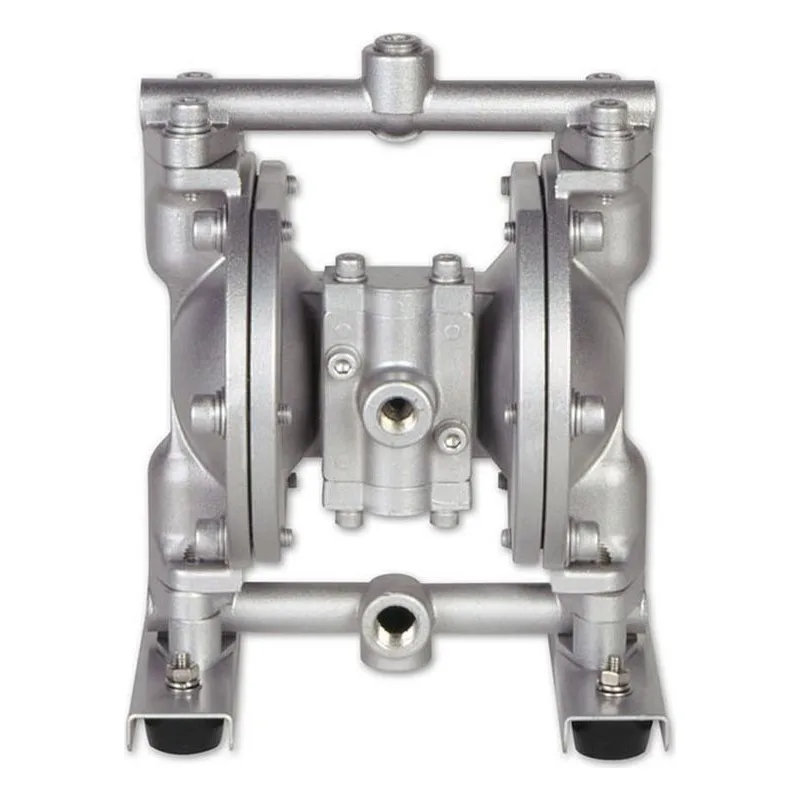

Yamada Pumps DP-10BSC Type, Model 851845 DP-10 Series, Air Operated Double Diaphragm Pump, Neoprene Diaphragm, Neoprene Flat Check Valve / O-Rings, Stainless Steel (316) Material, 6 GPM Max Flow, 3/8" NPT Fluid Port, 1/4" Female NPT (includes ball valve) Air Inlet, 3/8" Female NPT (includes silencer) Air Exhaust, Aluminum Air Motor, 10 Feet Max Suction Lift

$1,475.00

Best Price Guarantee!
295PumpPoints

Item: DP-10BSC | Model #: 851845

Repair Parts Exploded View Diagram

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

DP-10BSC

Actual Weight	10
Air Exhaust	3/8" Female NPT (includes silencer)
Air Inlet	1/4" Female NPT (includes ball valve)
Air Supply Pressure	20 to 100 PSI (1.4 to 7 kgf/cm²)
Diaphragm	Neoprene
Discharge Volume Per Cycle	0.020 gallons (76 cc)
Fluid Port	3/8" NPT
Liquid Temperature	180°F (82°C) Max
Material	316 Stainless Steel
Max Cycles Per Minute	300

Maximum Flow (GPM)	6.0 GPM / 22.7 LPM
Max Suction Lift	10 Feet
Model Number	851845
Model Series	DP-10 Series
Motor	Aluminum Air Motor
Solids (Inches)	1/32" (1 mm)
Type	851845
Valve / Seat / O-Ring	Neoprene

DP-10 / DP-15 Series Information

Features & Benefits
DP-10 Port Dimensions Intake & discharge connection: Polypropylene (PPG) 3/8" Female NPT Aluminum (ADC-12) 3/8" Female NPT Stainless Steel (316) 3/8" Female NPT DP-15 Port Dimensions Intake & discharge connection: Polypropylene (PPG) 1/2" Female NPT Groundable Acetal 1/2" Female NPT Air Inlet /Exhaust Air inlet (incl. ball valve): 1/4" Female NPT Air exhaust (incl. silencer): 3/8" Female NPT Maximum Liquid Temperature* Diaphragm Material Temperature Buna N 180°F (82°C) Neoprene 180°F (82°C) Santoprene® (TPO) 180°F (82°C) PTFE 212°F (100°C) Hytrel® (TPEE) 248°F (120°C) Viton® fluoroelastomer 248°F (120°C) *The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene and Groundable Acetal pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material.
