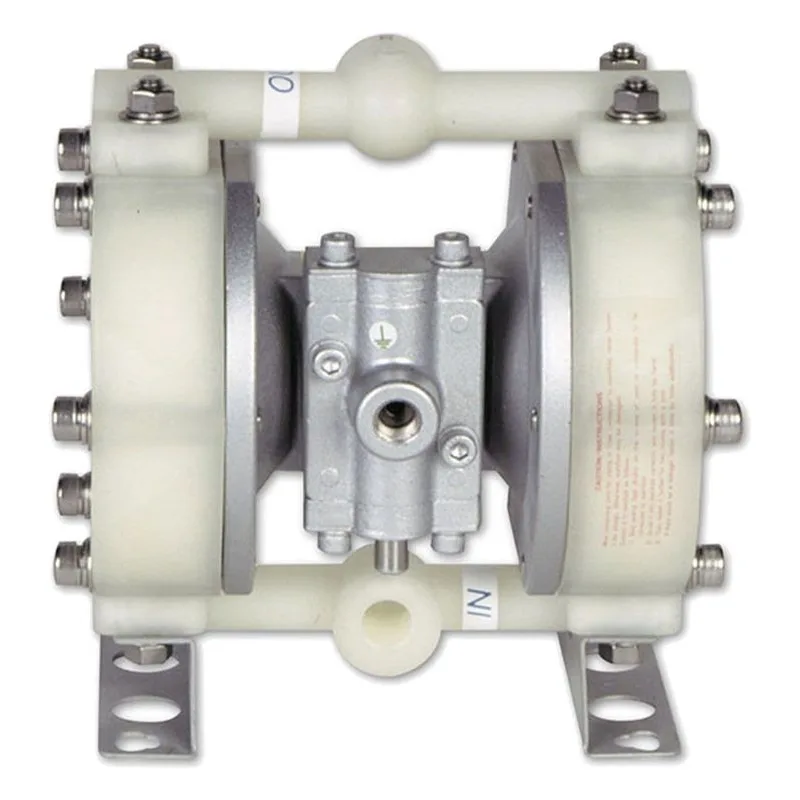

Image shown may not be actual product
Yamada DP-10BPU DP-10 Series Air Operated Double Diaphragm Pump, Model 851843-U. Polypropylene Body with Ball Valve, Ultimate PTFE/EPDM Diaphragm & Ball Materials, PTFE O-Rings. 3/8" FNPT Inlet & Outlet, Repair Kit K10-PU Available.
Yamada DP-10BPU DP-10 Series Air Operated Double Diaphragm Pump, Model 851843-U. Polypropylene Body with Ball Valve, Ultimate PTFE/EPDM Diaphragm & Ball Materials, PTFE O-Rings. 3/8" FNPT Inlet & Outlet, Repair Kit K10-PU Available.
Air Inlet | 1/4" FNPT |
Air Supply Pressure | 20 - 100 PSI (1.4 - 7 kfg/cm) |
Diaphragm | Ultimate PTFE/EPDM |
Discharge NPT (Inches) | 3/8" FNPT |
Discharge Volume Per Cycle | 0.020 gallons (76 cc) |
Fluid Port | 3/8" |
Material | Polypropylene |
Maximum Flow (GPM) | 6 |
Max Suction Lift | 10' |
Model Number | 851843-U |
Motor | Aluminum |
Solids (Inches) | 1/32" (1mm) |
Suction NPT (Inches) | 3/8" FNPT |
Type | Ball Valve |
Valve Balls | Ultimate PTFE/EPDM |
Valve / Seat / O-Ring | PTFE |
Features & Benefits |
---|
DP-10 Port Dimensions Intake & discharge connection: Polypropylene (PPG) 3/8" Female NPT Aluminum (ADC-12) 3/8" Female NPT Stainless Steel (316) 3/8" Female NPT DP-15 Port Dimensions Intake & discharge connection: Polypropylene (PPG) 1/2" Female NPT Groundable Acetal 1/2" Female NPT Air Inlet /Exhaust Air inlet (incl. ball valve): 1/4" Female NPT Air exhaust (incl. silencer): 3/8" Female NPT Maximum Liquid Temperature* Diaphragm Material Temperature Buna N 180°F (82°C) Neoprene 180°F (82°C) Santoprene® (TPO) 180°F (82°C) PTFE 212°F (100°C) Hytrel® (TPEE) 248°F (120°C) Viton® fluoroelastomer 248°F (120°C) *The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene and Groundable Acetal pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material. |
Aerospace
623 productsAutomotive
623 productsChemical Delivery / Transfer
623 productsGas & Petroleum
623 productsMining
623 productsPaints & Dyes
644 productsPrinting & Ink
644 productsStone / Clay / Glass
623 productsWashing / Cleaning Systems
644 productsWater Treatment
623 productsType | Title | Link | |
---|---|---|---|
Yamada Pumps DP-10 Pump Manual | View | ||
Yamada Pumps DP-15 Pump Manual | View | ||
Yamada Pumps DP-10 / DP-15 Pump Specifications | View | ||
Yamada Pumps DP-10 Pump PPG CAD Drawing | View | ||
Yamada Pumps DP-10 Pump Acetal CAD Drawing | View | ||
Yamada Pumps DP-10 Pump Aluminum CAD Drawing | View | ||
Yamada Pumps DP-10 Pump SS CAD Drawing | View | ||
DP-10BPU Ultimate Diaphragm Series Repair Parts | View |
Product | qty. | shipping | price | ||
---|---|---|---|---|---|
628012 | Ships in 1-2 Weeks | $5.00 | |||
681300 | Ships in 1-2 Weeks | $5.00 | |||
631329 | Ships in 1-2 Weeks | $5.00 | |||
643018 | Ships in 1-2 Weeks | $6.00 | |||
771136 | Ships in 1-2 Weeks | $12.00 | |||
770931 | Ships in 1-2 Weeks | $10.00 | |||
780270 | Ships in | $10.00 | |||
20109-YAM | Ships in | $8.00 | |||
714678 | Ships in 1-2 Weeks | $61.00 | |||
684900 | Ships in 1-2 Weeks | $6.00 | |||
708511 | Ships in 1-2 Weeks | $21.00 | |||
831316 | Ships in 1-2 Weeks | $60.00 | |||
715107 | Ships in 1-2 Weeks | $194.00 | |||
630807 | Ships in 1-2 Weeks | $5.00 | |||
684284 | Ships in 1-2 Weeks | $8.00 | |||
640131 | Ships in 1-2 Weeks | $5.00 | |||
772651 | Ships in 1-2 Weeks | $6.00 | |||
21785 | Call for Shipping | ||||
772619 | Ships in 1-2 Weeks | $35.00 | |||
02-1160 | Ships in | Call for pricing | |||
780194 | Ships in 1-2 Weeks | $118.00 | |||
681855 | Ships in 1-2 Weeks | $5.00 | |||
804505 | Ships in 1-2 Weeks | $175.00 | |||
706798 | Ships in 1-2 Weeks | $21.00 | |||
710587 | Ships in 1-2 Weeks | $24.00 | |||
771357 | Ships in 1-2 Weeks | $21.00 | |||
710853 | Ships in 1-2 Weeks | $83.00 | |||
801404 | Ships in 1-2 Weeks | $18.00 | |||
771356 | Ships in 1-2 Weeks | $13.00 | |||
710636 | Ships in 1-2 Weeks | $24.00 | |||
681855 | Ships in 1-2 Weeks | $5.00 | |||
682943 | Ships in 1-2 Weeks | $5.00 | |||
682918 | Ships in 1-2 Weeks | $5.00 | |||
686826 | Ships in | $21.00 | |||
771358 | Ships in 1-2 Weeks | $23.00 | |||
682945 | Ships in 1-2 Weeks | $8.00 | |||
682520 | Ships in 1-2 Weeks | $21.00 | |||
K10-PU | Ships in | $356.00 | |||
K115-AM | Ships in 1-2 Weeks | $111.00 |
