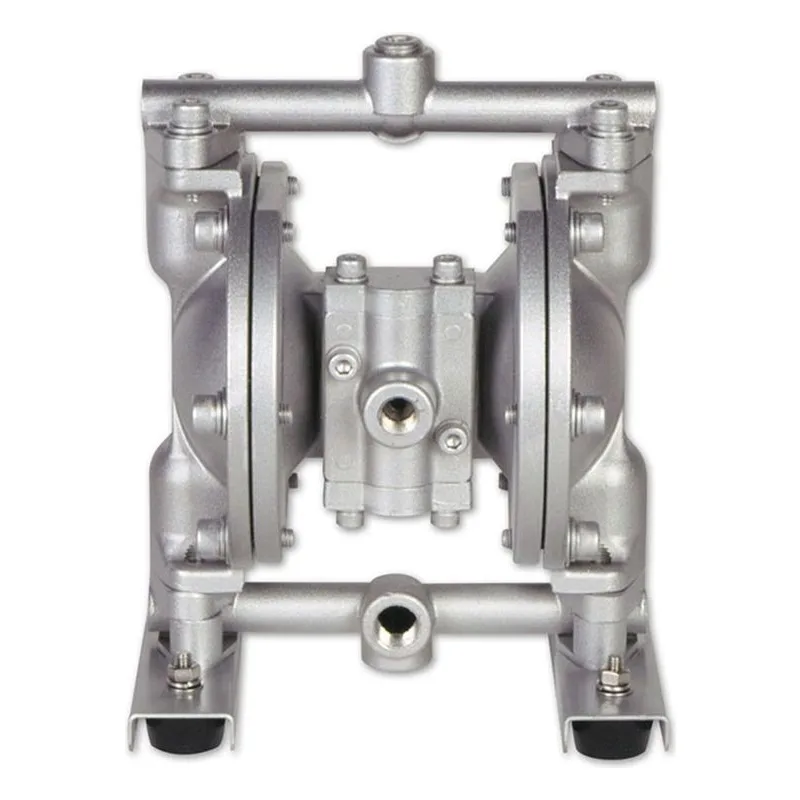

Image shown may not be actual product
DP-10BAU
Yamada America DP-10BAU DP-10 Series Air Operated Double Diaphragm Pump, Model Number 851839-U. Aluminum Body, Ultimate Diaphragm, PTFE Balls & O-Rings, Aluminum Air Motor. 3/8" FNPT Inlet & Outlet, 6 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.
- Overview
- Series Info
- Reviews
- Literature/Manuals
- Repair Parts
DP-10BAU
Yamada America DP-10BAU DP-10 Series Air Operated Double Diaphragm Pump, Model Number 851839-U. Aluminum Body, Ultimate Diaphragm, PTFE Balls & O-Rings, Aluminum Air Motor. 3/8" FNPT Inlet & Outlet, 6 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.
| Air Exhaust | 3/8" Female NPT (includes silencer) |
| Air Inlet | 1/4" Female NPT (includes ball valve) |
| Air Supply Pressure | 20-100 PSI |
| Connection Type | FNPT |
| Diaphragm | Ultimate (PTFE/EPDM) |
| Discharge NPT (Inches) | 3/8" |
| Discharge Volume Per Cycle | 0.020 Gallons |
| Fluid Port | 3/8" |
| Liquid Temperature | 212°F (100°C) |
| Material | Aluminum |
| Max Cycles Per Minute | 300 |
| Maximum Flow (GPM) | 6 |
| Max Suction Lift | 10' |
| Model Number | 851839-U |
| Model Series | DP-10 |
| Motor | Aluminum |
| Solids (Inches) | 1/32" (1mm) |
| Suction NPT (Inches) | 3/8" |
| Valve Balls | PTFE |
| Valve / Seat / O-Ring | PTFE O-Rings |
| Valve Type | Ball |
DP-10 / DP-15 Series Information
| Features & Benefits |
|---|
| DP-10 Port Dimensions Intake & discharge connection: Polypropylene (PPG) 3/8" Female NPT Aluminum (ADC-12) 3/8" Female NPT Stainless Steel (316) 3/8" Female NPT DP-15 Port Dimensions Intake & discharge connection: Polypropylene (PPG) 1/2" Female NPT Groundable Acetal 1/2" Female NPT Air Inlet /Exhaust Air inlet (incl. ball valve): 1/4" Female NPT Air exhaust (incl. silencer): 3/8" Female NPT Maximum Liquid Temperature* Diaphragm Material Temperature Buna N 180°F (82°C) Neoprene 180°F (82°C) Santoprene® (TPO) 180°F (82°C) PTFE 212°F (100°C) Hytrel® (TPEE) 248°F (120°C) Viton® fluoroelastomer 248°F (120°C) *The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene and Groundable Acetal pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material. |
Categories
Aerospace
641 productsAutomotive
641 productsChemical Delivery / Transfer
641 productsGas & Petroleum
641 productsMining
641 productsPaints & Dyes
666 productsPrinting & Ink
666 productsStone / Clay / Glass
641 productsWashing / Cleaning Systems
662 productsWater Treatment
641 products
| Type | Title | Link | |
|---|---|---|---|
Yamada Pumps DP-10 Pump Manual | View | ||
Yamada Pumps DP-15 Pump Manual | View | ||
Yamada Pumps DP-10 / DP-15 Pump Specifications | View | ||
Yamada Pumps DP-10 Pump PPG CAD Drawing | View | ||
Yamada Pumps DP-10 Pump Acetal CAD Drawing | View | ||
Yamada Pumps DP-10 Pump Aluminum CAD Drawing | View | ||
Yamada Pumps DP-10 Pump SS CAD Drawing | View | ||
DP-10BAU Ultimate Diaphragm Series Repair Parts | View | ||
Repair Parts for DP-10BAU
| Product | qty. | shipping | price | ||
|---|---|---|---|---|---|
 | 681295 | Ships in 1-2 Weeks | $7.00 | ||
 | 681300 | Ships in 1-2 Weeks | $7.00 | ||
 | 631329 | Ships in 1-2 Weeks | $7.00 | ||
| 643018.771368 | Call for Shipping | ||||
 | 770931 | Ships in 1-2 Weeks | $12.00 | ||
 | 710638 | Ships in 1-2 Weeks | $25.00 | ||
 | 020109 | Ships in | $10.00 | ||
 | 714678 | Ships in 1-2 Weeks | $70.00 | ||
 | 684900 | Ships in 1-2 Weeks | $8.00 | ||
 | 717184 | Ships in | $28.00 | ||
| 771123 | Ships in 1-2 Weeks | $8.00 | ||
| 709872 | Ships in 1-2 Weeks | $11.00 | ||
 | 802591 | Ships in 1-2 Weeks | $126.00 | ||
 | 715107 | Ships in 1-2 Weeks | $219.00 | ||
| 630807 | Ships in 1-2 Weeks | $7.00 | ||
 | 684284 | Ships in 1-2 Weeks | $10.00 | ||
 | 640131 | Ships in 1-2 Weeks | $7.00 | ||
| 772651 | Ships in 1-2 Weeks | $8.00 | ||
| 02-1785 | Call for Shipping | ||||
 | 772619 | Ships in 1-2 Weeks | $40.00 | ||
| 02-1160 | Ships in | Call for pricing | ||
 | 710572 | Ships in 1-2 Weeks | $239.00 | ||
 | 681855 | Ships in 1-2 Weeks | $7.00 | ||
 | 804505 | Ships in 1-2 Weeks | $197.00 | ||
| 706798 | Ships in 1-2 Weeks | $25.00 | ||
 | 710587 | Ships in 1-2 Weeks | $28.00 | ||
 | 771357 | Ships in 1-2 Weeks | $25.00 | ||
 | 710853 | Ships in 1-2 Weeks | $95.00 | ||
 | 801404 | Ships in 1-2 Weeks | $21.00 | ||
| 771356 | Ships in 1-2 Weeks | $15.00 | ||
 | 710636 | Ships in 1-2 Weeks | $28.00 | ||
| 681855 | Ships in 1-2 Weeks | $7.00 | ||
| 682943 | Ships in 1-2 Weeks | $7.00 | ||
| 682918 | Ships in 1-2 Weeks | $7.00 | ||
 | 686826 | Ships in | $25.00 | ||
| 621102 | Ships in 1-2 Weeks | $7.00 | ||
 | 631328 | Ships in 1-2 Weeks | $7.00 | ||
 | 628010 | Ships in 1-2 Weeks | $7.00 | ||
 | 771358 | Ships in 1-2 Weeks | $27.00 | ||
| 682944 | Ships in 1-2 Weeks | $10.00 | ||
 | 682520 | Ships in 1-2 Weeks | $25.00 | ||
 | K10-MU | Ships in | Call for pricing | ||
 | K115-AM | Ships in 1-2 Weeks | $124.00 | ||
