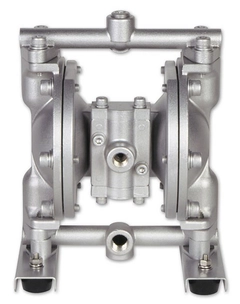

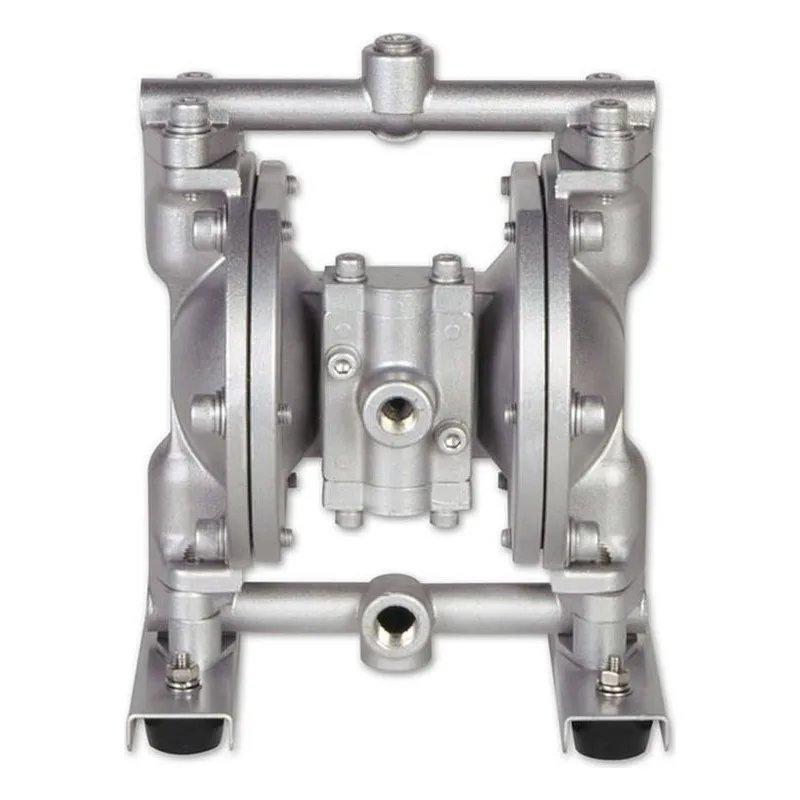

• Yamada Pump DP-10BAT
  • Yamada Pumps DP-10 Series Performance Curves

Image shown may not be actual product

Yamada

DP-10BAT

0 reviews

Yamada Pumps DP-10BAT Type, Model 851839 DP-10 Series, Air Operated Double Diaphragm Pump, PTFE Diaphragm, PTFE Flat Check Valve / O-Rings, Aluminum (ADC-12) Material, 6 GPM Max Flow, 3/8" NPT Fluid Port, 1/4" Female NPT (includes ball valve) Air Inlet, 3/8" Female NPT (includes silencer) Air Exhaust, Aluminum Air Motor, 10 Feet Max Suction Lift

$426.60

Item: DP-10BAT | Model #: 851839
  • Overview
  • Series Info
  • Reviews
  • Literature/Manuals
  • Repair Parts

DP-10BAT

Yamada Pumps DP-10BAT Type, Model 851839 DP-10 Series, Air Operated Double Diaphragm Pump, PTFE Diaphragm, PTFE Flat Check Valve / O-Rings, Aluminum (ADC-12) Material, 6 GPM Max Flow, 3/8" NPT Fluid Port, 1/4" Female NPT (includes ball valve) Air Inlet, 3/8" Female NPT (includes silencer) Air Exhaust, Aluminum Air Motor, 10 Feet Max Suction Lift

Actual Weight10
Air Exhaust3/8" Female NPT (includes silencer)
Air Inlet1/4" Female NPT (includes ball valve)
Air Supply Pressure20 to 100 PSI (1.4 to 7 kgf/cm²)
DiaphragmPTFE
Discharge Volume Per Cycle0.020 gallons (76 cc)
Fluid Port3/8" NPT
Liquid Temperature212°F (100°C)
MaterialAluminum (ADC-12)
Max Cycles Per Minute300
Maximum Flow (GPM)6 GPM
Max Suction Lift10 Feet
Model Number851839
Model SeriesDP-10 Series
MotorAluminum Air Motor
Solids (Inches)1/32" (1 mm)
Type851839
Valve / Seat / O-RingPTFE

DP-10 / DP-15 Series Information

Features & Benefits
DP-10 Port Dimensions
Intake & discharge connection:
Polypropylene (PPG) 3/8" Female NPT
Aluminum (ADC-12) 3/8" Female NPT
Stainless Steel (316) 3/8" Female NPT

DP-15 Port Dimensions
Intake & discharge connection:
Polypropylene (PPG) 1/2" Female NPT
Groundable Acetal 1/2" Female NPT
Air Inlet /Exhaust
Air inlet (incl. ball valve): 1/4" Female NPT
Air exhaust (incl. silencer): 3/8" Female NPT

Maximum Liquid Temperature*
Diaphragm Material Temperature
Buna N 180°F (82°C)
Neoprene 180°F (82°C)
Santoprene® (TPO) 180°F (82°C)
PTFE 212°F (100°C)
Hytrel® (TPEE) 248°F (120°C)
Viton® fluoroelastomer 248°F (120°C)

*The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene and Groundable Acetal pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material.

Categories

0 Reviews

Add a Review

You need to sign in to add a review.

SeriesTypeLink

DP-10 / DP-15 Series

Yamada Pumps DP-10 Pump Manual

View

DP-10 / DP-15 Series

Yamada Pumps DP-15 Pump Manual

View

DP-10 / DP-15 Series

Yamada Pumps DP-10 / DP-15 Pump Specifications

View

DP-10 / DP-15 Series

Yamada Pumps DP-10 Pump PPG CAD Drawing

View

DP-10 / DP-15 Series

Yamada Pumps DP-10 Pump Acetal CAD Drawing

View

DP-10 / DP-15 Series

Yamada Pumps DP-10 Pump Aluminum CAD Drawing

View

DP-10 / DP-15 Series

Yamada Pumps DP-10 Pump SS CAD Drawing

View

DP-10 / DP-15 Series

Yamada Pumps DP-10BAT Repair Parts

View

Repair Parts for DP-10BAT

Productqty.shippingprice
K10-AT

K10-AT

Ships in 1 - 2 Weeks $100.30
