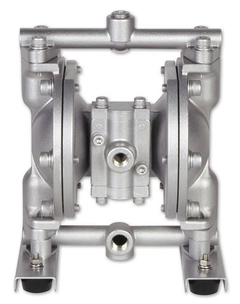

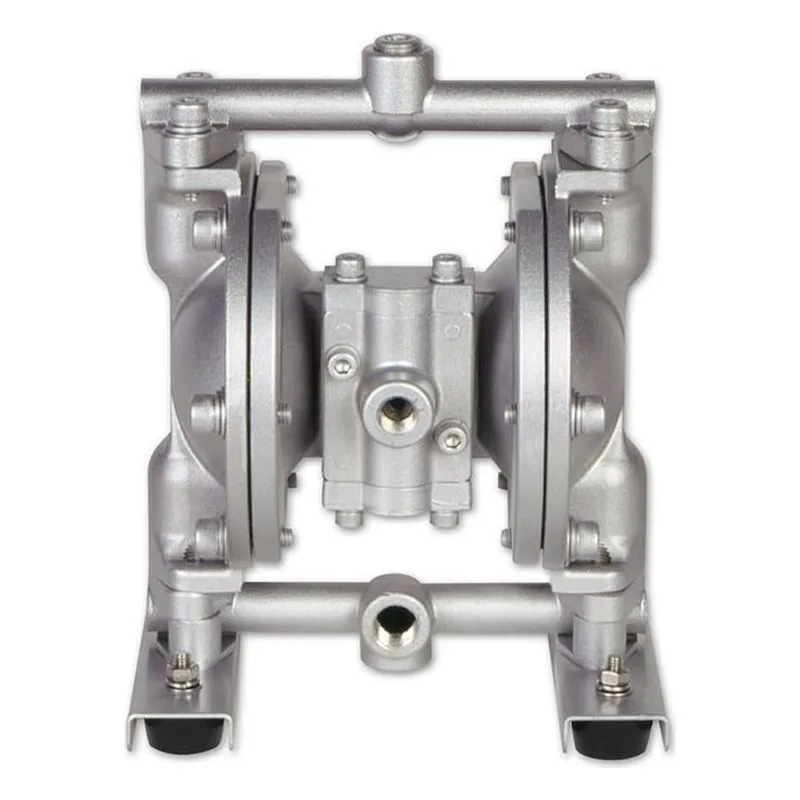

Yamada Pumps DP-10BAH Type, Model 851847 DP-10 Series, Air Operated Double Diaphragm Pump, Hytrel Diaphragm, Hytrel / Buna-N Flat Check Valve / O-Rings, Aluminum (ADC-12) Material, 6 GPM Max Flow, 3/8" NPT Fluid Port, 1/4" Female NPT (includes ball valve) Air Inlet, 3/8" Female NPT (includes silencer) Air Exhaust, Aluminum Air Motor, 10 Feet Max Suction Lift
Yamada Pumps DP-10BAH Type, Model 851847 DP-10 Series, Air Operated Double Diaphragm Pump, Hytrel Diaphragm, Hytrel / Buna-N Flat Check Valve / O-Rings, Aluminum (ADC-12) Material, 6 GPM Max Flow, 3/8" NPT Fluid Port, 1/4" Female NPT (includes ball valve) Air Inlet, 3/8" Female NPT (includes silencer) Air Exhaust, Aluminum Air Motor, 10 Feet Max Suction Lift
Actual Weight | 10 |
Air Exhaust | 3/8" Female NPT (includes silencer) |
Air Inlet | 1/4" Female NPT (includes ball valve) |
Air Supply Pressure | 20 to 100 PSI (1.4 to 7 kgf/cm²) |
Diaphragm | Hytrel |
Discharge Volume Per Cycle | 0.020 gallons (76 cc) |
Fluid Port | 3/8" NPT |
Liquid Temperature | 248°F (120°C) |
Material | Aluminum (ADC-12) |
Max Cycles Per Minute | 300 |
Maximum Flow (GPM) | 6.0 GPM / 22.7 LPM |
Max Suction Lift | 10 Feet |
Model Number | 851847 |
Model Series | DP-10 Series |
Motor | Aluminum Air Motor |
Solids (Inches) | 1/32" (1 mm) |
Type | 851847 |
Valve / Seat / O-Ring | Hytrel / Buna-N |
Features & Benefits |
---|
DP-10 Port Dimensions Intake & discharge connection: Polypropylene (PPG) 3/8" Female NPT Aluminum (ADC-12) 3/8" Female NPT Stainless Steel (316) 3/8" Female NPT DP-15 Port Dimensions Intake & discharge connection: Polypropylene (PPG) 1/2" Female NPT Groundable Acetal 1/2" Female NPT Air Inlet /Exhaust Air inlet (incl. ball valve): 1/4" Female NPT Air exhaust (incl. silencer): 3/8" Female NPT Maximum Liquid Temperature* Diaphragm Material Temperature Buna N 180°F (82°C) Neoprene 180°F (82°C) Santoprene® (TPO) 180°F (82°C) PTFE 212°F (100°C) Hytrel® (TPEE) 248°F (120°C) Viton® fluoroelastomer 248°F (120°C) *The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene and Groundable Acetal pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material. |
Aerospace
623 productsAutomotive
623 productsChemical Delivery / Transfer
623 productsGas & Petroleum
623 productsMining
623 productsPaints & Dyes
644 productsPrinting & Ink
644 productsStone / Clay / Glass
623 productsWashing / Cleaning Systems
644 productsWater Treatment
623 productsType | Title | Link | |
---|---|---|---|
Yamada Pumps DP-10 Pump Manual | View | ||
Yamada Pumps DP-15 Pump Manual | View | ||
Yamada Pumps DP-10 / DP-15 Pump Specifications | View | ||
Yamada Pumps DP-10 Pump PPG CAD Drawing | View | ||
Yamada Pumps DP-10 Pump Acetal CAD Drawing | View | ||
Yamada Pumps DP-10 Pump Aluminum CAD Drawing | View | ||
Yamada Pumps DP-10 Pump SS CAD Drawing | View | ||
DP-10BAC Yamada Pump Repair Parts Exploded View | View |
