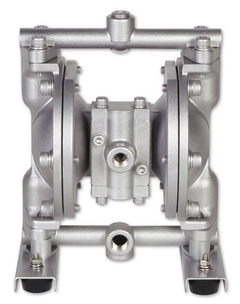

Image shown may not be actual product

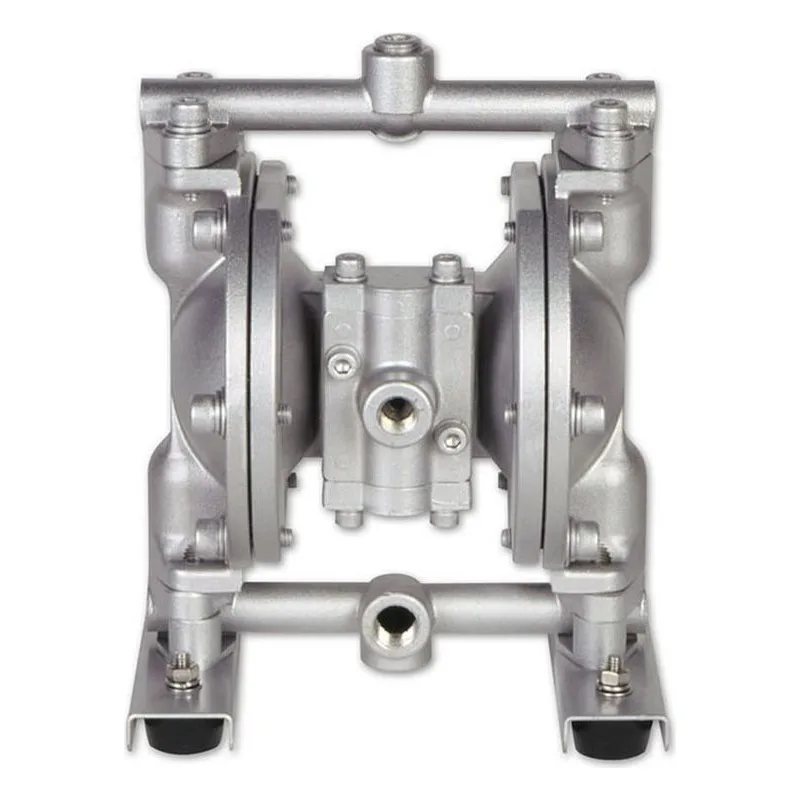

DP-10BAC
Yamada America DP-10BAC DP-10 Series Air Operated Double Diaphragm Pump, Model Number 851842. Aluminum Body, Neoprene Diaphragm, Balls & O-Rings, Aluminum Air Motor. 3/8" FNPT Inlet & Outlet, 6 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.
$800.00
- Best Price Guarantee!
- 160PumpPoints
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Series Info
- Reviews
- Literature/Manuals
- Repair Parts
DP-10BAC
Yamada America DP-10BAC DP-10 Series Air Operated Double Diaphragm Pump, Model Number 851842. Aluminum Body, Neoprene Diaphragm, Balls & O-Rings, Aluminum Air Motor. 3/8" FNPT Inlet & Outlet, 6 GPM Flow Rate, Passes up to 1/32" (1mm) Solids.
| Air Exhaust | 3/8" Female NPT (includes silencer) |
| Air Inlet | 1/4" Female NPT (includes ball valve) |
| Air Supply Pressure | 20-100 PSI |
| Connection Type | FNPT |
| Diaphragm | Neoprene (CR) |
| Discharge NPT (Inches) | 3/8" |
| Discharge Volume Per Cycle | 0.020 Gallons |
| Fluid Port | 3/8" |
| Liquid Temperature | 180°F (82°C) |
| Material | Aluminum |
| Max Cycles Per Minute | 300 |
| Maximum Flow (GPM) | 6 |
| Max Suction Lift | 10' |
| Model Number | 851842 |
| Model Series | DP-10 |
| Motor | Aluminum |
| Solids (Inches) | 1/32" (1mm) |
| Suction NPT (Inches) | 3/8" |
| Valve Balls | Neoprene (CR) |
| Valve / Seat / O-Ring | Neoprene (CR) O-Rings |
| Valve Type | Ball |
DP-10 / DP-15 Series Information
| Features & Benefits |
|---|
| DP-10 Port Dimensions Intake & discharge connection: Polypropylene (PPG) 3/8" Female NPT Aluminum (ADC-12) 3/8" Female NPT Stainless Steel (316) 3/8" Female NPT DP-15 Port Dimensions Intake & discharge connection: Polypropylene (PPG) 1/2" Female NPT Groundable Acetal 1/2" Female NPT Air Inlet /Exhaust Air inlet (incl. ball valve): 1/4" Female NPT Air exhaust (incl. silencer): 3/8" Female NPT Maximum Liquid Temperature* Diaphragm Material Temperature Buna N 180°F (82°C) Neoprene 180°F (82°C) Santoprene® (TPO) 180°F (82°C) PTFE 212°F (100°C) Hytrel® (TPEE) 248°F (120°C) Viton® fluoroelastomer 248°F (120°C) *The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene and Groundable Acetal pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material. |
