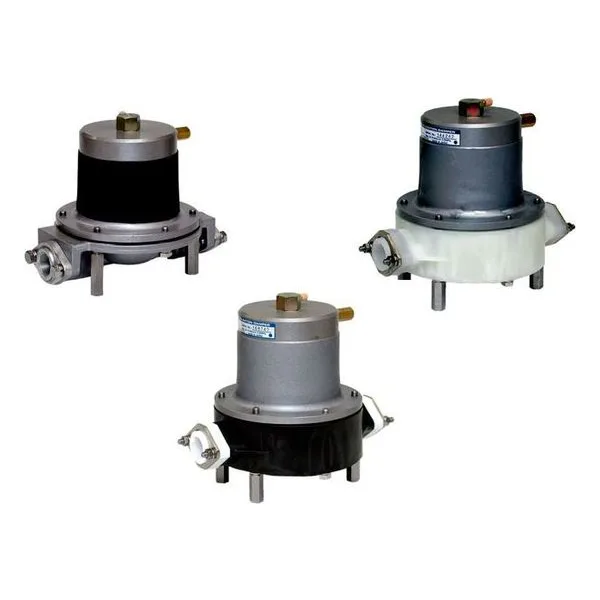

Yamada AD-25 Series dampeners maximize flow consistency by smoothing jitter due to diaphragm pulsation. Yamada AD-25 dampeners are available in aluminum, cast iron, stainless steel (316), Kynar (PVDF), and polypropylene construction, with a wide variety of diaphragm materials.
Fits pump models NDP-20, NDP-25, and NDP-32
Yamada Pumps AD-25SS Type, Model 853341 AD Series Series, Santoprene Diaphragm, 316 SS Material, 1/4" Female NPT Air Inlet, 1" NPT IN-LINE Fluid Port
Yamada Pumps AD-25SE-FDA Type, Model 853337-FDA FDA Compliant Sanitary Pulsation Dampeners Series, EPDM Diaphragm, 1/4" Female NPT Air Inlet, 1-1/2" Sanitary Clamp Size
Yamada Pumps AD-25SH-FDA Type, Model 853340-FDA FDA Compliant Sanitary Pulsation Dampeners Series, Hytrel Diaphragm, 1/4" Female NPT Air Inlet, 1-1/2" Sanitary Clamp Size
Yamada Pumps AD-25ST-FDA Type, Model 853339-FDA FDA Compliant Sanitary Pulsation Dampeners Series, PTFE Diaphragm, 1/4" Female NPT Air Inlet, 1-1/2" Sanitary Clamp Size
Yamada Pumps AD-25PC Type, Model 853342 AD Series Series, Neoprene Diaphragm, Polypropylene (PPG) Material, 1/4" Female NPT Air Inlet, 1" NPT IN-LINE Fluid Port
Yamada Pumps AD-25PN Type, Model 853343 AD Series Series, Buna N Diaphragm, Polypropylene (PPG) Material, 1/4" Female NPT Air Inlet, 1" NPT IN-LINE Fluid Port
Yamada Pumps AD-25PE Type, Model 853344 AD Series Series, EPDM Diaphragm, Polypropylene (PPG) Material, 1/4" Female NPT Air Inlet, 1" NPT IN-LINE Fluid Port
Yamada Pumps AD-25PH Type, Model 853347 AD Series Series, Hytrel Diaphragm, Polypropylene (PPG) Material, 1/4" Female NPT Air Inlet, 1" NPT IN-LINE Fluid Port
Yamada Pumps AD-25PS Type, Model 853348 AD Series Series, Santoprene Diaphragm, Polypropylene (PPG) Material, 1/4" Female NPT Air Inlet, 1" NPT IN-LINE Fluid Port
Yamada Pumps AD-25PV Type, Model 853345 AD Series Series, Viton Diaphragm, Polypropylene (PPG) Material, 1/4" Female NPT Air Inlet, 1" NPT IN-LINE Fluid Port
Yamada Pumps AD-25PT Type, Model 853346 AD Series Series, PTFE Diaphragm, Polypropylene (PPG) Material, 1/4" Female NPT Air Inlet, 1" NPT IN-LINE Fluid Port
Yamada Pumps AD-25AC Type, Model 853328 AD Series Series, Neoprene Diaphragm, Aluminum (ADC-12) Material, 1/4" Female NPT Air Inlet, 1" NPT IN-LINE Fluid Port
