UL Fuel Transfer Pumps

UL Fuel Transfer Pumps

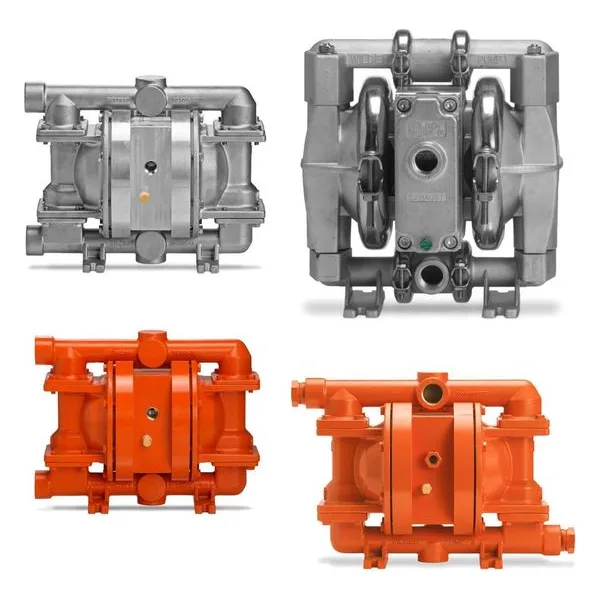

Wilden® UL-Certified AODD Pumps for Fuel Transfer Applications

Wilden® pumps that have been certified to UL 79 standards to meet requirements for fuel transfer applications. Wilden UL-certified pumps can be used when dispensing gas products, fuels, petroleum or any other lubricating applications. UL 79 certified pumps meet the flammable and combustible liquids, National Electric, Automotive and Marine Service Station codes for electrically, hydraulically, or pneumatically driven power-operated pumps. UL 79 certified pumps are also qualified for submersible use in storage tanks providing petroleum products to remote control flammable liquid dispensing devices.

FEATURES & BENEFITS
• Discharge pressures up to 50 psig
• High suction lift
• Energy-efficient Pro-Flo SHIFT Air Distribution System
• Greater flow – more gallons pumped per SCFM
• Portatable and submersible
• Increased on/off reliability

Applications
Fuel transfer applications, such as:
• Lube Oil
• Petrochemical

13 mm (1/2") Pro-Flo® SHIFT Series Clamped Metal AODD Pump PS1
25 mm (1") Pro-Flo® SHIFT Series Bolted Metal AODD Pump PS220/PS230

Search Results

(13 results)
Sort & Filter 2
Series: UL Fuel Transfer Pumps Remove FilterManufacturer: Wilden Remove FilterClear all
  • 01-11339

    01-11339

    Wilden

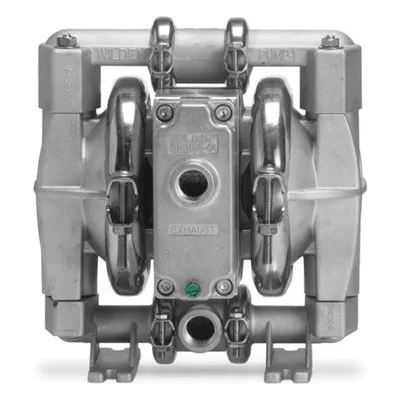

    Wilden 01-11339 1/2" Clamped Metal Air Operated Double Diaphragm UL Fuel Transfer Pump (PS1), MODEL: PS1/AAAAA/BNS/BN/ABN/0495. 60.2 lpm (15.9 gpm) Max Flow, 13 mm (1/2") NPT Suction & Discharge. Aluminum Wetted Parts, Outer Piston, Air Chamber, Center Block, Air Valve & Seat, Buna-N O-Rings, Traditional Diaphragms & Balls. 01-9993-99 ADS Repair Kit, 01-9804-52 Wet End Kit, 72-7069 SD Dampener, 01-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    Call For Pricing

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    View Item
  • 01-11354

    01-11354

    Wilden

    Wilden 01-11354 1/2" Clamped Metal Air Operated Double Diaphragm UL Fuel Transfer Pump (PS1), MODEL: PS1/SSAAA/BNS/BN/SBN/0495. 60.2 lpm (15.9 gpm) Max Flow, 13 mm (1/2") NPT Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston & Seats, Aluminum Air Chamber, Center Block & Air Valve, Buna-N O-Rings, Traditional Diaphragms & Balls. 01-9993-99 ADS Repair Kit, 01-9804-52 Wet End Kit, 72-7087 SD Dampener, 01-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    Call For Pricing

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    View Item
  • 02-13167

    02-13167

    Wilden

    Wilden 02-13167 1" Bolted Metal Air Operated Double Diaphragm UL Fuel Transfer Pump (PS220), MODEL: PS220/AAAAA/TNU/TF/ATF/0492. 25 mm (1")- Side Ported NPT Suction & Discharge. Aluminum Wetted Parts, Outer Piston, Air Chamber, Center Block, Air Valve & Seat, PTFE O-Rings & Balls, PTFE w/Neoprene Backup Reduced-Stroke Diaphragms. 02-9993-99-320 ADS Repair Kit, 02-9814-55 Wet End Kit, 70-7381 SD Dampener, 73-1000 ISD Dampener, 01-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    Call For Pricing

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    View Item
  • 02-13168

    02-13168

    Wilden

    Wilden 02-13168 1" Bolted Metal Air Operated Double Diaphragm UL Fuel Transfer Pump (PS220), MODEL: PS220/AAAAA/TNU/TF/ATF/0493. 25 mm (1")- Center Ported NPT Suction, 19 mm (3/4")- Center Ported NPT Discharge. Aluminum Wetted Parts, Outer Piston, Air Chamber, Center Block, Air Valve & Seat, PTFE O-Rings & Balls, PTFE w/Neoprene Backup Reduced-Stroke Diaphragms. 02-9993-99-320 ADS Repair Kit, 02-9814-55 Wet End Kit, 70-7381 SD Dampener, 73-1000 ISD Dampener, 01-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    Call For Pricing

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    View Item
  • 02-13169

    02-13169

    Wilden

    Wilden 02-13169 1" Bolted Metal Air Operated Double Diaphragm UL Fuel Transfer Pump (PS220), MODEL: PS220/AAAAA/TNU/TF/ATF/0494. 25 mm (1")- Center Ported NPT Suction, 19 mm (3/4")- Center Ported NPT Discharge. Aluminum Wetted Parts, Outer Piston, Air Chamber, Center Block, Air Valve & Seat, PTFE O-Rings & Balls, PTFE w/Neoprene Backup Reduced-Stroke Diaphragms. 02-9993-99-320 ADS Repair Kit, 02-9814-55 Wet End Kit, 70-7381 SD Dampener, 73-1000 ISD Dampener, 01-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    Call For Pricing

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    View Item
  • 02-13170

    02-13170

    Wilden

    Wilden 02-13170 1" Bolted Metal Air Operated Double Diaphragm UL Fuel Transfer Pump (PS220), MODEL: PS220/AAAAA/BNS/BN/ABN/0492. 204 lpm (54 gpm) Max Flow, 25 mm (1")- Side Ported NPT Suction & Discharge. Aluminum Wetted Parts, Outer Piston, Air Chamber, Center Block, Air Valve & Seat, Buna-N O-Rings, Traditional Diaphragms & Balls. 02-9993-99-320 ADS Repair Kit, 02-9814-52 Wet End Kit, 70-7373 SD Dampener, 01-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    Call For Pricing

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    View Item
  • 02-13171

    02-13171

    Wilden

    Wilden 02-13171 1" Bolted Metal Air Operated Double Diaphragm UL Fuel Transfer Pump (PS220), MODEL: PS220/AAAAA/BNS/BN/ABN/0493. 204 lpm (54 gpm) Max Flow, 25 mm (1")- Center Ported NPT Suction, 19 mm (3/4")- Center Ported NPT Discharge. Aluminum Wetted Parts, Outer Piston, Air Chamber, Center Block, Air Valve & Seat, Buna-N O-Rings, Traditional Diaphragms & Balls. 02-9993-99-320 ADS Repair Kit, 02-9814-52 Wet End Kit, 70-7373 SD Dampener, 01-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    Call For Pricing

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    View Item
  • 02-13172

    02-13172

    Wilden

    Wilden 02-13172 1" Bolted Metal Air Operated Double Diaphragm UL Fuel Transfer Pump (PS220), MODEL: PS220/AAAAA/BNS/BN/ABN/0494. 204 lpm (54 gpm) Max Flow, 25 mm (1")- Center Ported NPT Suction, 19 mm (3/4")- Center Ported NPT Discharge. Aluminum Wetted Parts, Outer Piston, Air Chamber, Center Block, Air Valve & Seat, Buna-N O-Rings, Traditional Diaphragms & Balls. 02-9993-99-320 ADS Repair Kit, 02-9814-52 Wet End Kit, 70-7373 SD Dampener, 01-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    Call For Pricing

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    View Item
  • 02-13173

    02-13173

    Wilden

    Wilden 02-13173 1" Bolted Metal Air Operated Double Diaphragm UL Fuel Transfer Pump (PS220), MODEL: PS220/SSAAA/TNU/TF/STF/0492. 25 mm (1")- Side Ported NPT Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston & Seats, Aluminum Air Chamber, Center Block & Air Valve, PTFE O-Rings & Balls, PTFE w/Neoprene Backup Reduced-Stroke Diaphragms. 02-9993-99-320 ADS Repair Kit, 02-9814-55 Wet End Kit, 70-7405 SD Dampener, 73-1000 ISD Dampener, 01-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    Call For Pricing

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    View Item
  • 02-13174

    02-13174

    Wilden

    Wilden 02-13174 1" Bolted Metal Air Operated Double Diaphragm UL Fuel Transfer Pump (PS220), MODEL: PS220/SSAAA/TNU/TF/STF/0493. 25 mm (1")- Center Ported NPT Suction, 19 mm (3/4")- Center Ported NPT Discharge. Stainless Steel Wetted Parts, Outer Piston & Seats, Aluminum Air Chamber, Center Block & Air Valve, PTFE O-Rings & Balls, PTFE w/Neoprene Backup Reduced-Stroke Diaphragms. 02-9993-99-320 ADS Repair Kit, 02-9814-55 Wet End Kit, 70-7405 SD Dampener, 73-1000 ISD Dampener, 01-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    Call For Pricing

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    View Item
  • 02-13175

    02-13175

    Wilden

    Wilden 02-13175 1" Bolted Metal Air Operated Double Diaphragm UL Fuel Transfer Pump (PS220), MODEL: PS220/SSAAA/BNS/BN/SBN/0492. 204 lpm (54 gpm) Max Flow, 25 mm (1")- Side Ported NPT Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston & Seats, Aluminum Air Chamber, Center Block & Air Valve, Buna-N O-Rings, Traditional Diaphragms & Balls. 02-9993-99-320 ADS Repair Kit, 02-9814-52 Wet End Kit, 70-7380 SD Dampener, 73-1000 ISD Dampener, 01-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    Call For Pricing

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    View Item
  • 02-13176

    02-13176

    Wilden

    Wilden 02-13176 1" Bolted Metal Air Operated Double Diaphragm UL Fuel Transfer Pump (PS220), MODEL: PS220/SSAAA/BNS/BN/SBN/0493. 204 lpm (54 gpm) Max Flow, 25 mm (1")- Center Ported NPT Suction, 19 mm (3/4")- Center Ported NPT Discharge. Stainless Steel Wetted Parts, Outer Piston & Seats, Aluminum Air Chamber, Center Block & Air Valve, Buna-N O-Rings, Traditional Diaphragms & Balls. 02-9993-99-320 ADS Repair Kit, 02-9814-52 Wet End Kit, 70-7380 SD Dampener, 73-1000 ISD Dampener, 01-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    Call For Pricing

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    View Item
