20-10029

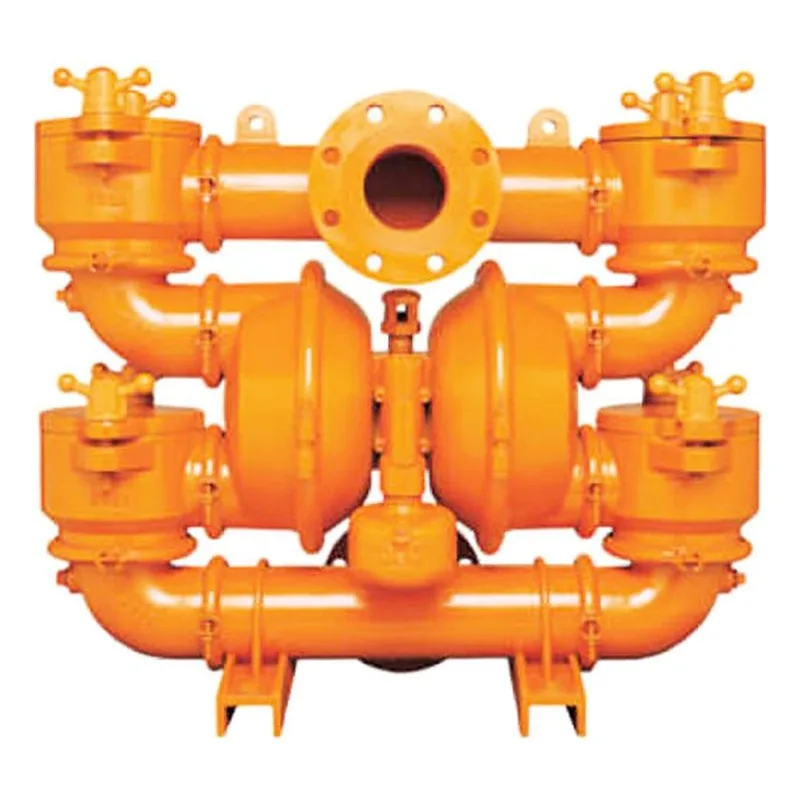

Image shown may not be actual product

20-10029

0 reviews

Wilden 20-10029 Turbo-Flo 4" Clamped Metal Air Operated Double Diaphragm Utility Pump (T20), MODEL: T20/WWWAB/NES/PU/PEP. 1,041 lpm (275 gpm) Max Flow, 102 mm (4") ANSI Flanged Suction & Discharge. Ductile Iron Wetted Parts, Outer Piston & Air Chamber, Aluminum Center Block, Brass Air Valve, Polypropylene Seat, EPDM O-Rings, Neoprene Traditional Diaphragm, Polyurethane Balls. 15-9980-07 ADS Repair Kit Available to order. A PSG Dover Brand Product.

$14,310.90

Best Price Guarantee!
2861PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: 20-10029 | Model #: T20/WWWAB/NES/PU/PEP

Overview
Series Info
Reviews
Literature/Manuals

20-10029

Air Chamber	Ductile Iron
Air Distribution System	Turbo-Flo
Air Inlet	3/4" FNPT
Center Block	Aluminum
Connection Type	ANSI
Construction	Clamped
Diaphragm	Neoprene
Diaphragm Type	Traditional
Discharge NPT (Inches)	102 mm (4")
Discharge Volume Per Cycle	4.62 L (1.22 gal)
Material	Metal
Maximum Flow (GPM)	1,041 lpm (275 gpm)
Maximum Working Pressure (PSIG)	8.6 bar (125 psi)

Max Suction Lift	3.66 m (12') Dry, 9.14 m (30') Wet
Model Number	T20/WWWAB/NES/PU/PEP
Model Series	T20
Outer Piston	Ductile Iron
Product Notes	15-9980-07 ADS Repair Kit Available to order.
Size	4"
Solids (Inches)	35 mm (1-3/8")
Suction NPT (Inches)	102 mm (4")
Valve Balls	Polyurethane
Valve / Seat / O-Ring	Brass Air Valve / Polypropylene Seat / EPDM O-Rings
Valve Type	Ball Valve
Wetted Parts	Ductile Iron

Turbo-Flo Utility Pumps Information

Product Type
Diaphragm Pumps, Self Priming
Features & Benefits
TURBO-FLO™ Operating on only differential pressure, there are no mechanical trip rods, bearings or springs to wear or repair, making Turbo-Flo an easy-to-maintain, cost-effective, economical ADS solution for use with AODD pumps.
