15-11360

Image shown may not be actual product

15-11360

0 reviews

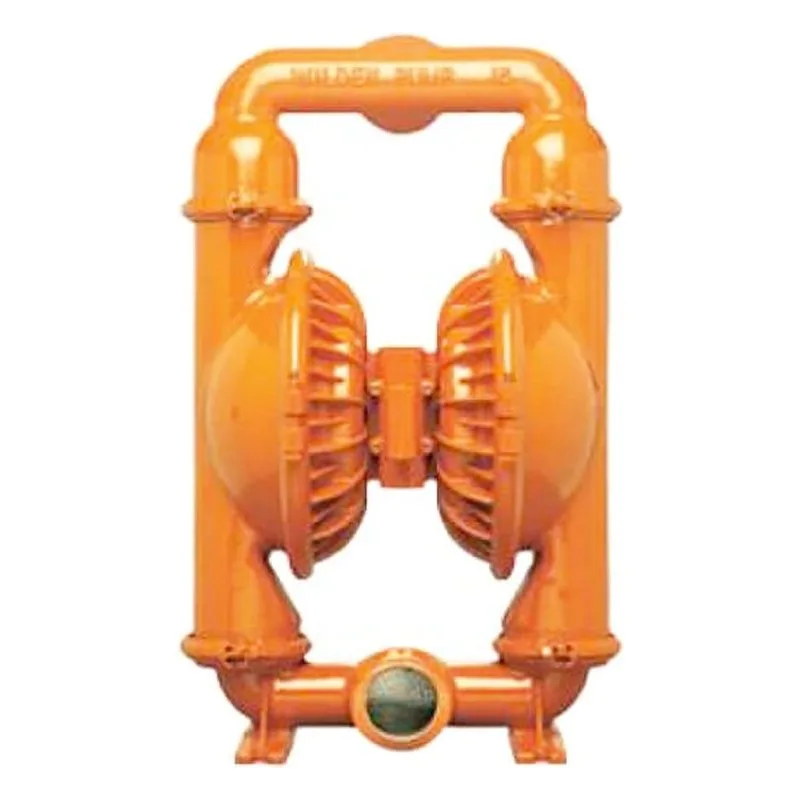

Wilden 15-11360 Turbo-Flo 3" Clamped Metal Air Operated Double Diaphragm Utility Pump (T15), MODEL: T15/WSWPB/TNU/TF/MTF. 704 lpm (186 gpm) Max Flow, 76 mm (3") NPT Suction & Discharge. Ductile Iron Wetted Parts & Air Chamber, Stainless Steel Outer Piston, Polypropylene Center Block, Brass Air Valve, Mild Steel Seat, PTFE O-Rings & Balls, PTFE w/Neoprene Backup Reduced-Stroke Diaphragms. 15-9980-07 ADS Repair Kit, 15-9804-55 Wet End Kit Available to order. A PSG Dover Brand Product.

$7,429.50

Best Price Guarantee!
1485PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: 15-11360 | Model #: T15/WSWPB/TNU/TF/MTF

Overview
Series Info
Reviews
Literature/Manuals

15-11360

Air Chamber	Ductile Iron
Air Distribution System	Turbo-Flo
Air Inlet	3/4" FNPT
Center Block	Polypropylene
Connection Type	NPT
Construction	Clamped
Diaphragm	PTFE w/Neoprene Backup
Diaphragm Type	Reduced-Stroke
Discharge NPT (Inches)	76 mm (3")
Discharge Volume Per Cycle	3.6 L (0.95 gal)
Material	Metal
Maximum Flow (GPM)	704 lpm (186 gpm)
Maximum Working Pressure (PSIG)	8.6 bar (125 psi)

Max Suction Lift	3.49 m (13') Dry, 8.53 m (28') Wet
Model Number	T15/WSWPB/TNU/TF/MTF
Model Series	T15
Outer Piston	Stainless Steel
Product Notes	15-9980-07 ADS Repair Kit, 15-9804-55 Wet End Kit Available to order.
Size	3"
Solids (Inches)	10 mm (3/8")
Suction NPT (Inches)	76 mm (3")
Valve Balls	PTFE
Valve / Seat / O-Ring	Brass Air Valve / Mild Steel Seat / PTFE O-Rings
Valve Type	Ball Valve
Wetted Parts	Ductile Iron

Turbo-Flo Utility Pumps Information

Product Type
Diaphragm Pumps, Self Priming
Features & Benefits
TURBO-FLO™ Operating on only differential pressure, there are no mechanical trip rods, bearings or springs to wear or repair, making Turbo-Flo an easy-to-maintain, cost-effective, economical ADS solution for use with AODD pumps.
