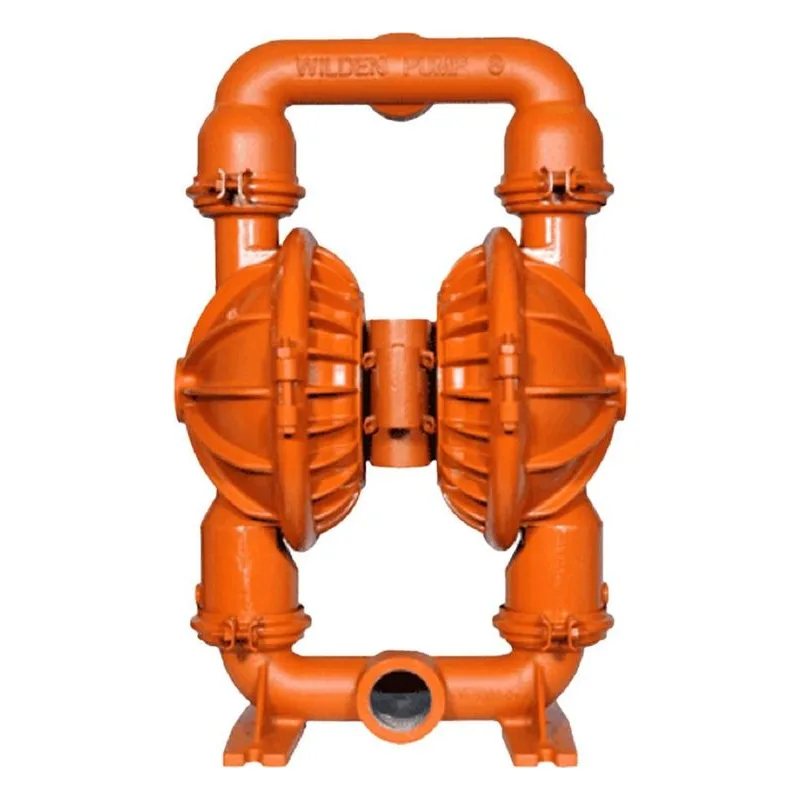

Wilden 08-11313 Turbo-Flo 2" Clamped Metal Air Operated Double Diaphragm Utility Pump (T8), MODEL: T8/WWAAB/WFS/WF/WF. 613 lpm (162 gpm) Max Flow, 51 mm (2") NPT Suction & Discharge. Ductile Iron Wetted Parts & Outer Piston, Aluminum Air Chamber & Center Block, Brass Air Valve, Wil-Flex Seats, Traditional Diaphragms & Balls. 08-9980-07 ADS Repair Kit, 08-9804-58 Wet End Kit, 71-7215 SD Dampener, 04-8345-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

$2,691.00

Best Price Guarantee!
538PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: 08-11313 | Model #: T8/WWAAB/WFS/WF/WF

Overview
Series Info
Reviews
Literature/Manuals

08-11313

Air Chamber	Aluminum
Air Distribution System	Turbo-Flo
Air Inlet	3/4" FNPT
Center Block	Aluminum
Connection Type	NPT
Construction	Clamped
Diaphragm	Wil-Flex (Santoprene)
Diaphragm Type	Traditional
Discharge NPT (Inches)	51 mm (2")
Discharge Volume Per Cycle	2.8 L (0.74 gal)
Material	Metal
Maximum Flow (GPM)	613 lpm (162 gpm)
Maximum Working Pressure (PSIG)	8.6 bar (125 psi)

Max Suction Lift	6.1 m (20') Dry, 9.5 m (31') Wet
Model Number	T8/WWAAB/WFS/WF/WF
Model Series	T8
Outer Piston	Ductile Iron
Product Notes	08-9980-07 ADS Repair Kit, 08-9804-58 Wet End Kit, 71-7215 SD Dampener, 04-8345-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order.
Size	2"
Solids (Inches)	6.4 mm (1/4")
Suction NPT (Inches)	51 mm (2")
Valve Balls	Wil-Flex (Santoprene)
Valve / Seat / O-Ring	Brass Air Valve / Wil-Flex (Santoprene) Seat
Valve Type	Ball Valve
Wetted Parts	Ductile Iron

Turbo-Flo Utility Pumps Information

Product Type
Diaphragm Pumps, Self Priming
Features & Benefits
TURBO-FLO™ Operating on only differential pressure, there are no mechanical trip rods, bearings or springs to wear or repair, making Turbo-Flo an easy-to-maintain, cost-effective, economical ADS solution for use with AODD pumps.
