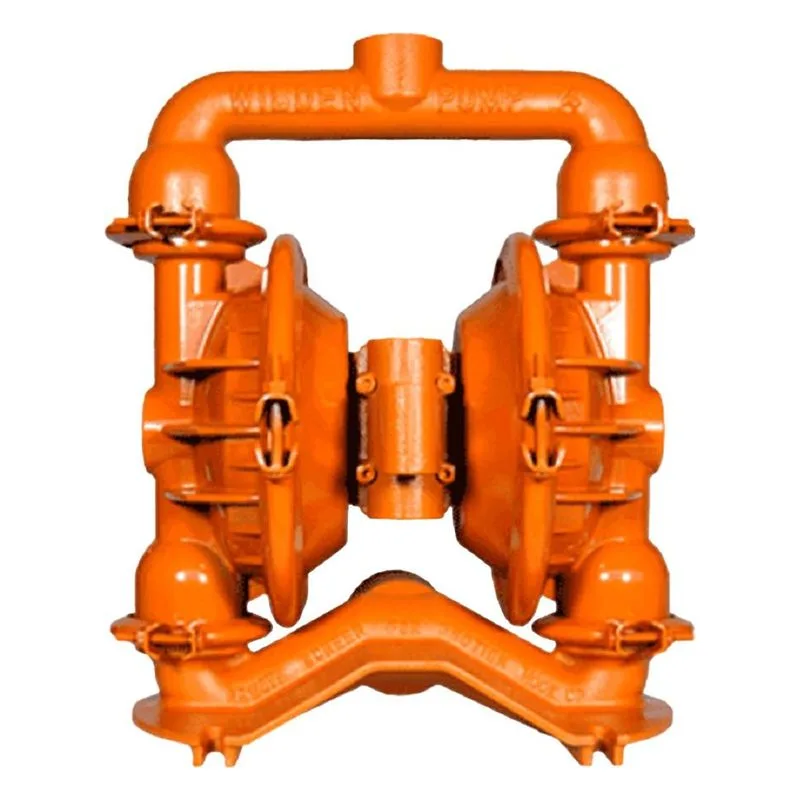

Image shown may not be actual product

04-10028

0 reviews

Wilden 04-10028 Turbo-Flo 1-1/2" Clamped Metal Air Operated Double Diaphragm Utility Pump (T4), MODEL: T4/AAMAB/TNU/TF/ATF. 235 lpm (62 gpm) Max Flow, 38 mm (1-1/2") NPT Suction & Discharge. Aluminum Wetted Parts, Outer Piston, Center Block & Seats, Mild Steel Air Chamber, Brass Air Valve, PTFE O-Rings & Balls, PTFE w/Neoprene Backup Reduced-Stroke Diaphragms. 04-9980-07 ADS Repair Kit, 04-9804-55 Wet End Kit, 71-7554 SD Dampener, 01-8345-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

$2,482.20

Best Price Guarantee!
496PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: 04-10028 | Model #: T4/AAMAB/TNU/TF/ATF

Overview
Series Info
Reviews
Literature/Manuals

04-10028

Air Chamber	Mild Steel
Air Distribution System	Turbo-Flo
Air Inlet	1/2" FNPT
Center Block	Aluminum
Connection Type	NPT
Construction	Clamped
Diaphragm	PTFE w/Neoprene Backup
Diaphragm Type	Reduced-Stroke
Discharge NPT (Inches)	38 mm (1-1/2")
Discharge Volume Per Cycle	2.6 L (0.69 gal)
Material	Metal
Maximum Flow (GPM)	235 lpm (62 gpm)
Maximum Working Pressure (PSIG)	8.6 bar (125 psi)

Max Suction Lift	2.74 m (9') Dry, 8.53 m (28') Wet
Model Number	T4/AAMAB/TNU/TF/ATF
Model Series	T4
Outer Piston	Aluminum
Product Notes	04-9980-07 ADS Repair Kit, 04-9804-55 Wet End Kit, 71-7554 SD Dampener, 01-8345-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order.
Size	1-1/2"
Solids (Inches)	4.8 mm (3/16")
Suction NPT (Inches)	38 mm (1-1/2")
Valve Balls	PTFE
Valve / Seat / O-Ring	Brass Air Valve / Aluminum Seat / PTFE O-Rings
Valve Type	Ball Valve
Wetted Parts	Aluminum

Turbo-Flo Utility Pumps Information

Product Type
Diaphragm Pumps, Self Priming
Features & Benefits
TURBO-FLO™ Operating on only differential pressure, there are no mechanical trip rods, bearings or springs to wear or repair, making Turbo-Flo an easy-to-maintain, cost-effective, economical ADS solution for use with AODD pumps.
