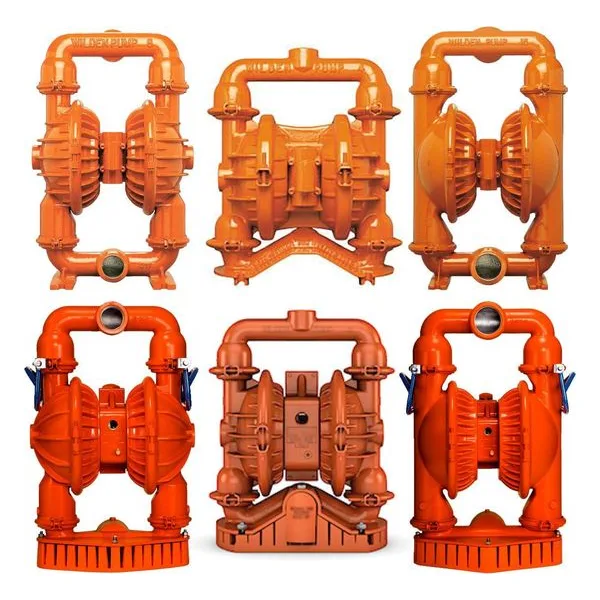

Wilden® AODD Pumps for Mining Applications

Wilden® Stallion® Series Air-Operated Double-Diaphragm (AODD) Pumps are ideally suited for rugged mining applications thanks to their unique ability to handle solid-laden mining slurries with ease. Furthering the Stallion Series pump’s ability to handle the toughest mining applications is a robust design featuring a large internal clearance and flow-through path for large-solids passage that prevents the pump from clogging. The Stallion Series is also designed with a polyurethane screen base at its inlet to provide additional durability.

Stallion Series technology incorporates an altered ball/seat check-valve assembly to allow for solids passage. Its polyurethane screen base at the inlet gives added durability.

• Clamped design with handles for lightweight portability
• Large internal clearances due to modified ball, seats, diaphragms and shafts to handle solid-laden slurries
• Polyurethane screen base to act as an initial filter to keep larger solids from damaging the pump
• Powered by Pro-Flo® SHIFT air distribution system (ADS)

38 mm (1-1/2") Pro-Flo® SHIFT Stallion® Series Clamped Metal AODD Pump PS4
51 mm (2") Pro-Flo® SHIFT Stallion® Clamped Metal AODD Pump PS8
76 mm (3") Pro-Flo® SHIFT Stallion® Clamped Metal AODD Pump PS15

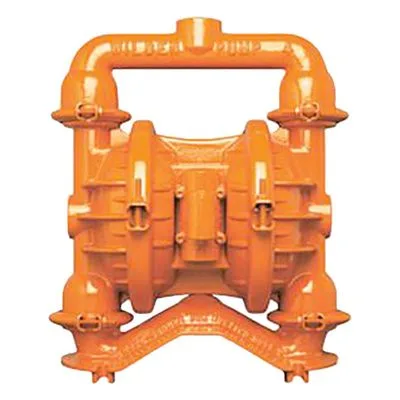

38 mm (1-1/2") Turbo-Flo™ Stallion® Series Clamped Metal AODD Pump T4
51 mm (2") Turbo-Flo™ Stallion® Series Clamped Metal AODD Pump T8
76 mm (3") Turbo-Flo™ Stallion® Series Clamped Metal AODD Pump T15

Applications
• Dewatering
• Waste Transfer
• Skimmer Systems
• Solid-Laden Fluid Transfer
