Image shown may not be actual product
08-15849

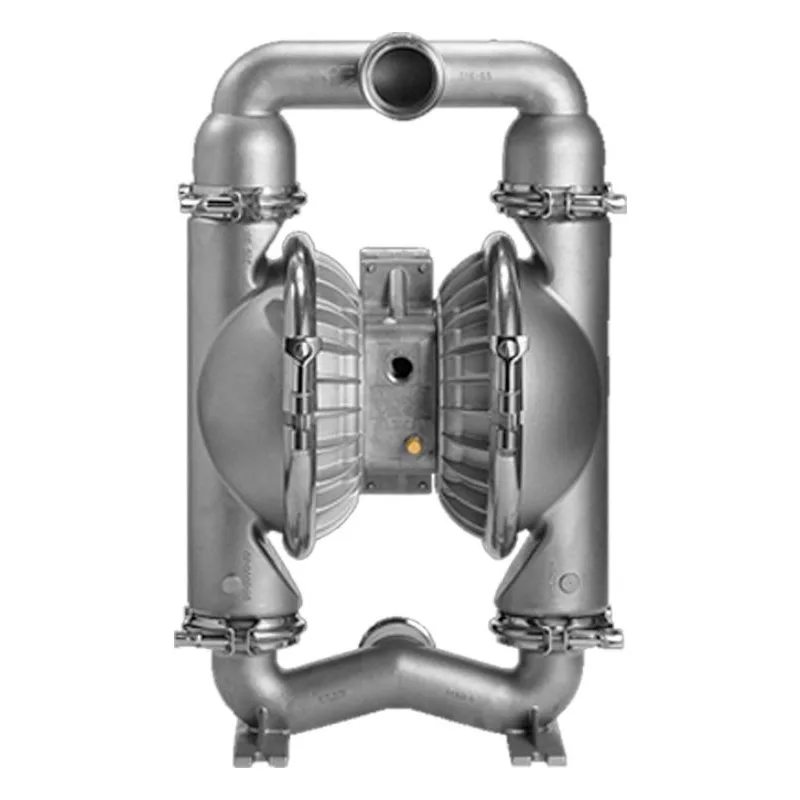

Wilden 08-15849 Saniflo FDA 2-1/2" Clamped Metal Air Operated Double Diaphragm Pump (XPS8), ATEX Compliant, MODEL: XPS8/SZAAA/LEL/TF/STF/0070. 64 mm (2-1/2") Tri-Clamp Suction & Discharge. Stainless Steel Wetted Parts & Seats, Aluminum Air Chamber, Center Block & Air Valve, PTFE O-Rings & Balls, PTFE (EPDM Backed) Reduced-Stroke IPD Diaphragms. 04-9993-99 ADS Repair Kit, 08-9804-55-214 Wet End Kit, 71-7565 SD Dampener, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.
$8,868.60
- Best Price Guarantee!
- 1773PumpPoints
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Series Info
- Reviews
- Literature/Manuals
08-15849
Wilden 08-15849 Saniflo FDA 2-1/2" Clamped Metal Air Operated Double Diaphragm Pump (XPS8), ATEX Compliant, MODEL: XPS8/SZAAA/LEL/TF/STF/0070. 64 mm (2-1/2") Tri-Clamp Suction & Discharge. Stainless Steel Wetted Parts & Seats, Aluminum Air Chamber, Center Block & Air Valve, PTFE O-Rings & Balls, PTFE (EPDM Backed) Reduced-Stroke IPD Diaphragms. 04-9993-99 ADS Repair Kit, 08-9804-55-214 Wet End Kit, 71-7565 SD Dampener, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.
| Air Chamber | Aluminum |
| Air Distribution System | Pro-Flo Shift |
| Air Inlet | 3/4" FNPT |
| Center Block | Aluminum |
| Connection Type | Tri-Clamp |
| Construction | Clamped |
| Diaphragm | PTFE (EPDM Backed) |
| Diaphragm Type | Reduced-Stroke IPD |
| Discharge NPT (Inches) | 64 mm (2-1/2") |
| Material | Metal |
| Maximum Working Pressure (PSIG) | 8.6 bar (125 psi) |
| Model Number | XPS8/SZAAA/LEL/TF/STF/0070 |
| Model Series | XPS8 |
| Outer Piston | No Outer Piston |
| Product Notes | 04-9993-99 ADS Repair Kit, 08-9804-55-214 Wet End Kit, 71-7565 SD Dampener, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. |
| Size | 2" |
| Solids (Inches) | 6.4 mm (1/4") |
| Special Configuration | 0070 Saniflo FDA |
| Suction NPT (Inches) | 64 mm (2-1/2") |
| Type | ATEX |
| Valve Balls | PTFE |
| Valve / Seat / O-Ring | Aluminum Air Valve / Stainless Steel Seat / PTFE O-Rings |
| Valve Type | Ball Valve |
| Wetted Parts | Stainless Steel |
Saniflo FDA Pumps (Hygienic & Sanitary) Information
| Product Type |
|---|
| Diaphragm Pumps, Self Priming |
| Features & Benefits |
| Wilden Saniflo™ FDA Series Pumps Wilden FDA Series pumps not only possess the versatility to safely and efficiently pump a wide range of viscosities and shear-sensitive products, they are available in various materials of construction that meet strict FDA guidelines established for sanitary process applications. FDA Series pumps comply with all FDA, CE, 1935/2004/EC and ATEX requirements. These pumps ensure reliability and ease of use and maintenance by COP capabilities. With simple installation and robust durability, FDA Series pumps incorporate a straight flow-through design, large solids passage, Triclamp-style fittings and efficiencies to ensure process success. The wetted path material is 316 stainless steel with Ra 5.1 μm (200 μ-in) surface finish for ease of cleaning. |
