08-15668

Image shown may not be actual product

08-15668

0 reviews

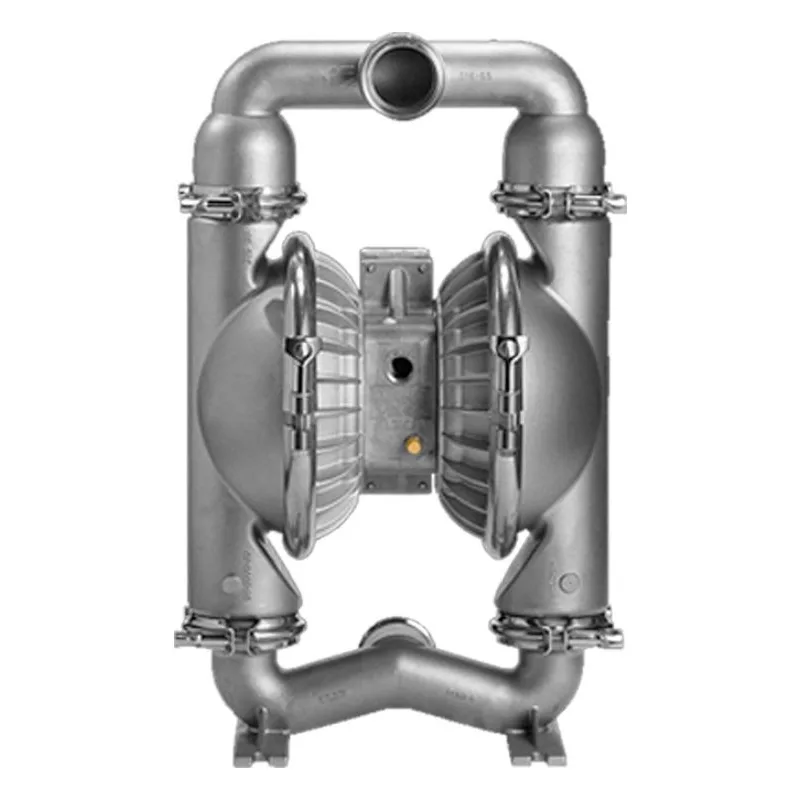

Wilden 08-15668 Saniflo FDA 2-1/2" Clamped Metal Air Operated Double Diaphragm Pump (PS8), MODEL: PS8/SSNPP/TWS/EP/EP/0080. 723 lpm (191 gpm) Max Flow, 64 mm (2-1/2") Tri-Clamp Suction & Discharge. Stainless Steel Wetted Parts & Outer Piston, Nickel-Plated Aluminum Air Chamber, Polypropylene Center Block & Air Valve, EPDM Seats & Balls, PTFE w/Wil-Flex Backup Full Stroke IPD Diaphragms. 04-9993-20 ADS Repair Kit Available to order. A PSG Dover Brand Product.

$7,595.10

Best Price Guarantee!
1518PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: 08-15668 | Model #: PS8/SSNPP/TWS/EP/EP/0080

Overview
Series Info
Reviews
Literature/Manuals

08-15668

Air Chamber	Nickel-Plated Aluminum
Air Distribution System	Pro-Flo Shift
Air Inlet	3/4" FNPT
Center Block	Polypropylene
Connection Type	Tri-Clamp
Construction	Clamped
Diaphragm	PTFE w/Wil-Flex Backup
Diaphragm Type	Full Stroke IPD
Discharge NPT (Inches)	64 mm (2-1/2")
Discharge Volume Per Cycle	2.4 L (0.64 gal)
Material	Metal
Maximum Flow (GPM)	723 lpm (191 gpm)
Maximum Working Pressure (PSIG)	8.6 bar (125 psi)
Max Suction Lift	6.3 m (20.7') Dry, 8.6 m (28.4') Wet

Model Number	PS8/SSNPP/TWS/EP/EP/0080
Model Series	PS8
Outer Piston	Stainless Steel
Product Notes	04-9993-20 ADS Repair Kit Available to order.
Size	2"
Solids (Inches)	6.4 mm (1/4")
Special Configuration	0080 Tri-clamp fittings ONLY
Suction NPT (Inches)	64 mm (2-1/2")
Valve Balls	EPDM
Valve / Seat / O-Ring	Polypropylene Air Valve / EPDM Seat
Valve Type	Ball Valve
Wetted Parts	Stainless Steel

Saniflo FDA Pumps (Hygienic & Sanitary) Information

Product Type
Diaphragm Pumps, Self Priming
Features & Benefits
Wilden Saniflo™ FDA Series Pumps Wilden FDA Series pumps not only possess the versatility to safely and efficiently pump a wide range of viscosities and shear-sensitive products, they are available in various materials of construction that meet strict FDA guidelines established for sanitary process applications. FDA Series pumps comply with all FDA, CE, 1935/2004/EC and ATEX requirements. These pumps ensure reliability and ease of use and maintenance by COP capabilities. With simple installation and robust durability, FDA Series pumps incorporate a straight flow-through design, large solids passage, Triclamp-style fittings and efficiencies to ensure process success. The wetted path material is 316 stainless steel with Ra 5.1 μm (200 μ-in) surface finish for ease of cleaning.
