04-11119

Image shown may not be actual product

04-11119

0 reviews

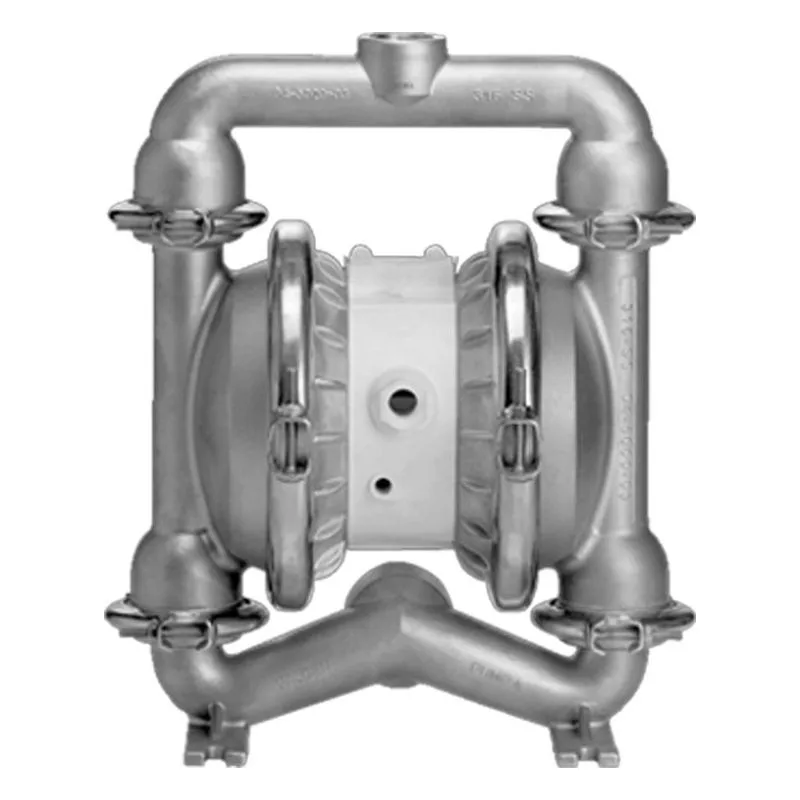

Wilden 04-11119 Saniflo FDA 2" Clamped Metal Air Operated Double Diaphragm Pump (P4), MODEL: P4/SSAPP/TSU/TF/STF/0070. 295 lpm (78 gpm) Max Flow, 51 mm (2") Tri-Clamp Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston & Seats, Polypropylene Center Block & Air Valve, Aluminum Air Chamber, PTFE O-Rings & Balls, PTFE w/Saniflex Backup Reduced-Stroke Diaphragms. 04-9985-20 ADS Repair Kit, 04-9804-55-203 Wet End Kit, 71-7565 SD Dampener, 01-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

$6,477.30

Best Price Guarantee!
1295PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: 04-11119 | Model #: P4/SSAPP/TSU/TF/STF/0070

Overview
Series Info
Reviews
Literature/Manuals

04-11119

Air Chamber	Aluminum
Air Distribution System	Pro-Flo
Air Inlet	1/2" FNPT
Center Block	Polypropylene
Connection Type	Tri-Clamp
Construction	Clamped
Diaphragm	PTFE w/Saniflex Backup
Diaphragm Type	Reduced-Stroke
Discharge NPT (Inches)	51 mm (2")
Discharge Volume Per Cycle	0.53 L (0.14 gal)
Material	Metal
Maximum Flow (GPM)	295 lpm (78 gpm)
Maximum Working Pressure (PSIG)	8.6 bar (125 psi)
Max Suction Lift	3.7 m (12') Dry, 8.5 m (28') Wet

Model Number	P4/SSAPP/TSU/TF/STF/0070
Model Series	P4
Outer Piston	Stainless Steel
Product Notes	04-9985-20 ADS Repair Kit, 04-9804-55-203 Wet End Kit, 71-7565 SD Dampener, 01-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order.
Size	1-1/2"
Solids (Inches)	4.8 mm (3/16")
Special Configuration	0070 Saniflo FDA
Suction NPT (Inches)	51 mm (2")
Valve Balls	PTFE
Valve / Seat / O-Ring	Polypropylene Air Valve / Stainless Steel Seat / PTFE O-Rings
Valve Type	Ball Valve
Wetted Parts	Stainless Steel

Saniflo FDA Pumps (Hygienic & Sanitary) Information

Product Type
Diaphragm Pumps, Self Priming
Features & Benefits
Wilden Saniflo™ FDA Series Pumps Wilden FDA Series pumps not only possess the versatility to safely and efficiently pump a wide range of viscosities and shear-sensitive products, they are available in various materials of construction that meet strict FDA guidelines established for sanitary process applications. FDA Series pumps comply with all FDA, CE, 1935/2004/EC and ATEX requirements. These pumps ensure reliability and ease of use and maintenance by COP capabilities. With simple installation and robust durability, FDA Series pumps incorporate a straight flow-through design, large solids passage, Triclamp-style fittings and efficiencies to ensure process success. The wetted path material is 316 stainless steel with Ra 5.1 μm (200 μ-in) surface finish for ease of cleaning.
