01-11255

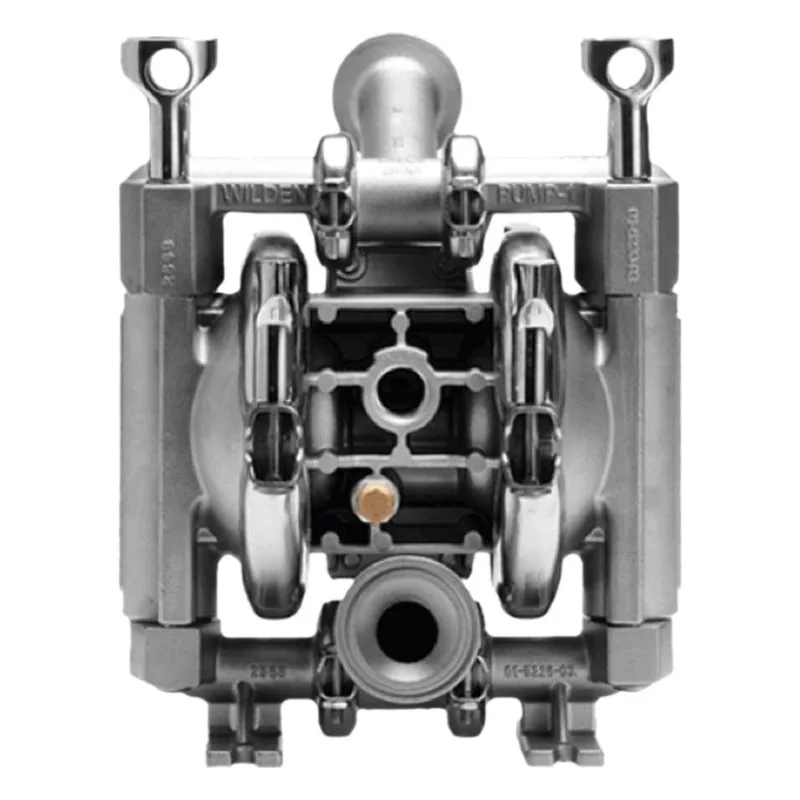

Image shown may not be actual product

01-11255

0 reviews

Wilden 01-11255 Saniflo FDA 1" Clamped Metal Air Operated Double Diaphragm Pump (XPS1), ATEX Compliant, MODEL: XPS1/SSAAA/TEU/TF/STF/0070. 59.8 lpm (15.8 gpm) Max Flow, 25 mm (1") Tri-Clamp Suction & Discharge. Stainless Steel Wetted Parts, Outer Piston & Seats, Aluminum Air Chamber, Center Block & Air Valve, PTFE O-Rings & Balls, PTFE (w/EPDM Backup Ring) Reduced-Stroke Diaphragm. 01-9993-99 ADS Repair Kit, 01-9804-55-204 Wet End Kit, 66-002 SD Dampener, 66-002 ISD Dampener, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

$3,253.50

Best Price Guarantee!
650PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: 01-11255 | Model #: XPS1/SSAAA/TEU/TF/STF/0070

Overview
Series Info
Reviews
Literature/Manuals

01-11255

Air Chamber	Aluminum
Air Distribution System	Pro-Flo Shift
Air Inlet	1/2" FNPT
Center Block	Aluminum
Connection Type	Tri-Clamp
Construction	Clamped
Diaphragm	PTFE w/EPDM Backup
Diaphragm Type	Reduced-Stroke
Discharge NPT (Inches)	25 mm (1")
Discharge Volume Per Cycle	0.10 L (0.026 gal)
Material	Metal
Maximum Flow (GPM)	59.8 lpm (15.8 gpm)
Maximum Working Pressure (PSIG)	8.6 bar (125 psi)
Max Suction Lift	4.3 m Dry (14.2’), 9.7 m Wet (31.7’)

Model Number	XPS1/SSAAA/TEU/TF/STF/0070
Model Series	XPS1
Outer Piston	Stainless Steel
Product Notes	01-9993-99 ADS Repair Kit, 01-9804-55-204 Wet End Kit, 66-002 SD Dampener, 66-002 ISD Dampener, 04-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order.
Size	1/2"
Solids (Inches)	1.6 mm (1/16")
Special Configuration	0070 Saniflo FDA
Suction NPT (Inches)	25 mm (1")
Type	ATEX
Valve Balls	PTFE
Valve / Seat / O-Ring	Aluminum Air Valve / Stainless Steel Seat / PTFE O-Rings
Valve Type	Ball Valve
Wetted Parts	Stainless Steel

Saniflo FDA Pumps (Hygienic & Sanitary) Information

Product Type
Diaphragm Pumps, Self Priming
Features & Benefits
Wilden Saniflo™ FDA Series Pumps Wilden FDA Series pumps not only possess the versatility to safely and efficiently pump a wide range of viscosities and shear-sensitive products, they are available in various materials of construction that meet strict FDA guidelines established for sanitary process applications. FDA Series pumps comply with all FDA, CE, 1935/2004/EC and ATEX requirements. These pumps ensure reliability and ease of use and maintenance by COP capabilities. With simple installation and robust durability, FDA Series pumps incorporate a straight flow-through design, large solids passage, Triclamp-style fittings and efficiencies to ensure process success. The wetted path material is 316 stainless steel with Ra 5.1 μm (200 μ-in) surface finish for ease of cleaning.
