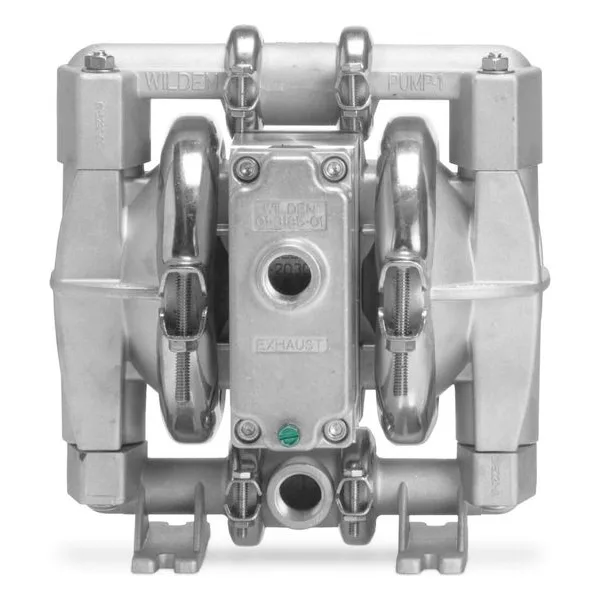

Wilden’s 13mm (1/2") Pro-Flo® series original air-operated double-diaphragm (AODD) pump design, featuring clamped metal pumps, provides a straightforward and robust solution for general industrial applications. These pumps are designed with maintenance ease in mind, allowing simple installation and quick serviceability—requiring only a single tool for disassembly and reassembly. Over time, countless Jim Wilden clamped aluminum and staibless steel pumps have reliably moved billions of gallons of fluid annually.
Features & Benefits
• NPT or BSPT threaded inlet/discharge liquid connections for quick disconnect / connect
• Featuring the energy-efficient Pro-Flo® SHIFT ADS
• Greater flow - more gallons pumped per SCFM
• Reduced air consumption and kilowatt usage
• Decades of proven performance
• Clamped connections for faster maintenance
• Low cost
• Simple installation
• Ease of operation and maintenance
Wetted Housings - Materials
Aluminum - 6 kg (13 lb)
Stainless Steel - 9 kg (20 lb)
Alloy C - 9.5 kg (21 lb)
Non-Wetted Housings - Material
Center Section / Center Block -Aluminum
Air Valve - Aluminum
Diaphragm Pump Specifications:
- Air Inlet: 1/2" FNPT
- Liquid Inlet: 13 mm (1/2")
- Liquid Discharge: 13 mm (1/2")
- Connection Type: NPT/BSPT (Threaded)
- Maximum Suction Lift Capability:
- Rubber – 5.9 m (19.3') Dry, 9.8 m (32.3') Wet
- TPE – 5.7 m (18.7') Dry, 8.3 m (27.2') Wet
- PTFE – 4.3 m (14.2') Dry, 9.7 m (31.7') Wet
- Maximum Flow Rate:
- Rubber – 60.2 lpm (15.9 gpm)
- TPE – 60.2 lpm (15.9 gpm)
- PTFE – 59.8 lpm (15.8 gpm)
- Maximum Pressure: 8.6 bar (125 psi)
- Maximum Diameter Solids: 1.6 mm (1/16")
- *Displacement Per Stroke*:
- Rubber – 0.10 L (0.026 gal)
- TPE – 0.10 L (0.026 gal)
- PTFE – 0.10 L (0.026 gal)
- * 1 cycle = 2 strokes
Elastomer Options
Buna-N | -12°C to 82°C (10°F to 180°F)
EPDM | -51°C to 138°C (-60°F to 280°F)
FKM | -40°C to 177°C (-40°F to 350°F)
Geolast® | -40°C to 82°C (-40°F to 180°F)
Neoprene |-18°C to 93°C (0°F to 200°F)
PTFE* | 4°C to 104°C (40°F to 220°F)
Polyurethane | -12°C to 66°C (10°F to 150°F)
Saniflex™ | -29°C to 104°C (-20°F to 220°F)
Wil-Flex™ | -40°C to 107°C (-40°F to 225°F)
* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only
