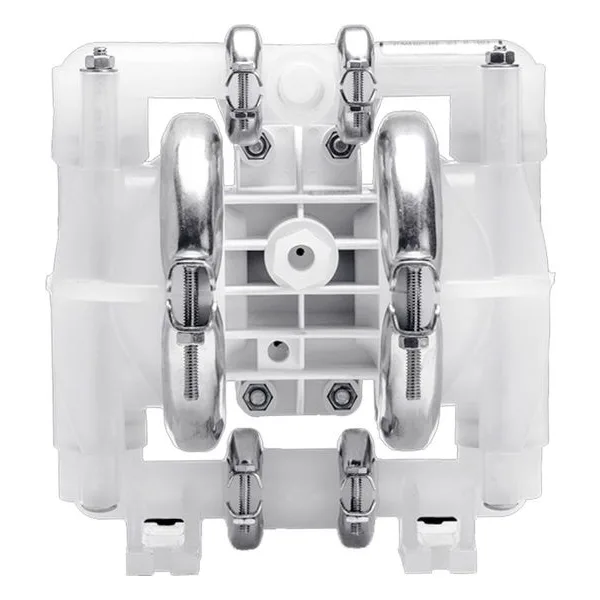

1/2" (13mm) Clamped Plastic Pro-Flo (P1)

1/2" (13mm) Clamped Plastic Pro-Flo (P1)

When Jim Wilden introduced the 13mm (1/2") Pro-Flo® series plastic pump series to his product lineup, he opted for a clamped design—a choice informed by his expertise. These plastic pumps mirror the advantages of their metal counterparts, offering a straightforward and robust construction ideal for chemical applications. Designed with maintenance ease in mind, these clamped plastic pumps are simple to install and can be disassembled and reassembled using just one tool. Over time, countless Wilden clamped plastic pumps have reliably moved billions of gallons of fluid annually.

Features & Benefits
• FNPT threaded inlet/discharge liquid connections
• Rotatable inlet and discharge for flexibility
• Decades of proven performance
• Clamped connections for faster maintenance
• Low cost
• Simple installation
• Ease of operation and maintenance

Wetted Housings - Materials
Polypropylene - 4.0 kg (9 lb)
PVDF - 5.0 kg (11 lb)
PTFE PFA - 6 kg (12 lb)

Non-Wetted Housings - Materials
Center Section - Polypropylene, Acetal
Air Valve - Polypropylene, Acetal

Diaphragm Pump Specifications:

  • Air Inlet: 1/4" FNPT
  • Liquid Inlet: 13 mm (1/2")
  • Liquid Discharge: 13 mm (1/2")
  • Connection Type: NPT/BSPT (Threaded)
  • Maximum Suction Lift Capability:
    • Rubber – 6.1 m (20') Dry, 9.5 m (31') Wet
    • TPE – 5.8 m (19') Dry, 9.8 m (32') Wet
    • PTFE – 5.18 m (17') Dry, 9.8 m (32') Wet
  • Maximum Flow Rate:
    • Rubber – 56 lpm (14.8 gpm)
    • TPE – 56.8 lpm (15 gpm)
    • PTFE – 53.4 lpm (14.1 gpm)
  • Maximum Pressure: 8.6 bar (125 psi)
  • Maximum Diameter Solids: 1.6 mm (1/16'')
  • *Displacement Per Stroke:
    • Rubber – 0.11 L (0.029 gal)
    • TPE – 0.11 L (0.030 gal)
    • PTFE – 0.10 L (0.027 gal)
    • * 1 cycle = 2 strokes

Elastomer Options
Buna-N | -12°C to 82°C (10°F to 180°F)
EPDM | -51°C to 138°C (-60°F to 280°F)
FKM | -40°C to 177°C (-40°F to 350°F)
Neoprene | -18°C to 93°C (0°F to 200°F)
PTFE* | 4°C to 104°C (40°F to 220°F)
Polyurethane | -12°C to 66°C (10°F to 150°F)
Saniflex™ | -29°C to 104°C (-20°F to 220°F)
Wil-Flex™ | -40°C to 107°C (-40°F to 225°F)
* 4°C to 149°C (40°F to 300°F) - 13 mm (1/2") and 25 mm (1") models only.

Conservation of energy and the maximum mean time between repair (MTBR) for your Air-Operated Double-Diaphragm (AODD) pump with the simple yet durable Wilden® Pro-Flo® Air Distribution System (ADS). The Pro-Flo excels in a wide variety of industrial pumping applications, such as:

• Chemical
• Paint & Coatings
• Mining
• Oil & Gas
• Water & Wastewater
• Liquid Terminals
• Process

Search Results

(48 results)
Sort & Filter 2
Series: 1/2" (13mm) Clamped Plastic Pro-Flo (P1) Remove FilterManufacturer: Wilden Remove FilterClear all
  • 01-2654

    01-2654

    Wilden

    Wilden 01-2654 Pro-Flo 1/2" (13mm) Clamped Plastic Air Operated Double Diaphragm AODD Pump (P1), MODEL: P1/PPPPP/TNU/TF/KTV. 53.4 lpm (14.1 gpm) Max Flow, 13 mm (1/2") NPT Suction & Discharge. Polypropylene Wetted Parts, Outer Piston, Air Chamber, Center Block & Air Valve, PVDF Seat, PTFE-Encapsulated FKM O-Rings, PTFE w/Neoprene Backup Reduced-Stroke Diaphragm, PTFE Balls. 01-9985-20 ADS Repair Kit, 01-9805-55 Wet End Kit, 72-7000 SD Dampener, 00-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    $1,063.80

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
  • 01-0110

    01-0110

    Wilden

    Wilden 01-0110 Pro-Flo 1/2" (13mm) Clamped Plastic Air Operated Double Diaphragm AODD Pump (P1), MODEL: P1/PPPPP/WFS/WF/KWF. 56.8 lpm (15 gpm) Max Flow, 13 mm (1/2") NPT Suction & Discharge. Polypropylene Wetted Parts, Outer Piston, Air Chamber, Center Block & Air Valve, PVDF Seat, Wil-Flex O-Rings, Traditional Diaphragms & Balls. 01-9985-20 ADS Repair Kit, 01-9805-58 Wet End Kit, 72-7015 SD Dampener, 00-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    $786.60

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
  • 01-2664

    01-2664

    Wilden

    Wilden 01-2664 Pro-Flo 1/2" (13mm) Clamped Plastic Air Operated Double Diaphragm AODD Pump (P1), MODEL: P1/PPPPP/WFS/TF/KWF. 56.8 lpm (15 gpm) Max Flow, 13 mm (1/2") NPT Suction & Discharge. Polypropylene Wetted Parts, Outer Piston, Air Chamber, Center Block & Air Valve, PVDF Seat, Wil-Flex O-Rings & Traditional Diaphragms, PTFE Balls. 01-9985-20 ADS Repair Kit Available to order. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    $807.30

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
  • 01-2673

    01-2673

    Wilden

    Wilden 01-2673 Pro-Flo 1/2" (13mm) Clamped Plastic Air Operated Double Diaphragm AODD Pump (P1), MODEL: P1/PPPPP/WFS/WF/KTV. 56.8 lpm (15 gpm) Max Flow, 13 mm (1/2") NPT Suction & Discharge. Polypropylene Wetted Parts, Outer Piston, Air Chamber, Center Block & Air Valve, PVDF Seat, PTFE-Encapsulated FKM O-Rings, Wil-Flex Traditional Diaphragms & Balls. 01-9985-20 ADS Repair Kit Available to order. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    $855.00

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
  • 01-10070

    01-10070

    Wilden

    Wilden 01-10070 Pro-Flo 1/2" (13mm) Clamped Plastic Air Operated Double Diaphragm AODD Pump (P1), MODEL: P1/PPPPP/FSS/FS/KFS. 56.8 lpm (15 gpm) Max Flow, 13 mm (1/2") NPT Suction & Discharge. Polypropylene Wetted Parts, Outer Piston, Air Chamber, Center Block & Air Valve, PVDF Seat, Saniflex O-Rings, Sanitary Diaphragm & Balls. 01-9985-20 ADS Repair Kit, 01-9805-56 Wet End Kit, 72-7160 SD Dampener, 00-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    $781.20

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
  • 01-10301

    01-10301

    Wilden

    Wilden 01-10301 Pro-Flo 1/2" (13mm) Clamped Plastic Air Operated Double Diaphragm AODD Pump (P1), MODEL: P1/PPPPP/TNU/TF/KTV/0480. 53.4 lpm (14.1 gpm) Max Flow, 13 mm (1/2") NPT Suction & Discharge. Polypropylene Wetted Parts, Outer Piston, Air Chamber, Center Block & Air Valve, PVDF Seat, PTFE-Encapsulated FKM O-Rings, PTFE w/Neoprene Backup Reduced-Stroke Diaphragm, PTFE Balls. 01-9985-20 ADS Repair Kit, 01-9805-55 Wet End Kit Available to order. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    $1,196.10

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
  • 01-10561

    01-10561

    Wilden

    Wilden 01-10561 Pro-Flo 1/2" (13mm) Clamped Plastic Air Operated Double Diaphragm AODD Pump (P1), MODEL: P1/PPPPP/EPS/EP/KTV. 56 lpm (14.8 gpm) Max Flow, 13 mm (1/2") NPT Suction & Discharge. Polypropylene Wetted Parts, Outer Piston, Air Chamber, Center Block & Air Valve, PVDF Seat, PTFE-Encapsulated FKM O-Rings, EPDM Traditional Diaphragms & Balls. 01-9985-20 ADS Repair Kit Available to order. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    $855.00

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
  • 01-2655

    01-2655

    Wilden

    Wilden 01-2655 Pro-Flo 1/2" (13mm) Clamped Plastic Air Operated Double Diaphragm AODD Pump (P1), MODEL: P1/PPPPP/BNS/BN/KBN. 56 lpm (14.8 gpm) Max Flow, 13 mm (1/2") NPT Suction & Discharge. Polypropylene Wetted Parts, Outer Piston, Air Chamber, Center Block & Air Valve, PVDF Seat, Buna-N O-Rings, Traditional Diaphragms & Balls. 01-9985-20 ADS Repair Kit, 01-9805-52 Wet End Kit, 72-7012 SD Dampener, 00-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    $750.60

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
  • 01-2659

    01-2659

    Wilden

    Wilden 01-2659 Pro-Flo 1/2" (13mm) Clamped Plastic Air Operated Double Diaphragm AODD Pump (P1), MODEL: P1/KKPPP/TNU/TF/KTV. 53.4 lpm (14.1 gpm) Max Flow, 13 mm (1/2") NPT Suction & Discharge. PVDF Wetted Parts, Outer Piston & Seats, Polypropylene Air Chamber, Center Block & Air Valve, PTFE-Encapsulated FKM O-Rings, PTFE w/Neoprene Backup Reduced-Stroke Diaphragm, PTFE Balls. 01-9985-20 ADS Repair Kit, 01-9805-55 Wet End Kit, 72-7027 SD Dampener, 00-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    $1,776.60

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
  • 01-10876

    01-10876

    Wilden

    Wilden 01-10876 Pro-Flo 1/2" (13mm) Clamped Plastic Air Operated Double Diaphragm AODD Pump (P1), MODEL: P1/PPPPP/TNU/TF/VT. 53.4 lpm (14.1 gpm) Max Flow, 13 mm (1/2") NPT Suction & Discharge. Polypropylene Wetted Parts, Outer Piston, Air Chamber, Center Block & Air Valve, FKM Seat, PTFE w/Neoprene Backup Reduced-Stroke Diaphragm, PTFE Balls. 01-9985-20 ADS Repair Kit Available to order. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    $1,035.00

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
  • 01-10896

    01-10896

    Wilden

    Wilden 01-10896 Pro-Flo 1/2" (13mm) Clamped Plastic Air Operated Double Diaphragm AODD Pump (P1), MODEL: P1/PPPPP/WFS/TF/KWF/0490. 56.8 lpm (15 gpm) Max Flow, 13 mm (1/2") NPT Suction & Discharge. Polypropylene Wetted Parts, Outer Piston, Air Chamber, Center Block & Air Valve, PVDF Seat, Wil-Flex O-Rings & Traditional Diaphragms, PTFE Balls. 01-9985-20 ADS Repair Kit Available to order. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    $807.30

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart

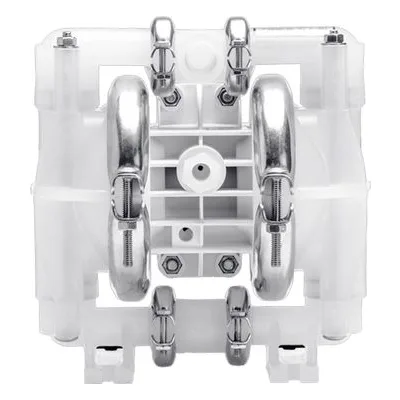

  • 01-10087

    01-10087

    Wilden

    Wilden 01-10087 Pro-Flo 1/2" (13mm) Clamped Plastic Air Operated Double Diaphragm AODD Pump (P1), MODEL: P1/KKPPP/WFS/WF/KWF. 56.8 lpm (15 gpm) Max Flow, 13 mm (1/2") NPT Suction & Discharge. PVDF Wetted Parts, Outer Piston & Seats, Polypropylene Air Chamber, Center Block & Air Valve, Wil-Flex O-Rings, Traditional Diaphragms & Balls. 01-9985-20 ADS Repair Kit, 01-9805-58 Wet End Kit, 72-7051 SD Dampener, 00-8340-99 FRL/FRC, 65-8115-99 Wil-Gard Available to order. A PSG Dover Brand Product.

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed

    $1,499.40

    • Ships via UPS
    • Lead Time
    • Best Price Guaranteed
    Quantity:add to cart
    Show More
